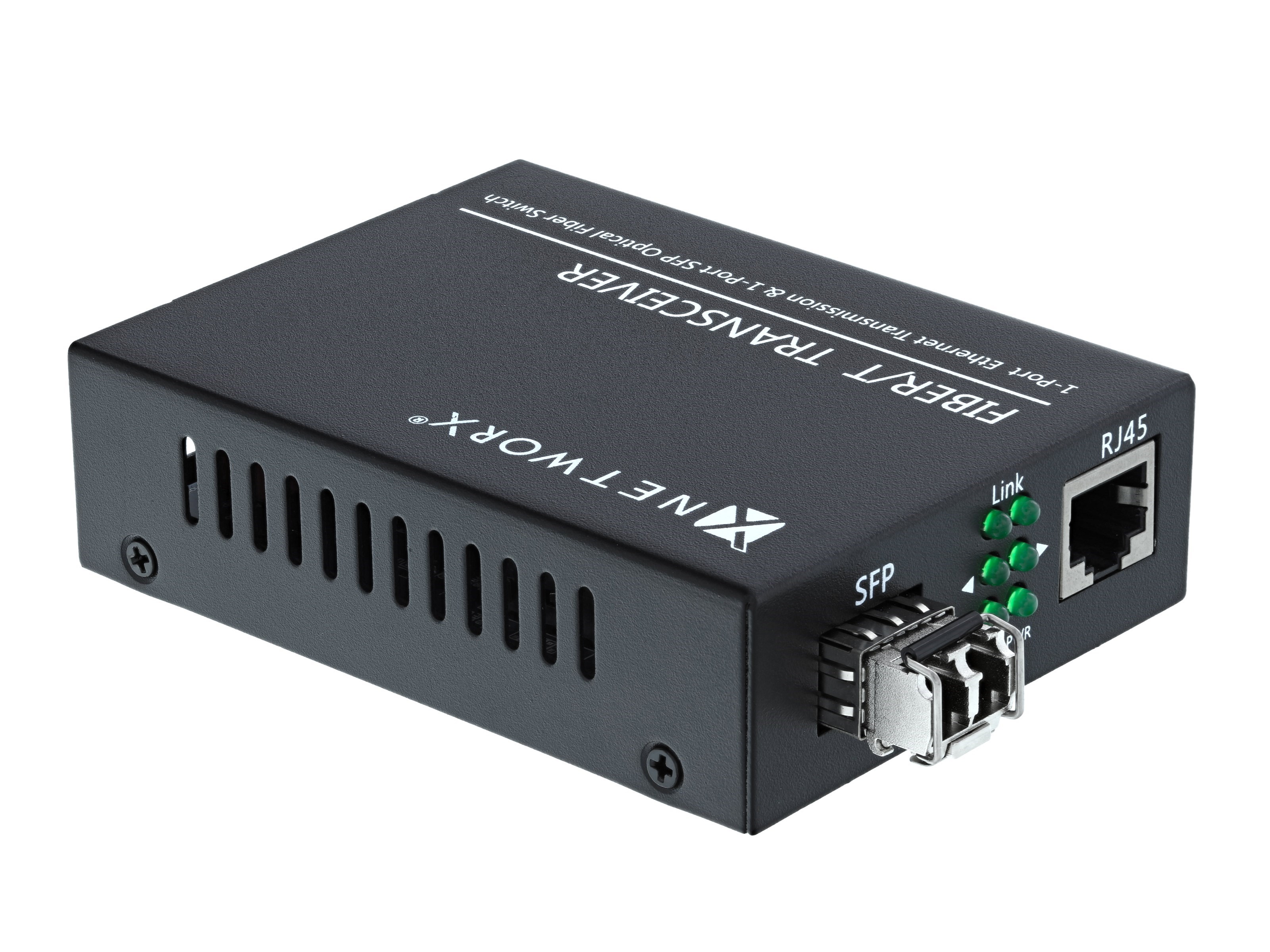

Gigabit Fiber Media Converter - 1000Base-LX, LC Multimode, 550m, 1310nm

by Networx®
Connector A: LC Female
LC Female
SC Female ST Female
Wavelength: 1310nm
1310nm
850nm
This Fiber Transceiver / Media Converter converts data signal between 10/100/1000Base-T and 1000Base-LX Gigabit Ethernet. Maximum transmission distance 550 meters over multimode fiber (50/125 micron, 220m over 62.5/125) @ 1310nm. Duplex LC Connector... read more
SKU: FT-1000MM-LC
GTIN: 00845425008084
Manufacturer: Networx®
In stock
$95.37
Volume Discounts
Quantity 4+ 10+ 50+
Price $93.46 $91.56 $89.65
Description

The Media Converter complies with IEEE 802.3z, IEEE 802.3AB Standards. It is designed to convert data signal between 10/100/1000Base-T and 1000Base-LX fast Ethernet. It supports 10/100/1000Base-T and 1000Base-LX applications. The data signal converted by such high performance media converter can be transmitted up to 550 meters maximum over multimode fiber.

The Converter is equipped with two fiber optic connector ports (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jack and one external power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.

It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications, or Rack-Mounted applications where multiple media converters can be inserted into a rack-mount chassis (up to 16 units), and allowing all the converters to be powered by a single internal power supply.

  • Data Rate (Mbps) - 10/100/1000 with Auto-Negotiation
  • Mode - UTP Half or Full Duplex
  • Optical wavelength - 1310nm
  • Fiber Type (micron) - Multi Mode 50/125, 62.5/125
  • Connector Type - One UTP RJ45, Two LC Fiber
  • Max Distance - 550 meters over 50/125, 220m over 62.5/125
  • Power Supply - External AC-DC Power Adapter, US Standard
  • Size - 95mm x 71mm x 26mm
  • Optical Ouput Power - -10 to -4 dBm
  • Receiving Sensitivity - -17 dBm
  • Saturability - = -3 dBm
Customer Reviews
5 out of 5

Based on 10 reviews
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Name Guest
Great Product
Connector: ST Connector: RJ45 Connector A: ST Female Wavelength: 850nm
I was upgrading existing (old) 10mb Networx media converters to 1gb. It was great that the converters were available with the old style fiber connections. Unplugged the old converters, plugged in the new ones with no issues.
Customer Name Jean
Gigabit Fiber Media Converter
Connector: SC Connector: RJ45 Connector A: SC Female Wavelength: 850nm Verified Purchase
Works great! It does exactly what I expected it to do.
Customer Name Jim
Great little transceiver.
Connector: LC Connector: RJ45 Connector A: LC Female Wavelength: 1310nm Verified Purchase
Works like a champ. Just hook them up and it works. LED status indicators are very helpful. Not sure what the LPF switch is for near the power connector, but the converters work without changing anything.
Customer Name Guest
Very good
Connector: ST Connector: RJ45 Connector A: ST Female Wavelength: 850nm
Used to extend network connectivity to temp trailer over existing fiber to a radio link. worked without a problem.
Customer Name Guest
Great fiber connection between buildings
Connector: ST Connector: RJ45 Connector A: ST Female Wavelength: 850nm
We had a lot of power issues between buildings. These handy little converters and fiber fixed the problems! Thank you!
Products specifications
Color Gray
Connector A LC Female
Connector B RJ45 Female
Fiber Type Multimode
Maximum Data Transfer Rate 1 Gbps
Maximum Transfer Distance 550m
Wavelength 1310nm
Manufacturer Networx®
Input Voltage 85 - 240V AC
Input Current 0.28 A
Output Voltage 5V DC
Output Current 1 A
Auto MDI/MDIX Yes
Warranty 3 Year Warranty
RoHS Compliant Yes
SKU FT-1000MM-LC
GTIN 00845425008084
Weight (Lbs) 0.86
