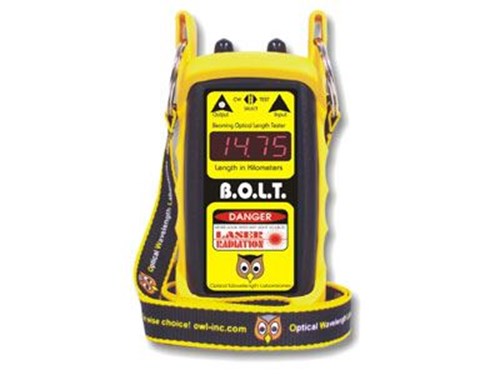

OWL Beaming Optical Length Tester, Tone Generator

by OWL
The BOLT-NL can measure fiber links of up to 25 kilometers, and is accurate to within 2.5 meters. Each unit comes with a protective rubber boot, carrying strap, 9-volt battery, and CD-ROM with operations manual. Read More
SKU: BOLT-NL
$432.98
$575.00
Save 24%
The BOLT-NL uses a "looped" method of measuring fiber length. This is accomplished by looping back two fibers at one end of the fiber run with a patch cord. The round trip time that the light takes to travel through the fibers is converted to length in kilometers, then divided by two to show the length of the fiber cable. There is no need to measure the length of all the fibers; the length measurement can be applied to all fibers in the cable. This method of length testing provides accurate measurements, and saves time and money.

Optical length testers save time by eliminating the need to measure fiber by the cable jacket. Fiber links may also go through multiple cross-connects or have splices in the middle, thereby making jacket markings invalid. Optical measurement of fiber produces accurate results without the need for jacket markings.

Optical measurement also saves time by eliminating the need to estimate the length of the fiber run with a measuring wheel. This method is especially troublesome and inaccurate in networks that traverse walls, are in a star topology, or contain riser cables.

The BOLT-NL measures fiber links of up to 25 kilometers, and is accurate to within ±2.5 meters. Pulsing mode allows for fiber location with fiber identifiers.
Products specifications
Manufacturer Optical Wavelength Laboratories, Inc.
Battery Life Up to 10 hours (9v)
Connector ST
Dimensions 2.75 x 9.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm)
Display Resolution 0.001 km (39.37 inches)
Display Type 4-digit red LED
Fiber Type Singlemode/Multimode
Measurement Accuracy ± 2.5 meters (8.2021 ft.)
Measurement Range 25 km (15.5343 miles)
Output Type FP Laser
Wavelength 1310nm
Weight (Lbs) 1.00
