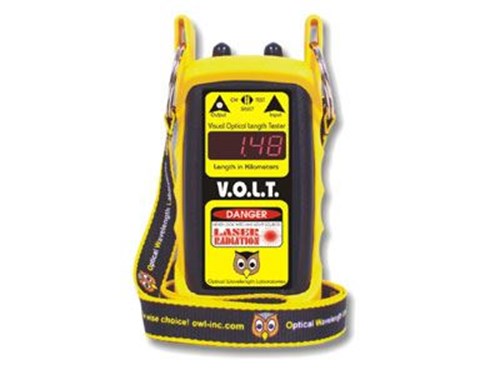

OWL Visual Optical Length Tester, Visual Fault Locator / Finder

by OWL
VOLT functions as any good quality Visual Fault Locator (VFL). However, with the same price range as other VFL's VOLT has the added benefit of doubling as a LOOPING length tester! Many cabling warranties and bids are requiring meter based length tests Read More
SKU: VOLT
$297.44
$311.84 (4% off)
VOLT functions as any good quality Visual Fault Locator (VFL). However, with the same price range as other VFL's VOLT has the added benefit of doubling as a LOOPING length tester! Many cabling warranties and bids are requiring meter based length tests to prove length of links.

VOLT uses 2 fibers and patch cables to establish a length test accurate to +/- 7 feet ! VOLT's VFL functions up to 5 Kilometers (3.1 Miles). Loop length testing functions up to 1.5 Kilometers.

As far as VFL function, VOLT holds its own against the best in the industry. As with any quality VFL VOLT is a precision coupled laser diode! VOLT is not made as a cheap laser light pen is designed! Rather, a multi-million dollar semiconductor machine is used in the manufacture of a special precision coupled micro sized ball lens. This precision coupling allows VOLT to couple maximum red laser light into the tiny connector orifice of fiber optic links up to 5 Kilometers (3.1 Miles) of distance!

  • Connects any of 4 HDMI sources to any of 4 HDMI displays.
  • Toggle between HDMI sources and displays using remote control or front panel pushbuttons
  • Long-distance transmission up to 20m(24 AWG) and 15m(28 AWG)
  • Cascade via other VM0404Hs to provide up to 64 HDMI sources/displays for digital signage systems
  • Supports Dolby True HD and DTS HD Master Audio
  • High video resolution: Up to 1080p and 1920x1200.
  • Power On Detection if one HDMI source is powered off, the VM0404H will automaticallyswitch to the next powered-on device
  • HDMI 1.3b, CEC and HDCP compliant
  • IR remote control, push button, or RS-232 control
  • HDMI 1.3b and HDCP Compliant
  • 1U in size and rack mountable
  • Supports high-resolution video HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080);VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200)
  • HDMI 1.3b and HDCP 1.1 compliant
  • HDMI CEC Compliant
  • Supports 12-bit Deep Color for HDMI formats
  • Supports Dolby True HD and DTS HD Master Audio
  • Up to 60 Hz refresh rate
  • DDC compatible
  • Signaling rates up to 2.25 G bits in support of 1080p display.
  • All-metal casing
  • Rack Mountable

Products specifications
Manufacturer Optical Wavelength Laboratories, Inc.
Battery Life 10 Hours (9V)
Dimensions 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm)
Display Resolution 0.001 km
Display Type 4-digit red LED
Fiber Type Singlemode/Multimode
Measurement Accuracy ± 2.5 meters
Measurement Range 1.5 kilometers
Output Type Red Laser
Output Wavelength 650nm
Weight (Lbs) 1.00
0 / 5 (based on 0 reviews) Be the first to review this product
