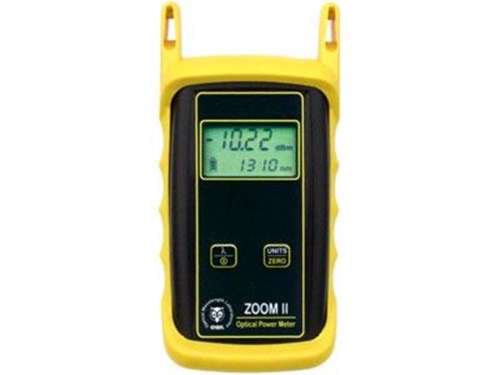

The Silicon ZOOM 2 is one of the world's most economical and precise fiber optic power meters delivering professional performance and a complete feature set for optical loss testing in multimode networks.
The Silicon ZOOM 2 is NIST Traceable at 850nm which makes it ideal for multimode loss testing.
The Silicon ZOOM 2 can store reference values for all of its calibrated wavelengths, and displays optical power as an absolute value in dBm or relative to a user set "zero" reference in dB. It has an intuitive two-button interface, with one button controlling power and wavelength selection, while the other is used to toggle between dBm, dB, and uW, as well as setting the optical reference, or "zero".
Other standard features include a 4-digit, 0.01dB resolution display, battery status indicator, and a 2.5mm Universal detector port that is compatible with FC, ST, SC, DIN, and any other 2.5 mm ferrule connectors!
The following accessories are included with each Silicon ZOOM 2: rugged rubber boot, carrying strap, NIST certificate of calibration, and operations manual on CD.
- 19 inch EIA 310-D compliant mounting
- #10-32 threaded mounting holes
- 3 position adjustable rails
- Keyed wall mounting holes (16" centers) for left, right, or vertical equipment orientation
- Removable cover
- All steel construction
- Durable black texture powder coat finish
- Vented
- Dimensions: 7.5"H x 19.75"W x 21.63"D
- Weight Capacity: 75 lbs.
