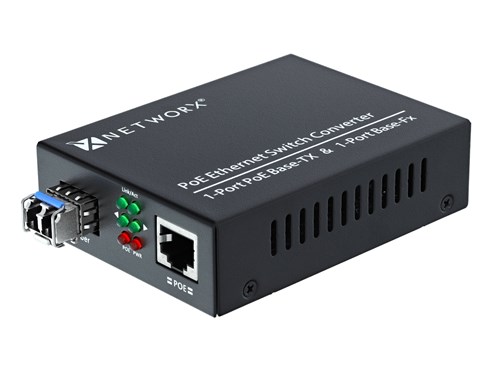

Gigabit Fiber Media Converter - 1000Base-LX, LC Singlemode, 20km, 1310nm, PoE

by Networx®
This PoE Fiber Transceiver / Media Converter is designed to convert data signal between 10/100/1000Base-T and 1000Base-LX Gigabit Ethernet. Maximum transmission distance 20 kilometers over duplex singlemode fiber (9/125 micron) @ 1310nm. Duplex LC Connector... read more
SKU: FT-1000SM20POE-LC
GTIN: 00845425021335
Manufacturer: Networx®
In stock
$217.27
Volume Discounts
Quantity 4+ 10+ 50+
Price $212.92 $208.57 $204.23
Description

This Networx® Fiber Media Converter is classified as Power Sourcing Equipment (PSE) which combine data transfer over a fiber link and providing power to a Powered Device (PD) over CAT5e/CAT6 UTP Cable (Maximum length of 100 meters.)

The Media Converter complies with IEEE 802.3z, IEEE 802.3AB Standards. It is designed to convert data signal between 10/100/1000Base-T and 1000Base-LX Gigabit Ethernet. It supports 10/100/1000Base-T and 1000Base-LX applications. The data signal converted by such high performance media converter can be transmitted up to 20km maximum by fiber-optical cable.

The Converter is equipped with single fiber optic connectors (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jack and one external pwer supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.

It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications, or Rack-Mounted applications where multiple media converters can be inserted into a rack-mount chassis (up to 16 units), and allowing all the converters to be powered by a single internal power supply.

Note: Mode Conditioning cable recommended if running over legacy Multimode Backbone

  • Data Rate (Mbps) - 10/100/1000M with Auto-Negotiation
  • IEEE802.3at / IEEE802.3af PoE PSE compatible
  • Power Output: PoE 48V DC, max 40 watts
  • Mode - UTP Half or Full Duplex
  • Optical wavelength (nm) - 1310
  • Fiber Type (micron) - Single Mode 9/125
  • Connector Type - One UTP, Two LC Fiber
  • Max Distance - 20 km
  • Power Supply - External AC-DC Power Adapter, US Standard
  • Size - 95mm x 71mm x 26mm
  • Optical Output Power - -10 to -6 dBm
  • Optical Receiver Sensitivity - -23 dBm
  • Saturability - = -3 dBm
What are Fiber Optic Media Converters? What are Fiber Optic Media Converters?
Products specifications
Wavelength 1310nm
Manufacturer Networx®
PoE Support Yes
Input Voltage 85 - 240V AC
Input Current 0.28 A
Output Voltage 5V DC
Output Current 1 A
Auto MDI/MDIX Yes
Warranty 3 Year Warranty
RoHS Compliant Yes
Maximum Data Transfer Rate 1 Gbps
Fiber Type Singlemode
Connector B RJ45 Female
Connector A LC Female
Color Gray
Maximum Transfer Distance 20km
SKU FT-1000SM20POE-LC
GTIN 00845425021335
Weight (Lbs) 1.52
