What is the load capacity of the 501 Series wall mount cabinet?

These 501 Series cabinets (9U through 18U) are rated to hold up to 130 lbs of installed equipment, sufficient for most standard networking and AV configurations.

Does the 501 Series cabinet include a cooling fan?

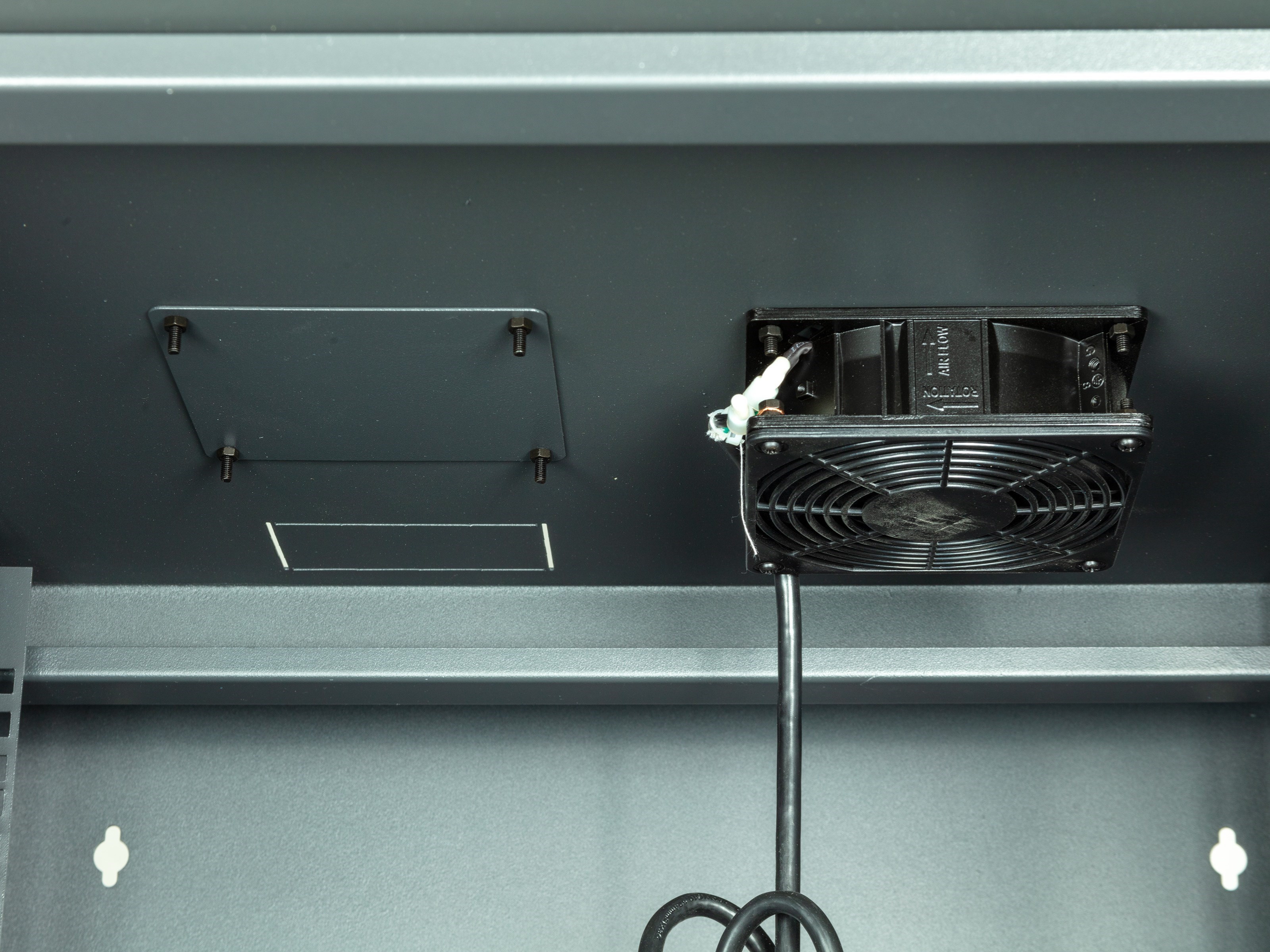

Yes. The 9U through 18U 501 Series cabinets include one preinstalled 80CFM 110V fan to maintain airflow and help keep equipment temperatures in check during normal operation.

Are casters and leveling feet accessories compatible with this cabinet?

Yes. These 501 Series cabinets are Revision 3 and compatible with the optional caster 4-pack (RA-CSTR-4) and leveling feet 4-pack (RA-LVLFT-4) accessories.

How many rack units does this 501 Series 9U cabinet hold?

This cabinet provides 9U of usable rack space. Each rack unit (U) measures 1.75 inches in height, giving approximately 15.75 inches of total usable mounting space for your equipment.

What are the external dimensions of this 501 Series 9U cabinet?

External dimensions are 19.8 inches high by 24 inches wide by 24 inches deep. The internal rack width is 19 inches and the internal usable depth is 19 inches.

What makes the 501 Series different from the other wall mount cabinet series?

The 501 Series features a swing-out frame that opens away from the wall for full rear access to installed equipment, unlike the fixed-frame 101, 102, 201, and 202 Series. It also includes three key lock sets (2 keys each) for the front door and both side panels.

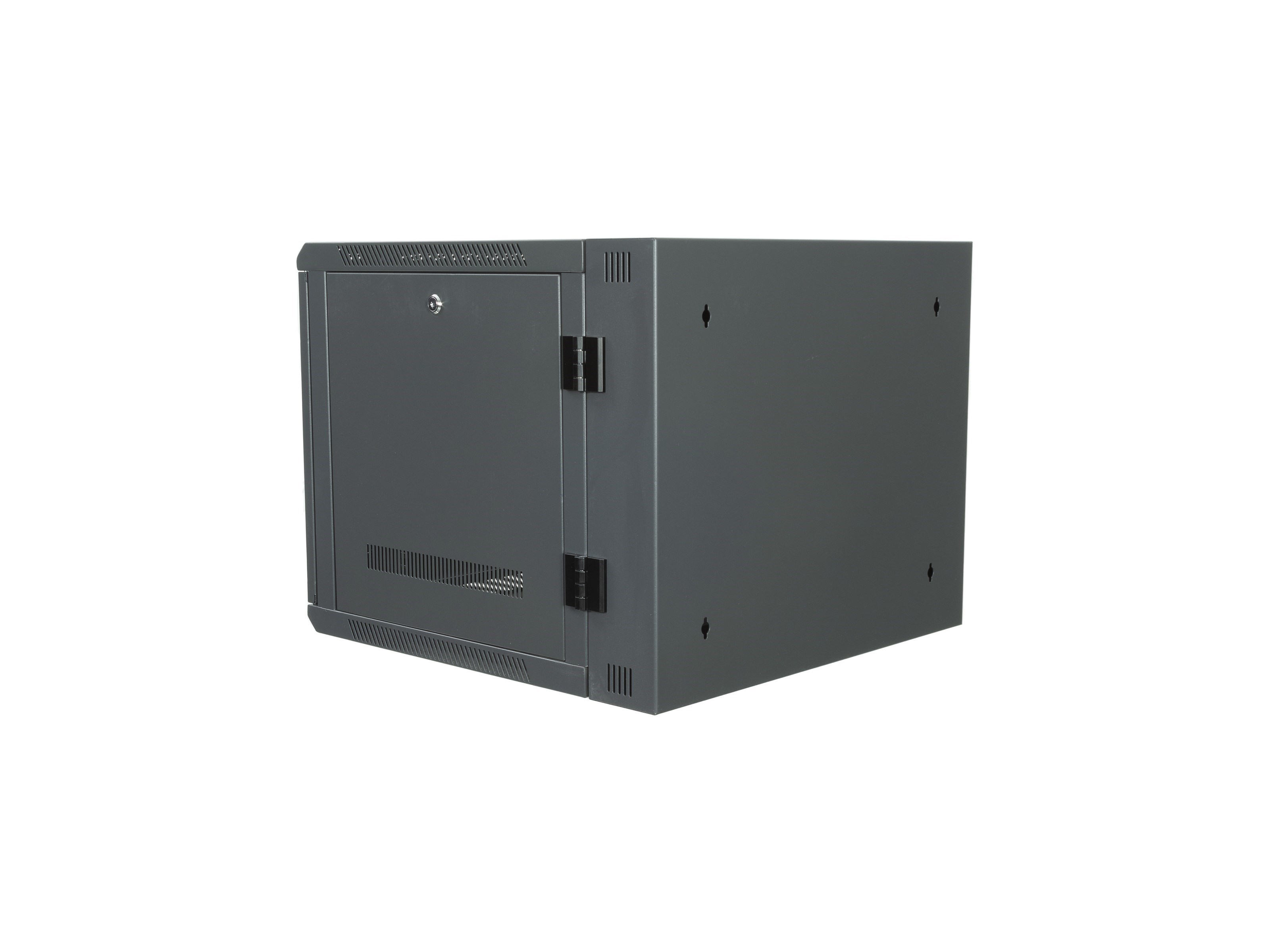

9U Swing Out Wall Mount Cabinet - 501 Series, 24 Inches Deep, Flat Packed

Quantity	2+	10+	25+
Price	$268.83	$263.35	$257.86
Save	2%	4%	6%

Get organized with the 9U 501 Series of Swing Out Wall Mount Cabinets from Networx®. The Swing Out style of cabients allows for the rear door of the cabinet to open up and allow even greater flexibility and access. In addition, the rear swingout panel is reversible and can swing out from the left or right. This cabinet comes equipped with some of the most requested features. Starting with the basics, this Wall Mount Cabinet is constructed with high quality SPCC Cold-Rolled Steel Panels. All Networx® Wall Mount Cabinets come with removable side panels, which include vents to keep equipment cool, to allow for quick access to sensitive networking equipment. All front panels swing out for easy access to loaded network equipment and include a window of 5mm Clear Acrylic. Included with this high quality Wall Mount Cabinet is a single 120mm fan for ideal air movement to keep network equipment cool and running at peak performance. Adjustable rails allow for full customization to allow a variety of networking equipment to fit securely. The rails are punched to allow for the installation of M6 Cage Nuts. The Side Panels, Rear Panel and Front Door are lockable with the included set of keys. Top/Bottom/Rear knockouts for cable entry and exit. All racks are designed to house 19" rack mountable equipment.

12 M6 Cage Nuts
12U Rack Mount Units
External Dimensions: Height 19.8" x Width 24" x Depth 24"
Designed for equipment with a 19" mounting profile
Vented Top/Sides/Front Panels for adequate airflow

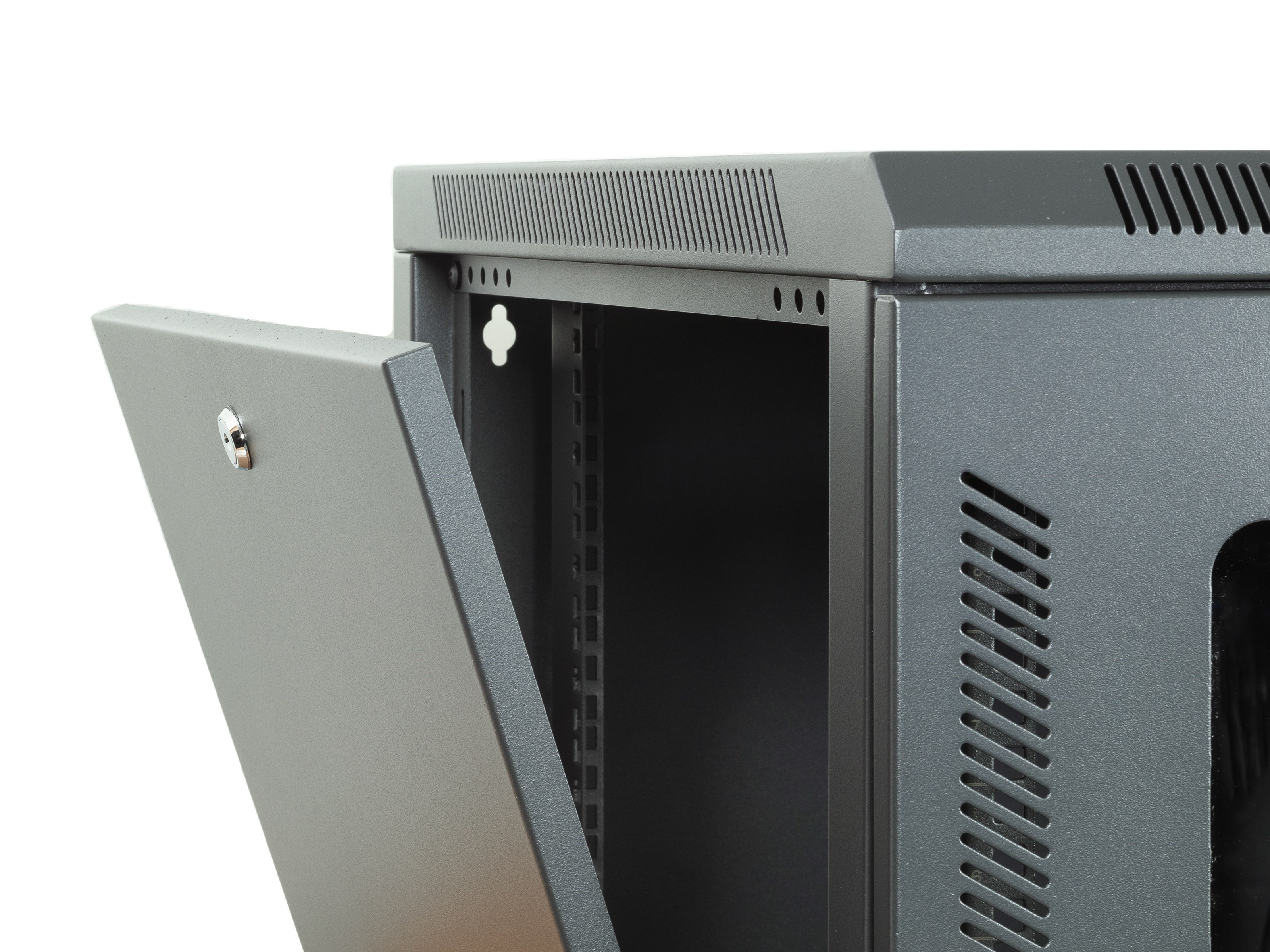

Reversible front door with Clear Acrylic window
Reversible rear panel allows for swingout to the left or right
Removable side panels for easy access to equipment
Front, Rear and Side Panels are lockable with included set of keys
Top/Bottom/Rear Knockouts for easy cable entry and exit
Supports up to 130lbs when secured properly
Flat Packed
Mounting Template Included

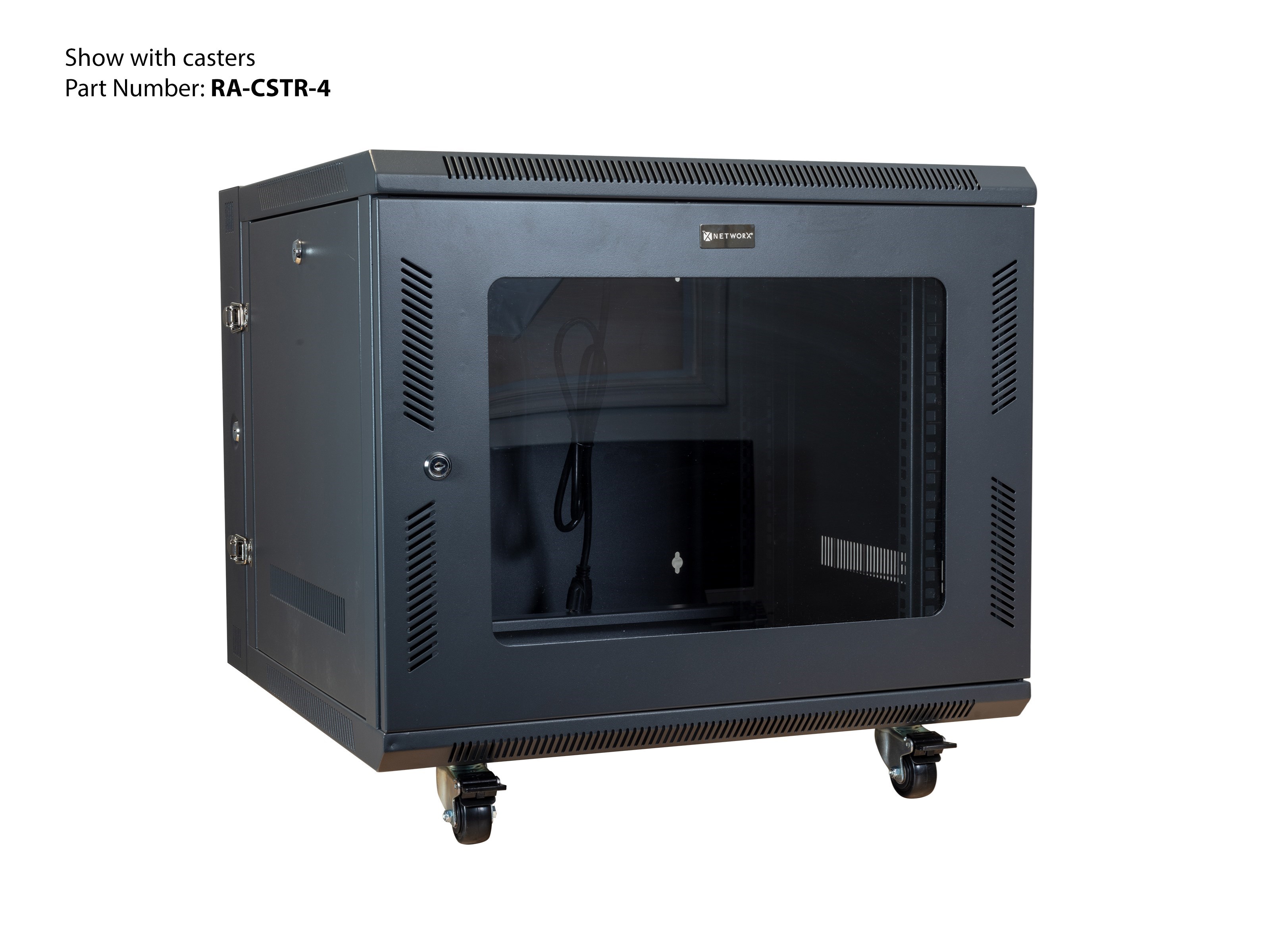

CASTERS AVAILABLE SEE P/N: RA-CSTR-4

Our wall mount network cabinets meet the following standards:

ANSI/EIA RS-310-D
IEC297-2
DIN41491, PART 1
DIN41491, PART 7
GB/3047.2-92

Additional Resources

WMC-S501-9U Spec Sheet

WMC-S501-9U Instructions

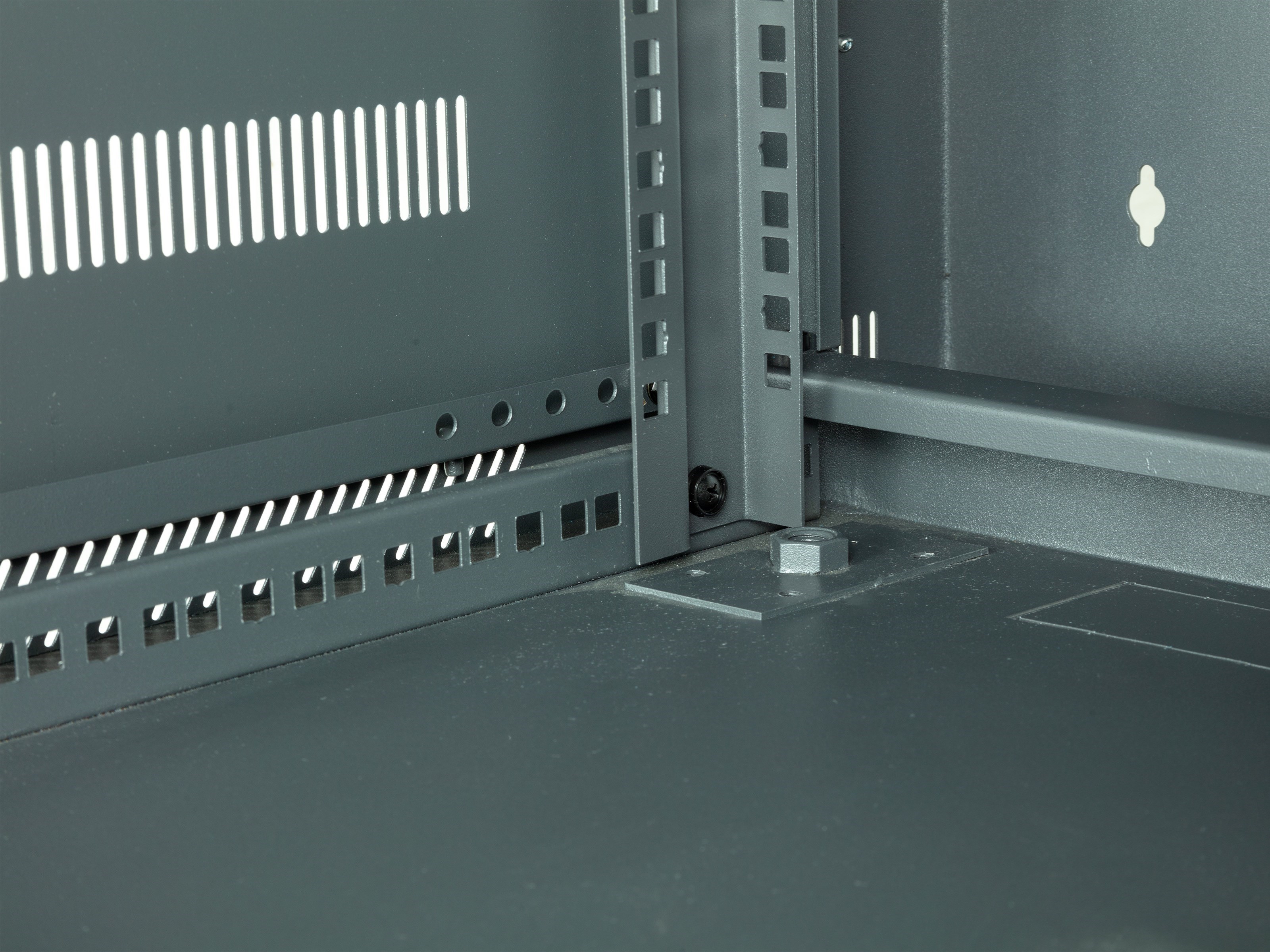

Cage Nut Rails	Front & Rear
Internal Mounting Format	19"
Key Lock Set (2 Keys per Set)	3 Sets
Locking Side Panels	Yes
Manufacturer	Networx
Rack Size Width (Internal)	24" (19")
Reinforced Door Frame	Yes
RMU	9U
Vented Side Panels	Removable

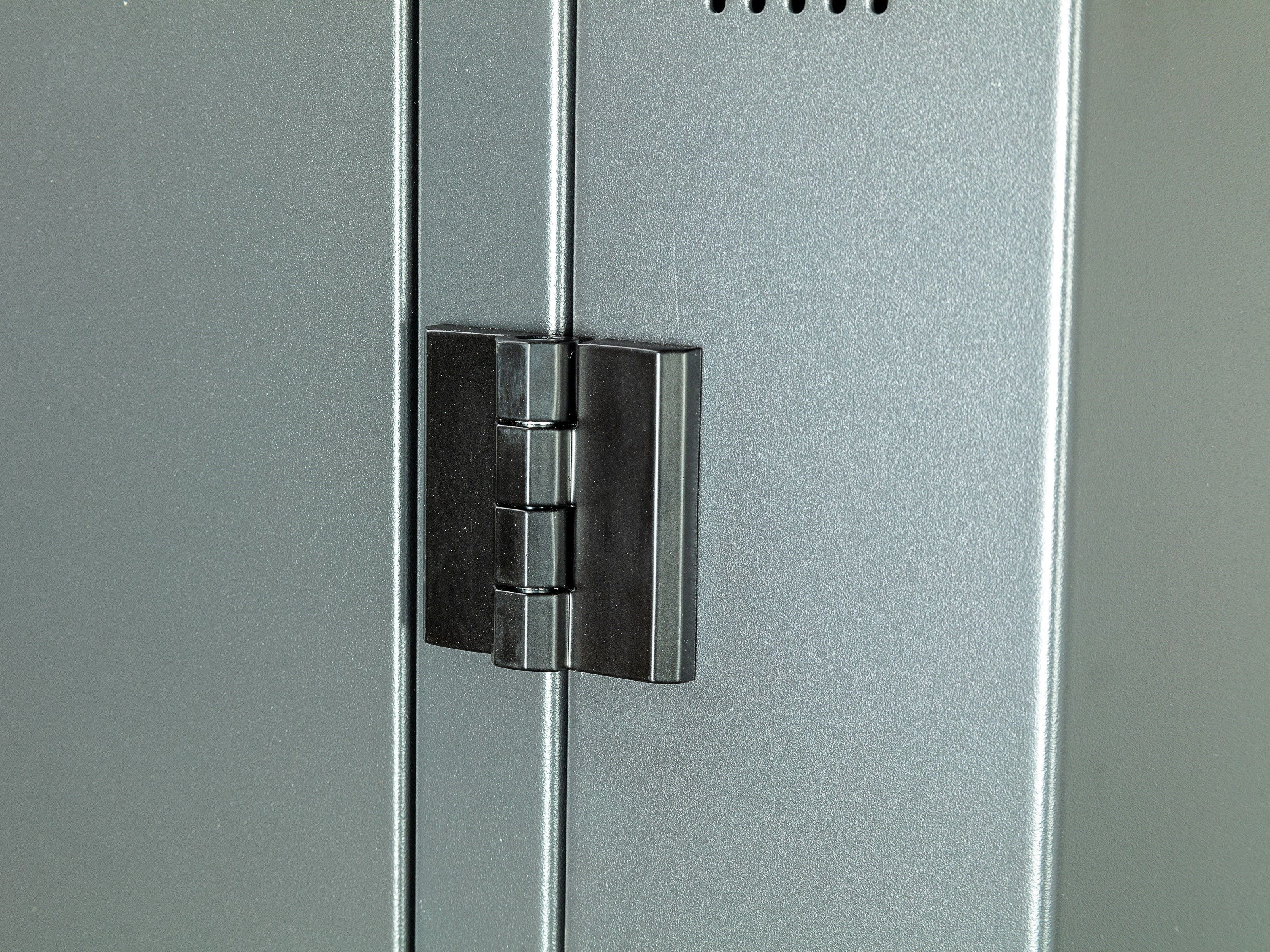

Hinged Swing Out Design	Yes
Rack Size Depth (Internal)	24" (19")
Preinstalled 80CFM 110V Fans	1
Delivery Style	Flat Packed
Door Style	Clear Acrylic
Color	Gray
Revision	Rev. 3
Rack Height (Assembled)	19.8 Inch
Load Capacity	130 lbs
Mount Style	Wall Mount
Structure & Base Fabrication	SPCC Cold-Rolled Steel Sheets
Hinged Swing Out Design	Swing-Out
SKU	WMC-S501-9U
GTIN	00845425024756
Weight (Lbs)	61.00

12U rack review

From: Guest | Date: 2 years ago

RMU: 12U |

Pros:The rack is very nice, sturdy and works great. It has one fan and many keys which is nice. The machining was done well and all holes aligned as they should which made bolting the rack together easy. I will definitely repurchase. Cons: The directions are poor. I spent a lot of time trying to figure out how the rack went together. It took about an hour to put the rack together.
