What makes the 501 Series different from the other wall mount cabinet series?

The 501 Series features a swing-out frame that opens away from the wall for full rear access to installed equipment, unlike the fixed-frame 101, 102, 201, and 202 Series. It also includes three key lock sets (2 keys each) for the front door and both side panels.

What is the load capacity of the 6U 501 Series wall mount cabinet?

The 6U 501 Series cabinet is rated to hold up to 65 lbs of installed equipment, lower than the 130 lb capacity of the 9U through 18U models in this series.

What type of front door does the 6U 501 Series cabinet have?

The 6U 501 Series cabinet features a tempered glass front door, unlike the clear acrylic doors used on the 9U through 18U models in this series.

Can I add caster or leveling feet accessories to the 6U 501 Series cabinet?

No. The 6U 501 Series cabinet is Revision 2 and is not compatible with the caster 4-pack (RA-CSTR-4) or leveling feet 4-pack (RA-LVLFT-4) accessories, which are designed for Revision 3 cabinets only.

How many rack units does this 501 Series 6U cabinet hold?

This cabinet provides 6U of usable rack space. Each rack unit (U) measures 1.75 inches in height, giving approximately 10.5 inches of total usable mounting space for your equipment.

What are the external dimensions of this 501 Series 6U cabinet?

External dimensions are 13.2 inches high by 24 inches wide by 24 inches deep. The internal rack width is 19 inches and the internal usable depth is 19 inches.

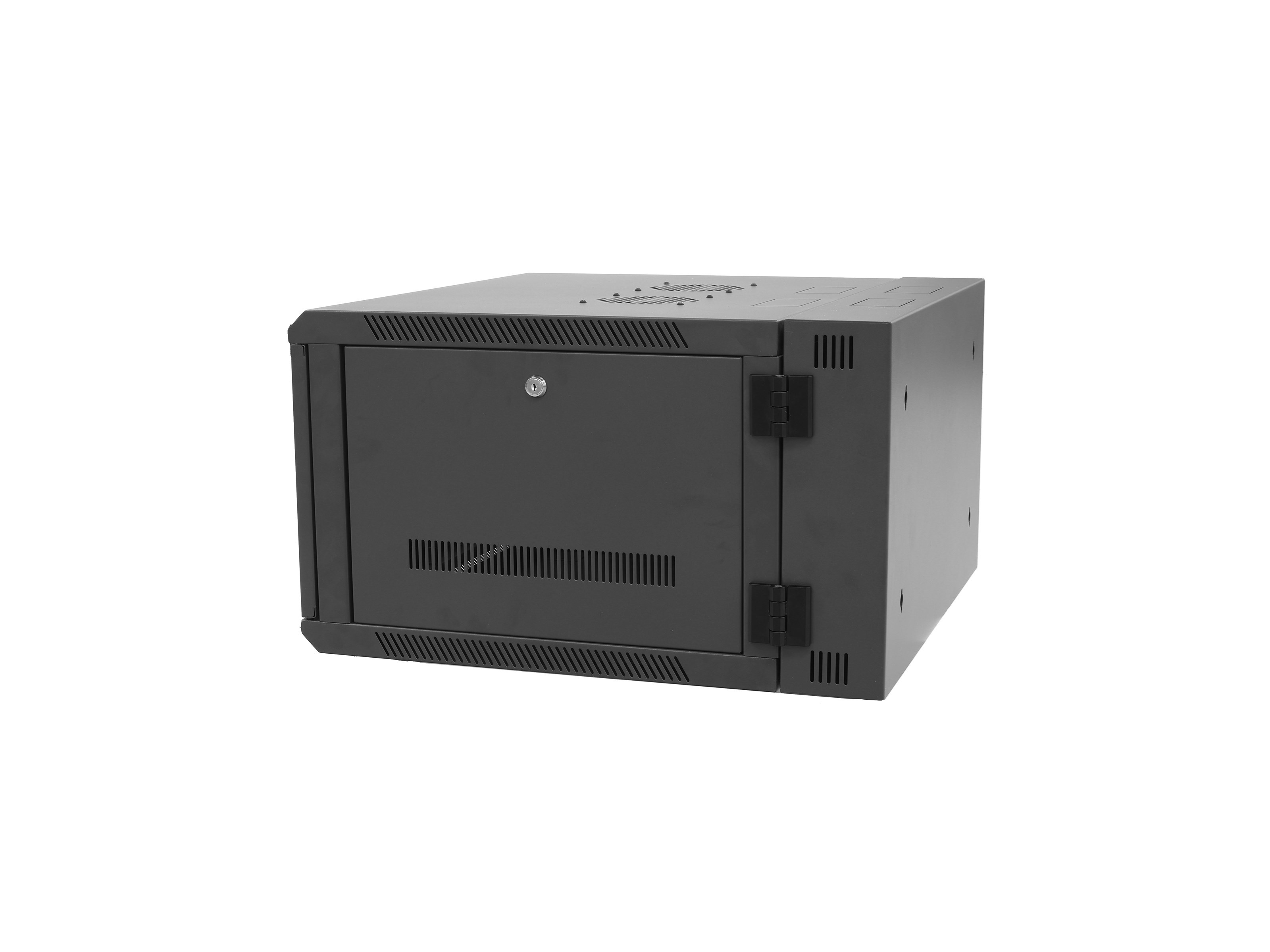

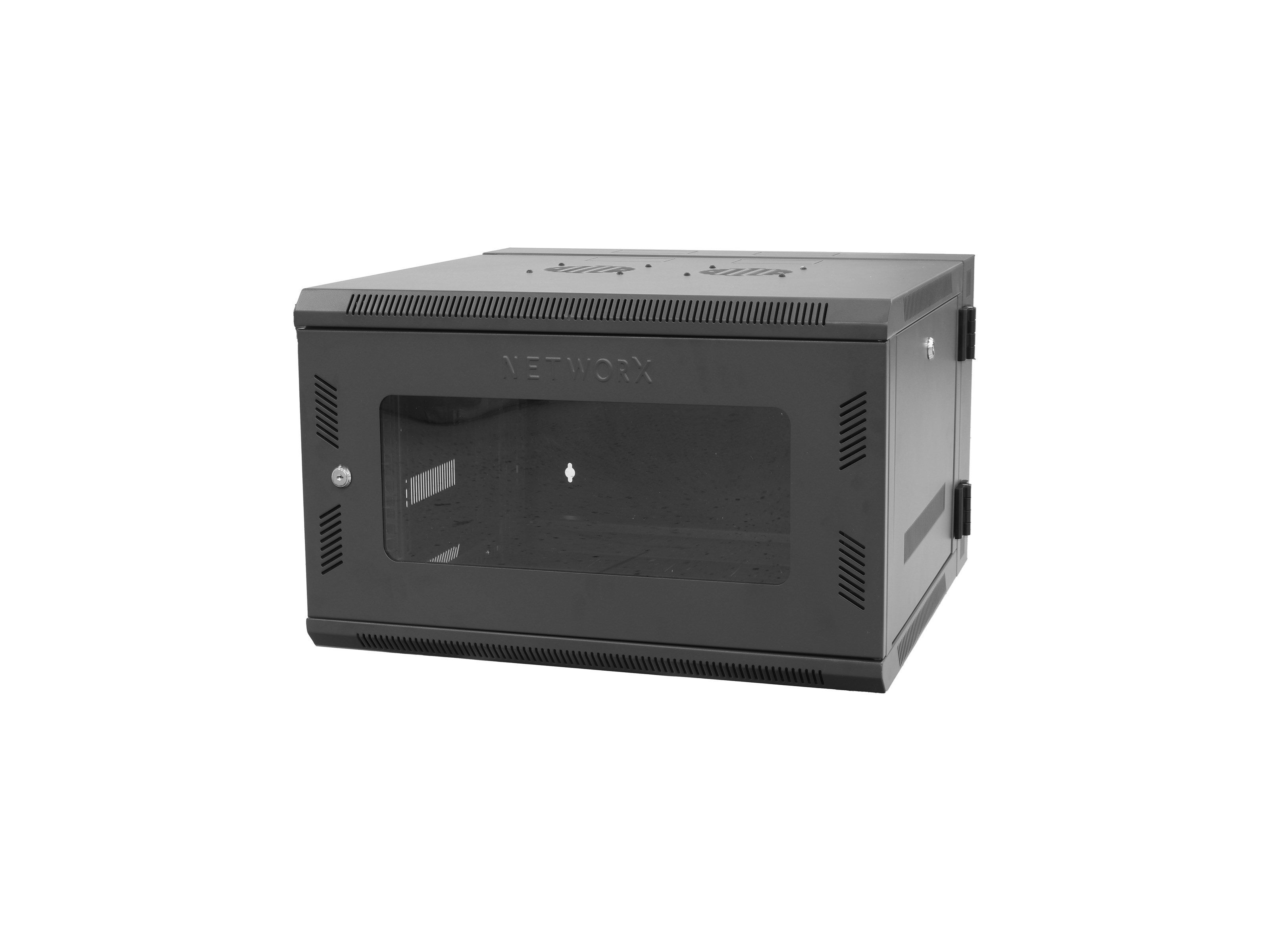

6U Swing Out Wall Mount Cabinet - 501 Series, 24 Inches Deep, Flat Packed

Quantity	2+	10+	25+
Price	$241.99	$237.05	$232.11
Save	2%	4%	6%

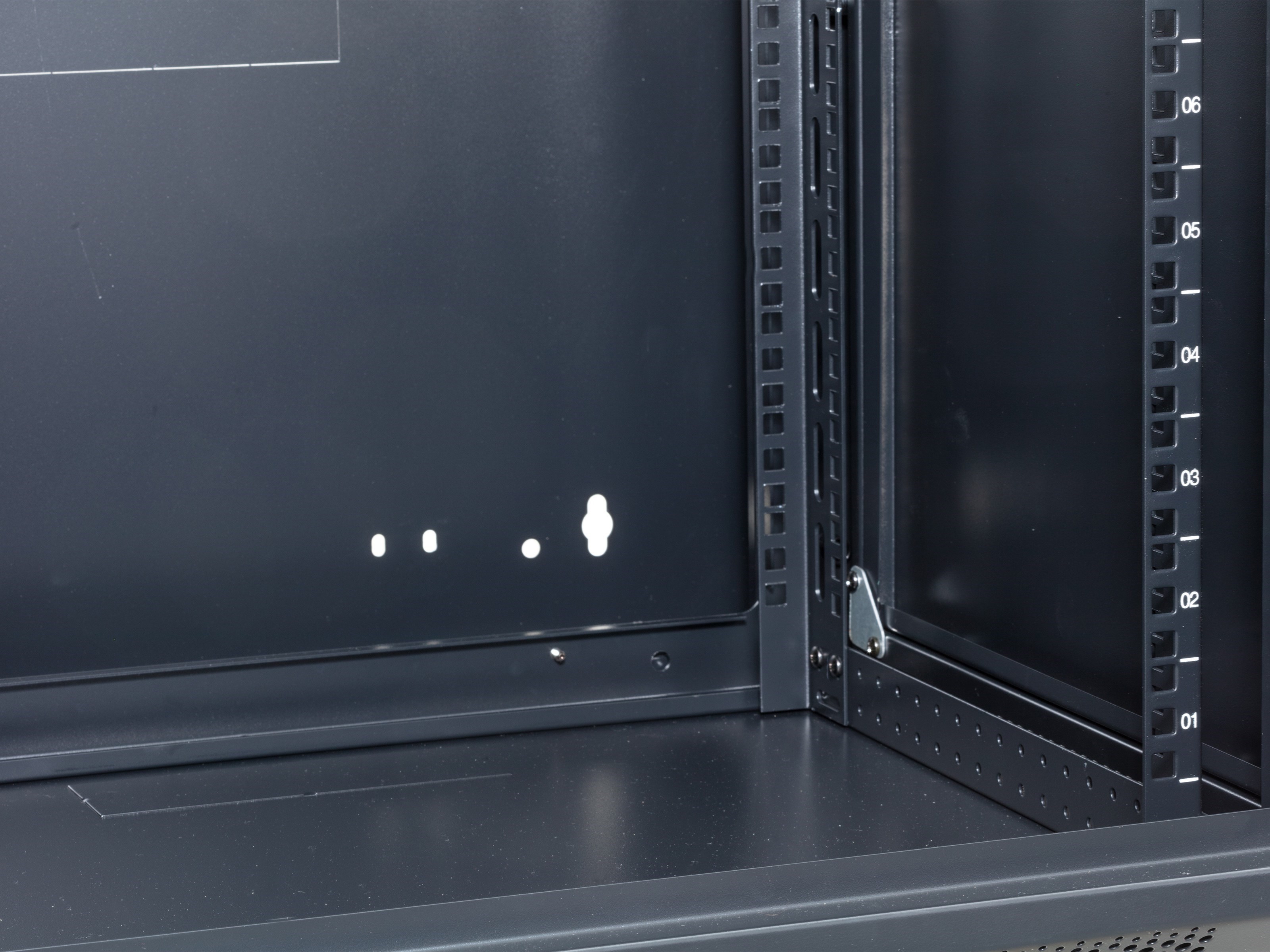

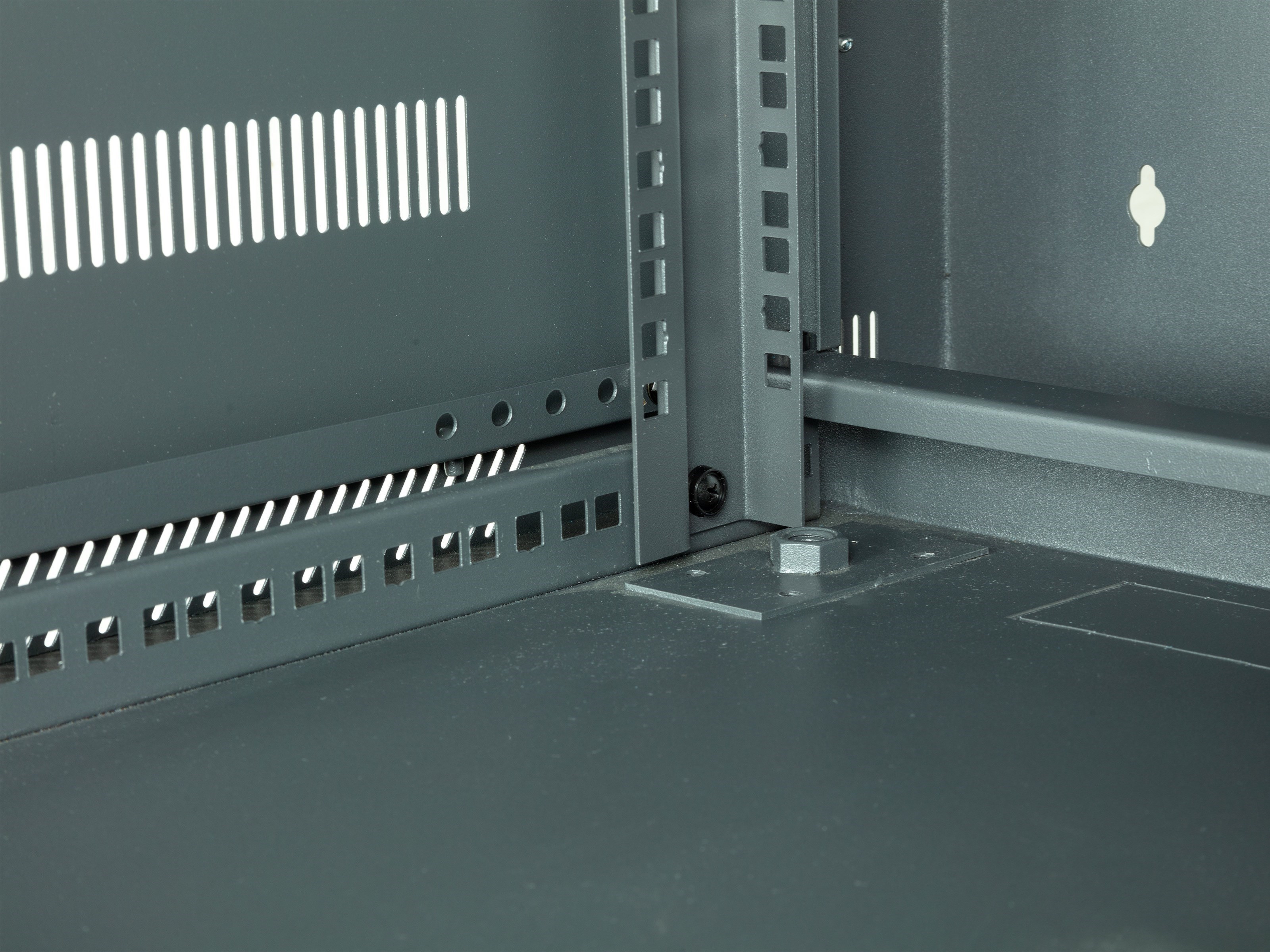

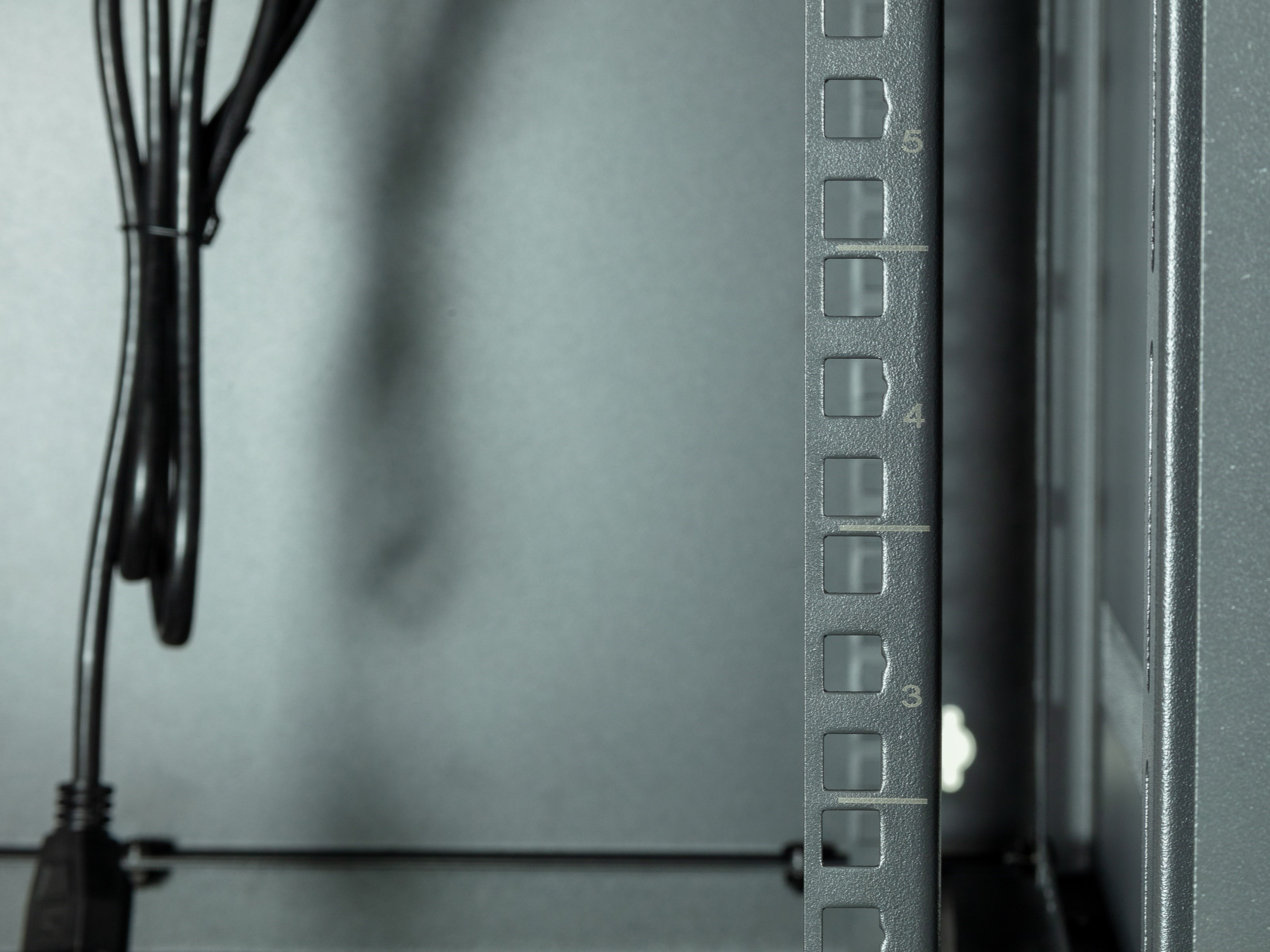

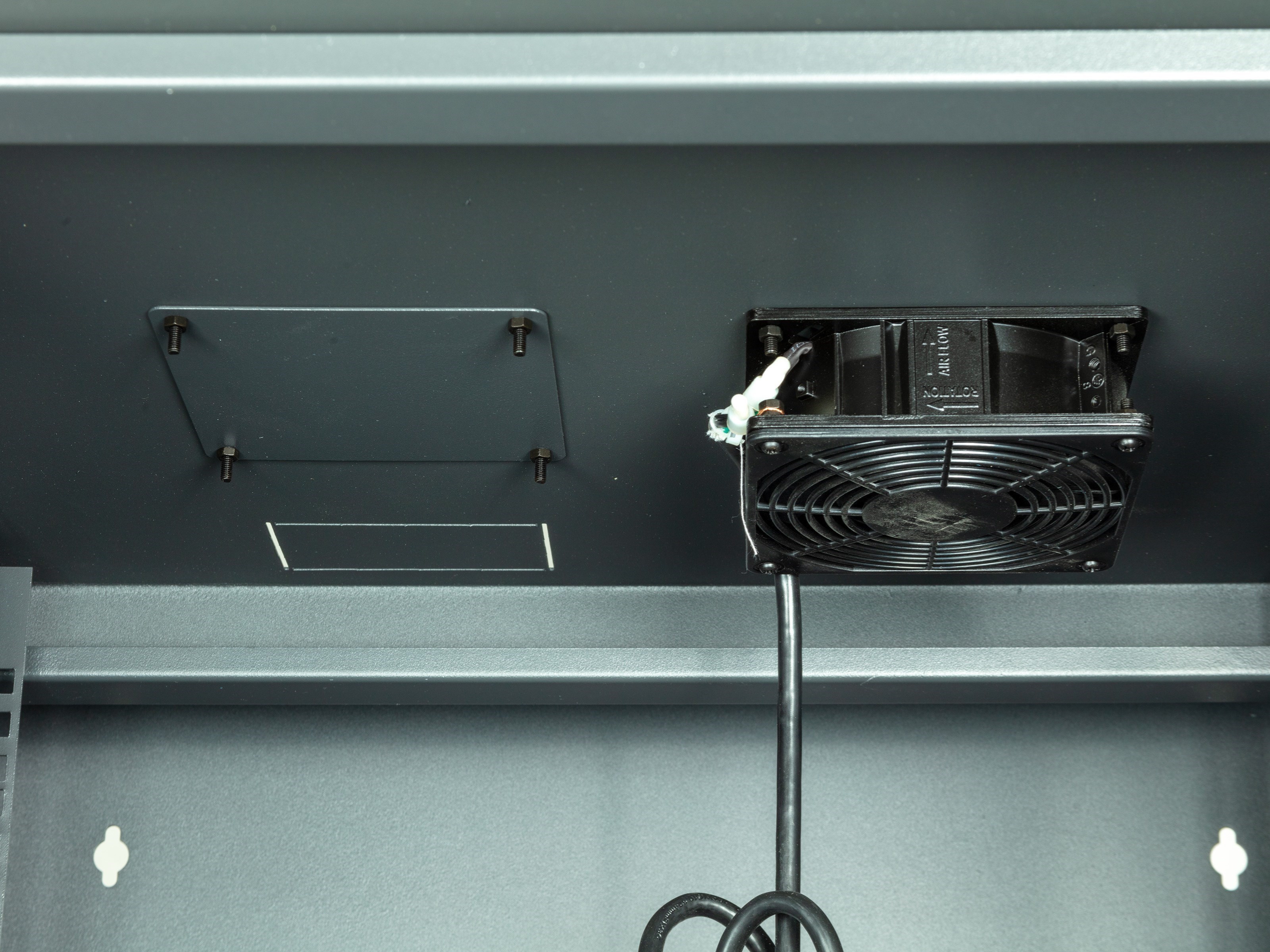

Get organized with the 6U 501 Series of Swing Out Wall Mount Cabinets from Networx®. The Swing Out style of cabients allows for the rear door of the cabinet to open up and allow even greater flexibility and access. In addition, the rear swingout panel is reversible and can swing out from the left or right. This cabinet comes equipped with some of the most requested features. Starting with the basics, this Wall Mount Cabinet is constructed with high quality SPCC Cold-Rolled Steel Panels. All Networx® Wall Mount Cabinets come with removable side panels, which include vents to keep equipment cool, to allow for quick access to sensitive networking equipment. All front panels swing out for easy access to loaded network equipment and include a window of 5mm tempered glass. Included with this high quality Wall Mount Cabinet is a single 120mm fan for ideal air movement to keep network equipment cool and running at peak performance. Adjustable rails allow for full customization to allow a variety of networking equipment to fit securely. The rails are punched to allow for the installation of M6 Cage Nuts. The Side Panels, Rear Panel and Front Door are lockable with the included set of keys. Top/Bottom/Rear knockouts for cable entry and exit. All racks are designed to house 19" rack mountable equipment.

12 M6 Cage Nuts
12U Rack Mount Units
External Dimensions: Height 13.2" x Width 24" x Depth 24"
Designed for equipment with a 19" mounting profile

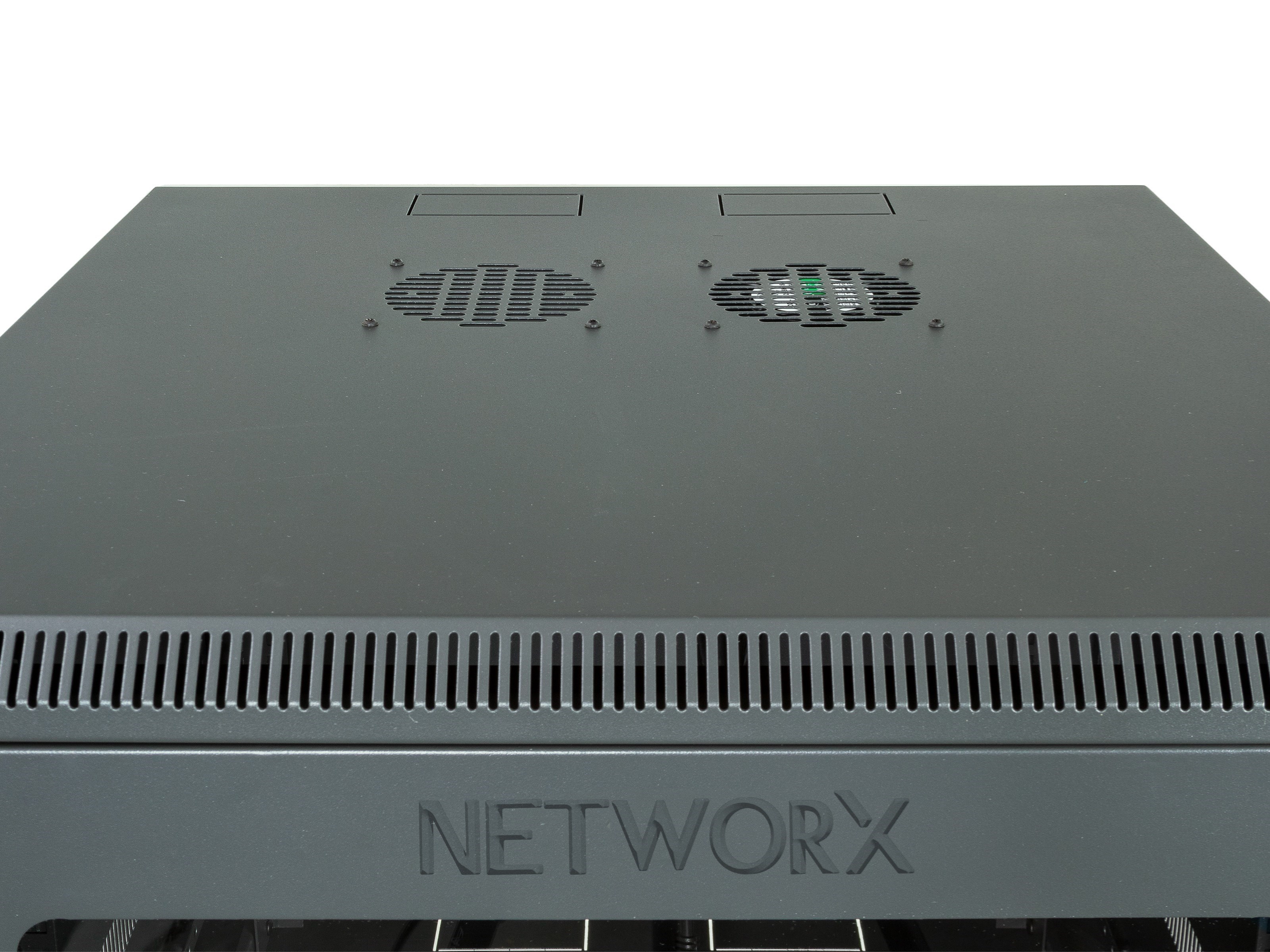

Vented Top/Sides/Front Panels for adequate airflow
Reversible front door with tempered glass window

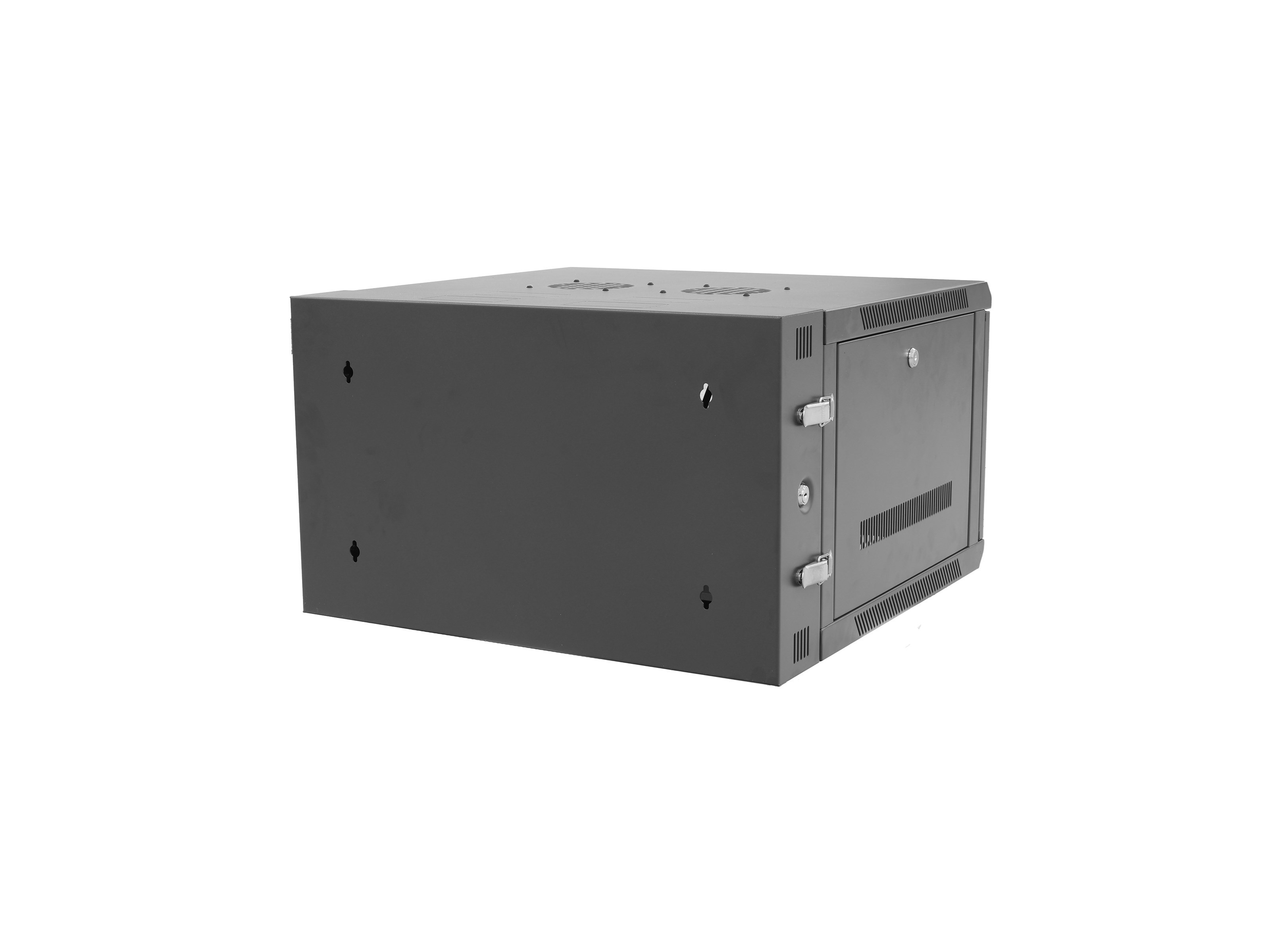

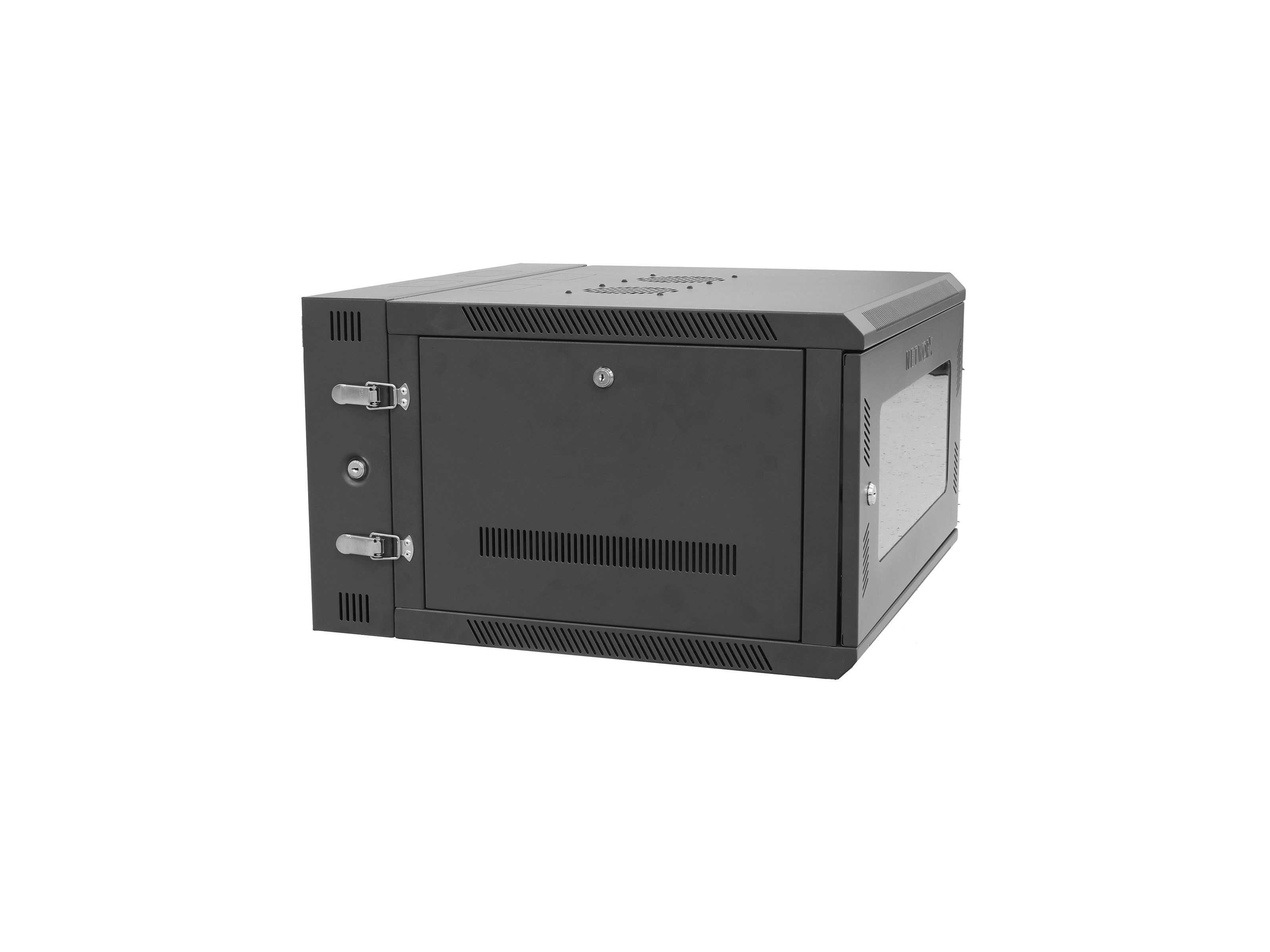

Reversible rear panel allows for swingout to the left or right

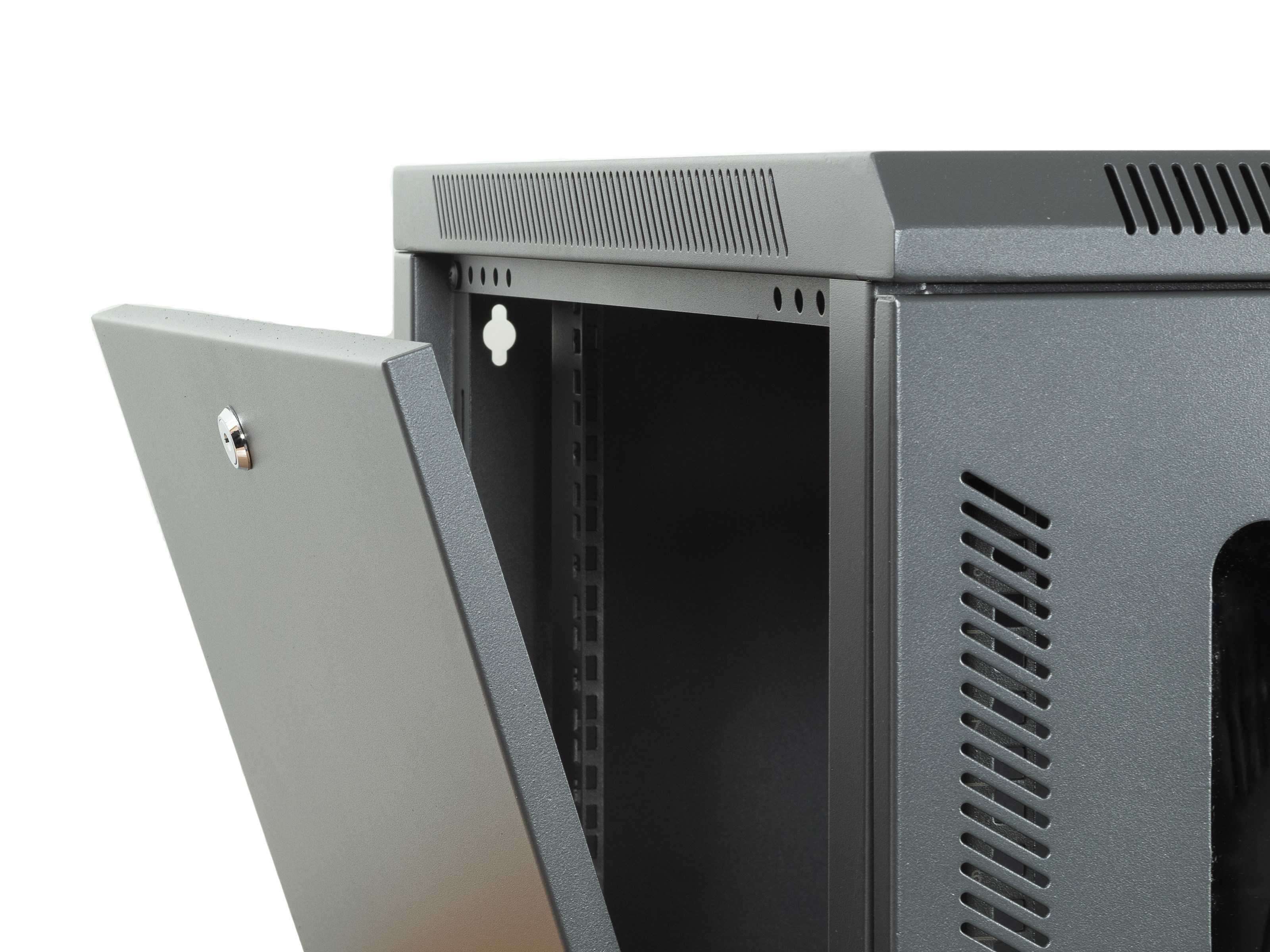

Removable side panels for easy access to equipment

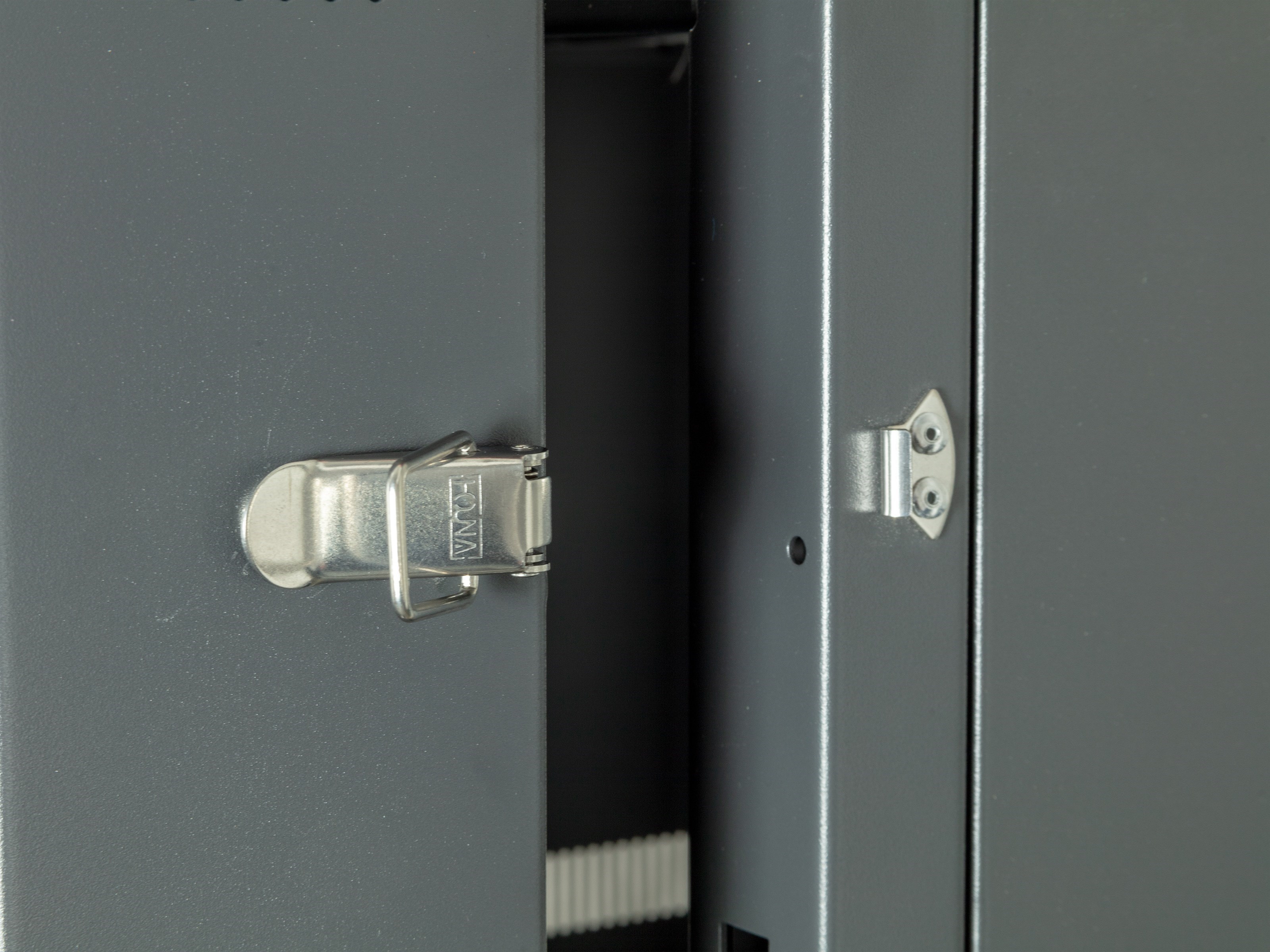

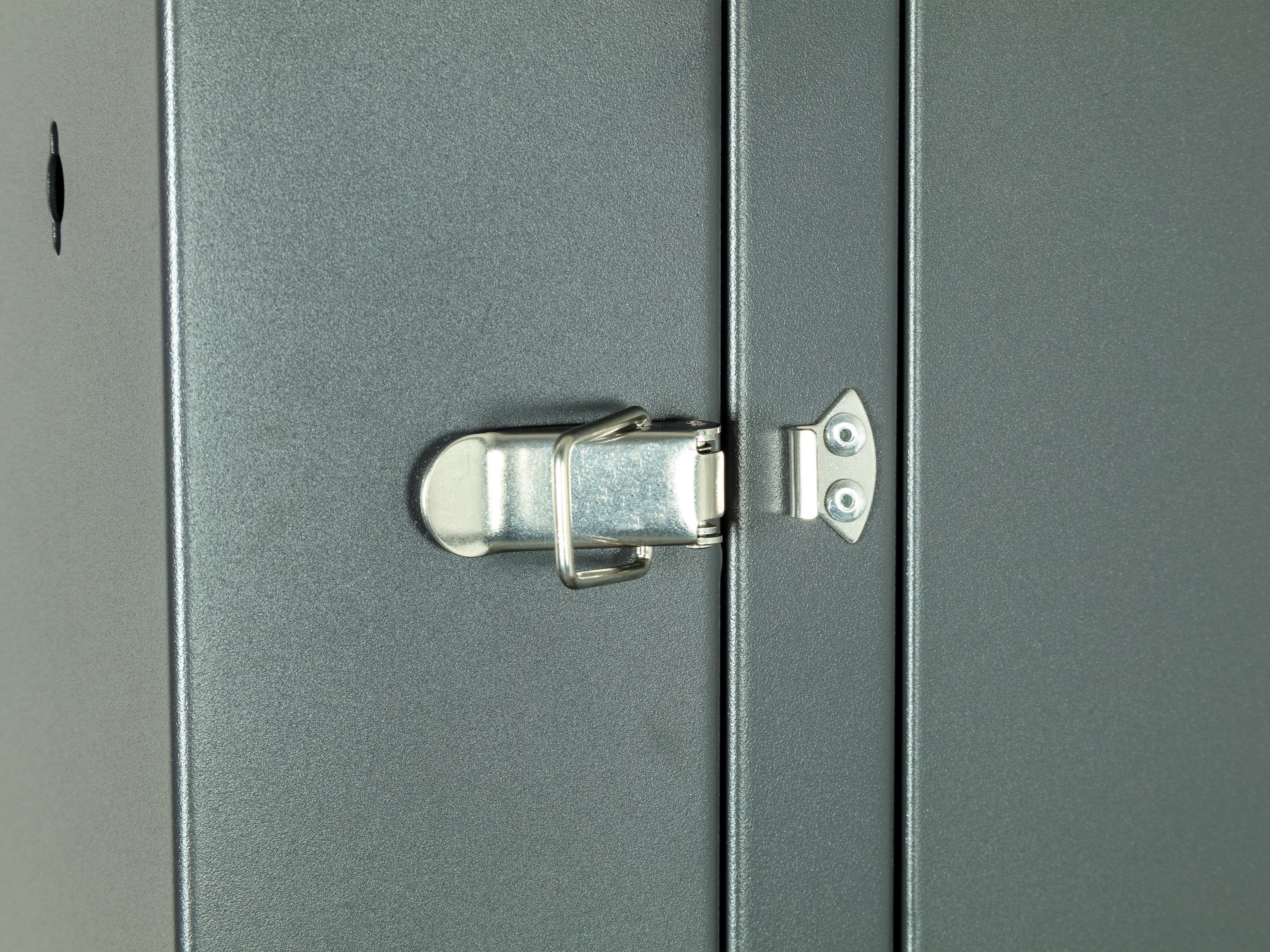

Front, Rear and Side Panels are lockable with included set of keys
Top/Bottom/Rear Knockouts for easy cable entry and exit
Supports up to 65lbs when secured properly
Flat Packed
Mounting Template Included

Our wall mount network cabinets meet the following standards:

ANSI/EIA RS-310-D
IEC297-2
DIN41491, PART 1
DIN41491, PART 7
GB/3047.2-92

Additional Resources

WMC-S501-6U Spec Sheet

WMC-S501-6U Instructions

Cage Nut Rails	Front & Rear
Color	Black
Internal Mounting Format	19"
Key Lock Set (2 Keys per Set)	3 Sets
Locking Side Panels	Yes
Manufacturer	Networx
Rack Size Width (Internal)	24" (19")
Reinforced Door Frame	Yes
Door Style	Tempered Glass
RMU	6U
Vented Side Panels	Removable

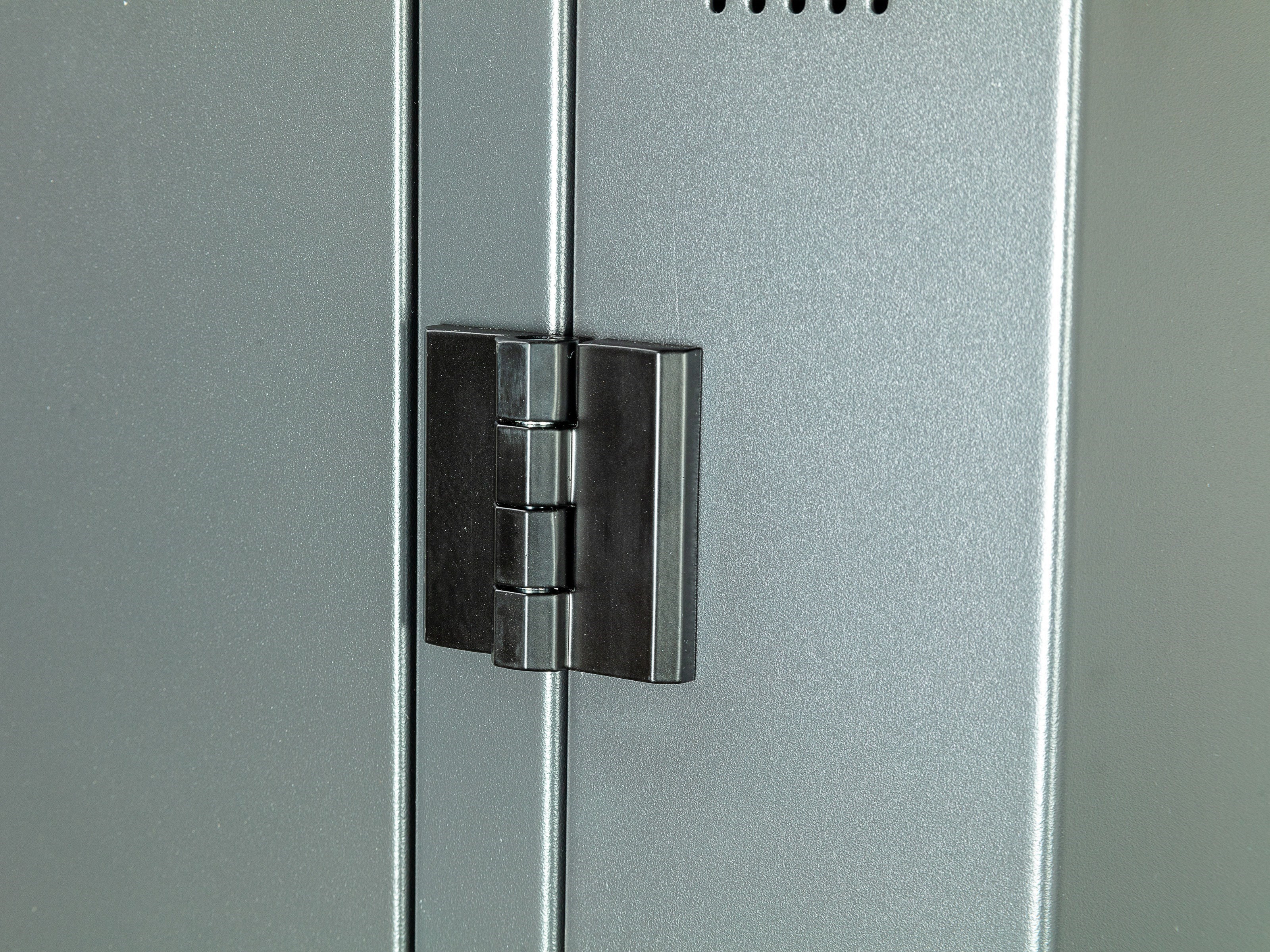

Hinged Swing Out Design	Yes
Rack Size Depth (Internal)	24" (19")
Rack Height (Assembled)	13.2 Inch
Delivery Style	Flat Packed
Revision	Rev. 2
Load Capacity	65 lbs
Mount Style	Wall Mount
Structure & Base Fabrication	SPCC Cold-Rolled Steel Sheets
Hinged Swing Out Design	Swing-Out
SKU	WMC-S501-6U
GTIN	00845425024749
Weight (Lbs)	53.00
