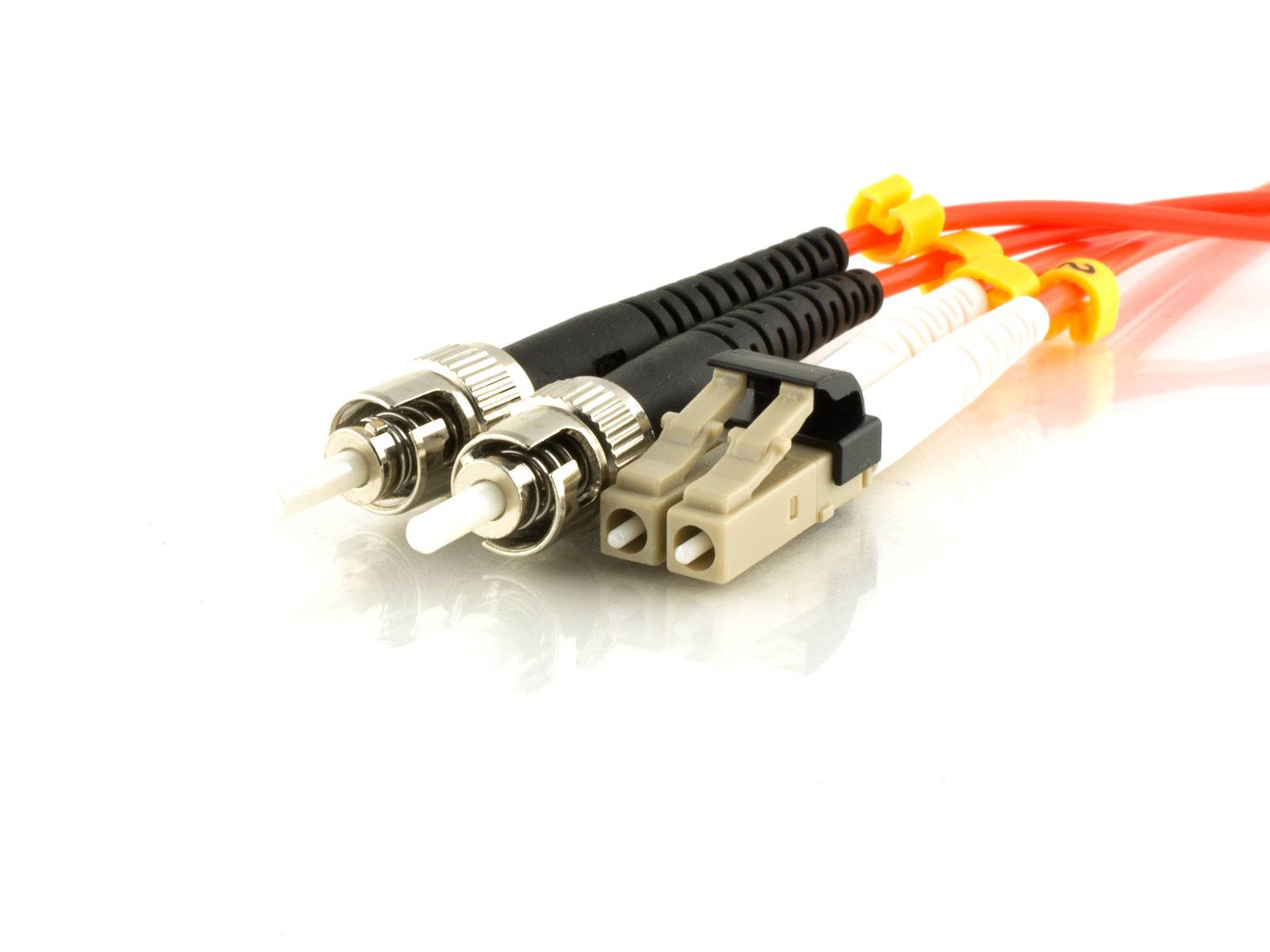

3m Multimode Duplex Fiber Optic Patch Cable (62.5/125) - Mini LC to ST

by Networx

Be the first to review this product

Length: 3 Meter

3 Meter

This 3m Multimode Duplex Fiber Optic Patch Cable (62.5/125) - Mini LC to ST is built with genuine Corning Glass, has ceramic ferrules and a 62.5/125 micron core, this cable is suitable for high speed data transmissions such that you would find in Ethernet (10 Mb/s) to Gigabit Ethernet (1 Gb/s) networks... read more

SKU: FP-LCMST1MD6-003

GTIN: 00845425027566

Manufacturer: Networx

$9.93

Qty:

Volume Discounts

Quantity	2+	10+	50+	100+
Price	$9.73	$9.53	$9.33	$9.14

Description

Networx® top quality, 3m Multimode Duplex Fiber Optic Patch Cable (62.5/125) - Mini LC to ST will unleash the power of your Local Area Network. These cables are suitable for the demands of high speed data transmissions that are commonly found in today's Ethernet (10 Mb/s) to Gigabit Ethernet (1 Gb/s) networks. Perfect for audio, video and data transmission applications. Each jumper cable is constructed using Genuine Corning Glass and shipped in individually sealed bags to ensure they arrive in perfect condition. Test results for the individual patch cable will be included in each bag. Color coded connectors assist with identification during the installation process to make installation easy for anyone.

Core Diameter: 62.5/125 micron
Insertion loss: typically <0.10 dB (LC); 0.30 dB (ST)
Return loss: >20dB
Ceramic Ferrules for increased durability
FOCIS-3 TIA/EIA-568-B.3 compliant
Connectors: (LC) Small form factor with latch; (ST) Bayonet twist locking system
Used primarily for high speed data communications such as Ethernet or Gigabit Ethernet
Ultra Physical Contact (UPC) Polished Fiber
Built with Corning Glass

Products specifications

Color	Orange
Connector A	LC Mini Male
Connector B	ST Male
Core Size	62.5/125
Fiber Classification	OM1
Fiber Type	Multimode
Manufacturer	Networx®
Warranty	Lifetime Warranty
UL Listed	Yes
RoHS Compliant	Yes
Length	3 Meter
SKU	FP-LCMST1MD6-003
GTIN	00845425027566
Weight (Lbs)	0.10
