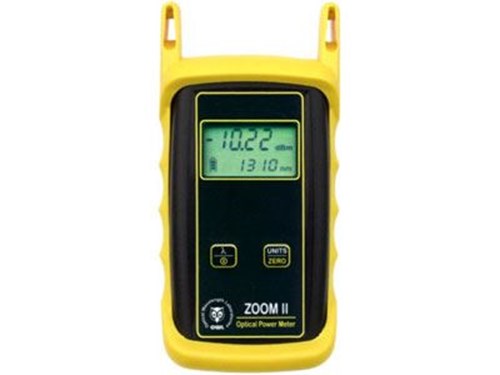

ZOOM 2 Optical Power Meter with Fault Locator / Finder

by OWL
The ZOOM 2 is one of the world's most economical and precise fiber optic power meters delivering professional performance and a complete feature set for optical loss testing in both multimode and singlemode networks. N.I.S.T. Traceable Read More
SKU: ZO-2V
$368.22
$386.05 (4% off)
The ZOOM 2 is one of the world's most economical and precise fiber optic power meters delivering professional performance and a complete feature set for optical loss testing in both multimode and singlemode networks.

The ZOOM 2 is N.I.S.T. Traceable and is calibrated at four commonly used industry standard wavelengths (850, 1300, 1310, and 1550), which makes it an ideal choice for both multimode and singlemode testing.

Additionally, the ZOOM 2 is calibrated at 1490nm, making it an excellent option for measurement of FTTx PON networks.

The ZOOM 2 can store reference values for all of its calibrated wavelengths, and displays optical power as an absolute value in dBm or relative to a user set "zero" reference in dB. It has an intuitive two-button interface, with one button controlling power and wavelength selection, while the other is used to toggle between dBm, dB, and uW, as well as setting the optical reference, or "zero".

Other standard features include a 4-digit, 0.01dB resolution display, battery status indicator, and a 2.5mm Universal detector port that is compatible with FC, ST, SC, DIN, and any other 2.5 mm ferrule connectors!

The following accessories are included with each ZOOM 2: rugged rubber boot, carrying strap, NIST certificate of calibration, and operations manual on CD.

  • 19 inch EIA 310-D  compliant mounting
  • #10-32 threaded mounting holes
  • 3 position adjustable rails
  • Keyed wall mounting holes (16" centers) for left, right, or vertical equipment orientation
  • Removable cover
  • All steel construction
  • Durable black texture powder coat finish
  • Vented
  • Dimensions:  7.5"H x 19.75"W x 21.63"D
  • Weight Capacity: 75 lbs.

Products specifications
Manufacturer Optical Wavelength Laboratories, Inc.
Color Yellow
Accuracy ±0.15 dB
Auto-Shutdown Yes
Battery Life 250 hours (9V)
Calibrated Wavelengths 850, 1300, 1310, 1490, 1550
Connector Type 2.5mm/1.25mm universal
Detector Type InGaAs
Dimensions 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm)
Display Resolution 0.01 dB
Display Type LCD
Displayed Measurement Units dBm, dB, mW, μW
Operating Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -30°C to 70°C (-22°F to 158 °F)
Visual Fault Locator (VFL) Included
Weight (Lbs) 1.00
0 / 5 (based on 0 reviews) Be the first to review this product
