Optical Test Kit - Micro OWL 2 / Dual OWL 850nm Multimode - SC Connector

Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant
SKU: KIT-M2-D285SC
$708.00

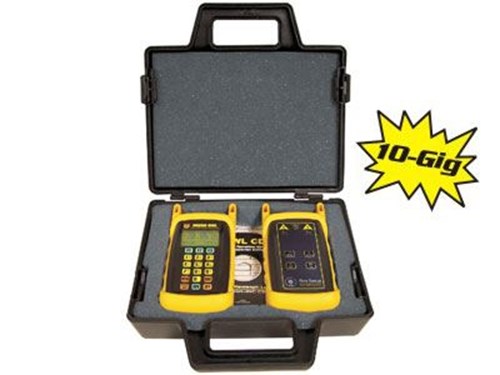

Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed. The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hardcopy documentation as proof of adherence to standards. The Micro OWL 2 / Dual OWL 850 Test Kit contains the tools necessary for certifying multimode fiber optic links against a myriad of cabling standards at 850nm. The Micro OWL 2 optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard that performs link budget calculation, and sets a reference value using the characteristics of the link. This reference is the PASS/FAIL threshold and is calculated against the chosen standard. Up to 1000 fiber runs may be stored, and downloaded to a PC for report generation using our OWL Reporter software. Its universal port allows connections to ST, SC, and FC, and also includes a 1.25mm universal port for connection to LC, MU, and other SFF connectors. The Dual OWL 850 is our NIST traceable multimode light source. Its 850nm output is temperature-stabilized for accurate measurements.

  • Two KVM consoles independently and simultaneously control up to 16 directly connected computers
  • Cascade up to 3 levels of switches to support up to 4096 computers
  • Video resolution 1280 x 1024 @ 75 Hz up to 40 m; 1600 x 1200 @ 60 Hz up to 30 m
  • Multiplatform support: PC, Mac, Sun, and serial
  • Backup and restore configuration settings to an external flash drive to simplify installation for disaster recovery
  • No software to install convenient computer selection via graphical on-screen display (OSD) menus
  • Supports two-level user access control (administrator and user)
  • Supports up to 96 user accounts
  • Configure port access rights for users on a port-by-port basis
  • Diversified port operation mode enables flexible computer management Occupy, Exclusive and Share modes
  • OSD port list automatically expands when stations are added
  • Port names are automatically reconfigured when the station/computer sequence is changed
  • OSD screen automatically adjusts to resolution changes
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • User activity log support
  • Console conversion any type of KVM console can control any type of computer; mixed combinations
  • (PS/2&USB) supported on both the KVM console and computer sides
  • USB / PS/2 keyboard and mouse emulation computers boot even when the KVM console focus is elsewhere
  • Hot pluggable add or remove components without having to power off the KVM switch
  • Free lifetime firmware upgrades
  • Effortlessly upgrade an entire installation automatically upgrade all cascaded switches and adapter cables directly from the root station
  • Compact design rack mounts in only 1U of rack space

Products specifications
Connector A SC Female
Manufacturer Optical Wavelength Laboratories, Inc.
Color Yellow
Weight (Lbs) 4.00
