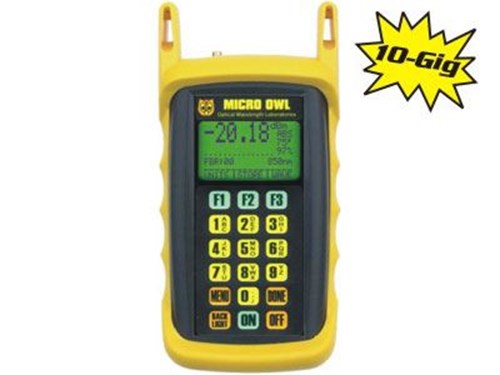

Micro OWL 2 Optical Power Meter with Fault Locator / Finder

by OWL
The Micro OWL 2 is one of the world’s smallest optical power meters to offer so many features, including a 0.15 dB accuracy over its normal operating range. It is as feature-packed and accurate as optical power meters costing hundreds of dollars more. This combination of features, size, accuracy, and price make it a tremendous value for the optical fiber professional.

The Micro OWL 2 is a high accuracy, high resolution, microprocessor controlled, optical power meter. It has an small handheld case made from high impact plastic, a backlit, graphic, liquid crystal display, and 18-key keypad for easy data entry. It can be ordered with an integrated visual fault locator (in the place of the battery charger). The meter will operate for over 100 hours on a standard 9v battery and has built-in automatic shutdown.

The Micro OWL 2 includes a built-in Fiber Loss Wizard that helps you easily calculate the allowable loss for the fiber runs that you will be measuring. The meter stores physical fiber characteristics for eight different locations, or links. This includes: link name, date, fiber type, fiber length, connectors, splices, temperature, and calculated or entered reference power values for three wavelengths. In addition the meter will store up to 1000 measured data points with labels. Each value includes the fiber type and link. The stored information can be selectively viewed, edited (measured again), printed, or deleted. The meter will print formatted reports of selected stored data directly using the built in USB port, or all of the stored data can be downloaded to our free OWL Reporter™ data management and reporting software.

  • Length: 12 1/2 Inch
  • Min Tensile Strength: 120 Lbs
  • UV Protection: No
  • Max Bundle Diameter: 3.14 Inch
  • Material: Nylon 6/6 - General Purpose
  • UL Flame Rating: 94V-2
  • Color: Natural
  • Mount Diameter: 7.8mm

Products specifications
Manufacturer Optical Wavelength Laboratories, Inc.
Color Yellow
Accuracy ±0.15 dB
Auto-Shutdown Yes
Battery Life 100 hours (9V)
Calibrated Wavelengths 850, 980, 1300, 1310, 1490, 1550, 1625
Connector Type 2.5mm/1.25mm universal
Data Storage 1000 data points
Detector Type InGaAs
Dimensions 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm)
Display Resolution 0.01 dB
Display Type Backlit Graphical LCD
Displayed Measurement Units dBm, dB, mW, μW, nW
Measurement Range +5 to -70 dBm
Modes of Operation Simple, Certification
Operating Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -30°C to 70°C (-22°F to 158 °F)
Visual Fault Locator (VFL) Included
Weight (Lbs) 1.00
