Laser OWL Singlemode Optical Light Source - SM 1310/1550nm - ST Connector

SKU: LO2ST

$795.00

The Laser OWL is a cost effective, compact, handheld laser light source. The temperature compensated outputs are calibrated to couple -10dBm of optical power into an 9 micron single mode fiber. The light source is offered with a 1310nm and a 1550nm... read more

Description

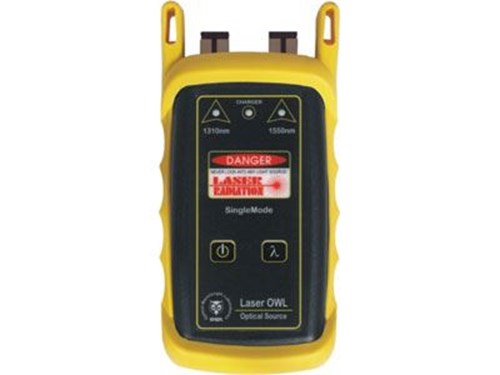

The Laser OWL is a cost effective, compact, handheld laser light source. The temperature compensated outputs are calibrated to couple -10dBm of optical power into an 9 micron single mode fiber. The light source is offered with a 1310nm and a 1550nm laser installed.

The source is simple to operate with an intuitive 2-button interface: one button controlling power and the other for selecting output wavelength. LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power.

  • Easily convert any standard ethernet cable into a Crossover Cable
  • Eliminate the need to carry extra cables
  • A must have for all PC and Network Technicians
  • Use spare patch cables to connect similar computing devices
  • Small, compact design guarantees high portability
  • Molded architecture saves from dents and scratches for long lasting use
  • Use spare patch cables to connect similar computing devices
  • Small, compact design guarantees high portability
  • Molded architecture saves from dents and scratches for long lasting use

Products specifications

Connector A ST Female
Manufacturer Optical Wavelength Laboratories, Inc.
Color Yellow
Battery Life 25 hours (9V)
Center Wavelength 1310/1550nm
Dimensions 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm)
Fiber Type Singlemode
Initial Accuracy 0.1 dB
Launch Method FP Laser
Operating Temperature 0°C to 55°C (32°F to 131°F)
Output Power -10 dBm
Spectral Width 1550nm: 2nm; 1310nm: 2nm
Storage Temperature 0°C to 75°C (32°F to 167°F)
Wavelength Accuracy ± 30nm
SKU LO2ST
Weight (Lbs) 1.00
