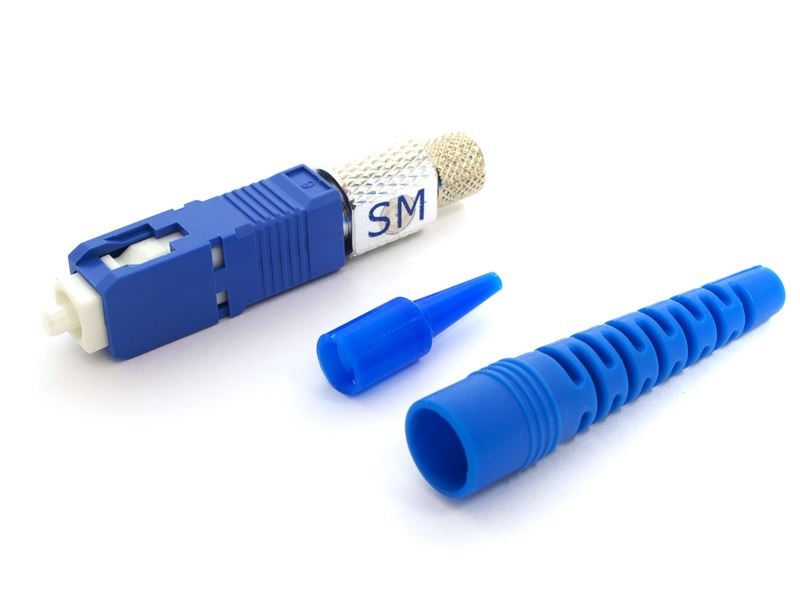

SC Singlemode Field Installable Connector - 9/125 - 3.0mm cable

by Networx®
Pre-Polished SC Field Installable Connectors from Networx® offer a simple and effective way to easily terminate fiber optic connections in the field without requiring the use of adhesives... read more
SKU: AC-FICSC93
GTIN: 00845425015433
Manufacturer: Networx®
Core Size Options:
Core Size 50/125, Fiber Type Multimode 50/125 Multimode Core Size 62.5/125, Fiber Type Multimode 62.5/125 Multimode
Core Size 9/125, Fiber Type Singlemode 9/125 Singlemode
In stock
$13.04
Description

Field Installable Connectors from Networx® offer a simple and effective way to terminate fiber optic connections in the field with minimum downtime. With a low insersion loss of ?0.75dB these field installable connectors are perfect for those who require only the best performance possible. Available in various connections these field installable fiber optic connectors will ensure that jobs are finish in a timely manner without any need to do more work than required.

  • Tool: Orange Polypropylene
  • Cap: Transparent Polyethylene
  • Connector: 9/125 Multimode
  • Nut: Brass/Nickle Plated
  • Boot: Black TPE 3.0mm Diameter
  • Insertion Loss: ?0.75dB
  • Vibration: 10 to 55HZ 1.5mm double amplitude
  • Durability: 500 cycles
  • Operating Temperature: -10C to +50C
  • Storage Temperature: -20C to +70C
Products specifications
Color Blue
Connector A SC Male
Manufacturer Networx®
Core Size 9/125
Fiber Type Singlemode
Warranty Lifetime Warranty
SKU AC-FICSC93
GTIN 00845425015433
Weight (Lbs) 0.05
