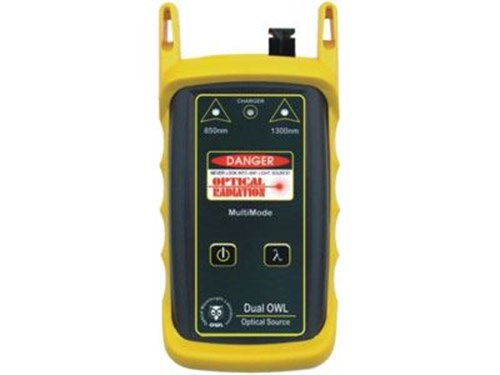

Dual OWL Multimode Optical LED Light Source - MM 1300nm - ST Connector

by OWL
The Dual OWL 1300 is a cost effective, compact, handheld light source. The temperature compensated outputs are calibrated to couple -20dBm of optical power into multimode fiber. The light source is offered with a single 1300nm source installed, and can be easily upgraded to include a 850nm source.

The source is simple to operate with a single switch controlling power and selecting the output wavelength. LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power.

  • Console and PC cables molded in
  • Translates PS/2 keyboard, mouse and VGA signals to SUN USB keyboard, mouse and monitor signals
  • Compatible with ATEN's SPHD(Special High Density) equipped KVM switches
  • Compatible with SUN USB system
  • Composite sync video support
  • Keyboard language selection via simple hotkeys
  • Supports PS/2 mice and Microsoft Intellimouse
  • Supports 1600 x 1200, maximum video resolutions including Sun specific: 1152 x 900

Products specifications
Connector A ST Female
Manufacturer Optical Wavelength Laboratories, Inc.
Battery Life 40 hours (9v)
Dimensions 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm)
Fiber Type Multimode
Initial Accuracy 0.1 dB
Launch Method LED
Operating Temperature 0°C to 55°C (32°F to 131°F)
Output Power -20 dB
Storage Temperature 0°C to 75°C (32°F to 167°F)
Wavelength 850/1300nm
Weight (Lbs) 1.00
