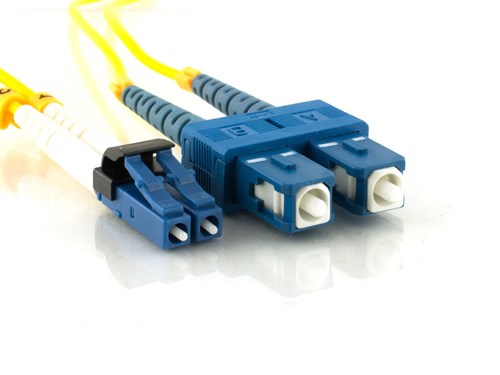

1m Singlemode Duplex Fiber Optic Patch Cable (9/125) - Mini LC to SC

Networx® top quality, high-speed 1m Singlemode Duplex Fiber Optic Patch Cable (9/125) - Mini LC to SC cables will unleash the power of your telecommunications system. With ceramic ferrules and a 9/125 micron core, this cable is suitable for high speed, high bandwidth, far-reaching telecommunications such that you would find in long-distance telephony and cable television applications.  These fibers operate at the 1310 nm or 1550 nm transmission windows. Each jumper cable is constructed using Genuine Corning Glass and shipped in individually sealed bags to ensure they arrive in perfect condition. Test results for the individual patch cable will be included in each bag. Color coded connectors assist with identification during the installation process to make installation easy for anyone.

• Core Diameter: 9/125 micron
• Insertion loss: typically 0.30 dB
• Return loss: ≥50 dB
• Ceramic Ferrules for increased durability
• FOCIS-3 TIA/EIA-568-B.3 compliant
• Connectors: (LC/UPC) Small form factor with latch; (SC/UPC) Molded body with push-pull locking (snap-in)
• Used primarily for high bandwidth, long-distance telecommunications
• Ultra Physical Contact (UPC) Polished Fiber
• Built with Corning Glass
