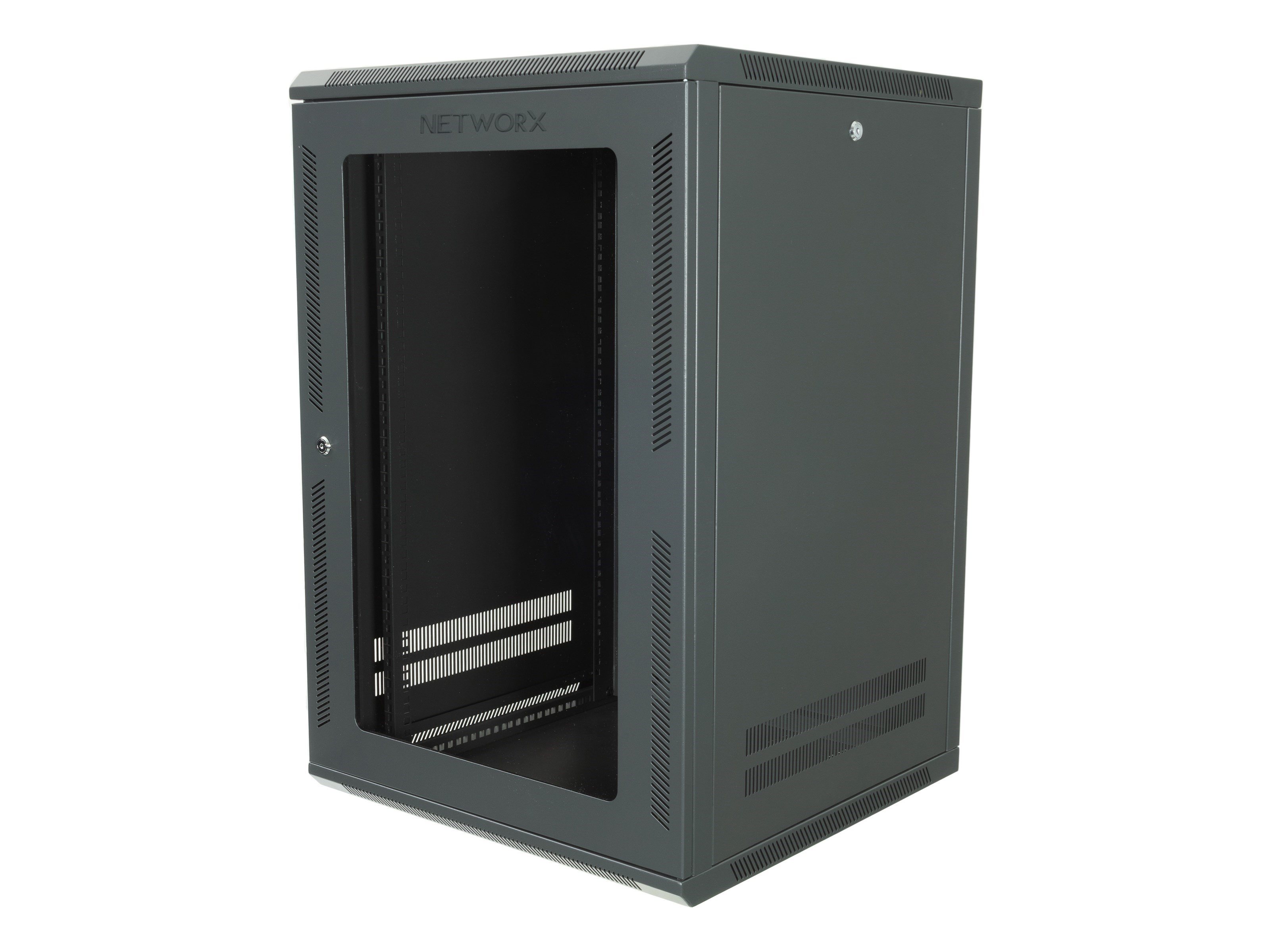

18U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed

by Networx®
Get organized with the 18U 201 Series of Wall Mount Cabinets from Networx®... read more
SKU: WMC-S201-18U
GTIN: 00845425023162
Manufacturer: Networx®
RMU Options:
RMU 6U 6U RMU 9U 9U RMU 12U 12U RMU 15U 15U
RMU 18U 18U
In stock
$253.48
$274.54 (7% off)
Volume Discounts
Quantity 2+ 10+ 25+
Price $248.42 $243.34 $235.74
Description

Get organized with the 18U 201 Series of Wall Mount Cabinets from Networx®. This cabinet comes equipped with some of the most requested features. Starting with the basics, this Wall Mount Cabinet is constructed with high quality SPCC Cold-Rolled Steel Panels. All Networx® Wall Mount Cabinets come with removable side panels, which include vents to keep equipment cool, to allow for quick access to sensitive networking equipment. All front panels swing out for easy access to loaded network equipment and include a window of 5mm tempered glass. Included with this high quality Wall Mount Cabinet is a single 120mm fan for ideal air movement to keep network equipment cool and running at peak performance. Adjustable rails allow for full customization to allow a variety of networking equipment to fit securely. The rails are punched to allow for the installation of M6 Cage Nuts. Both Side Panels and Front Door are lockable with the included set of keys. Top/Bottom/Rear knockouts for cable entry and exit. All racks are designed to house 19" rack mountable equipment.

  • 12 M6 Cage Nuts
  • 4 Lag Bolts for Wall Mounting
  • 18U Rack Mount Units
  • External Dimensions: Height 40" x Width 24" x Depth 24"
  • Designed for equipment with a 19" mounting profile
  • Vented Top/Sides/Front Panels for adequate airflow
  • Reversible front door with tempered glass window
  • Removable side panels for easy access to equipment
  • Front and Side Panels are lockable with included set of keys
  • Top/Bottom/Real Knockouts for easy cable entry and exit
  • Supports up to 130lbs when secured properly
  • Flat Packed - Assembly Required
Additional Resources
Related Videos
Networx® Wall Mount Cabinet Assembly Video Networx® Wall Mount Cabinet Assembly Video
How to mount a Wall Mount Cabinet How to mount a Wall Mount Cabinet
Reviews
5 star (1)
66%
4 star (0)
33%
3 star (0)
0%
2 star (0)
0%
1 star (0)
0%
Overall rating 4.7
Based on 3 reviews
Good case, instructions to assembly are not very clear
This is a very good case to fit a HikVision NVR, is deep enough to hold the unit. Has also nice side doors and good overall quality. Only reason I won't give five stars is for poor assembly instructions.
Was this review helpful? Yes (0/0)
Great Product - Fair Price
This is a well built cabinet with lots of unexpected features. Not only is it made of heavy gauge metal it’s vented side doors and smoked glass front door make it a pleasing addition to any office. This exact cabinet was used in a work room to clean up some network equipment that grew over time and got out of hand but after the installation it looks quite nice (and much quieter). I also added an additional fan to the one that comes standard for better ventilation and a half shelf for some smaller items.
Was this review helpful? Yes (0/0)
On time delivery
Good price.
Was this review helpful? Yes (0/0)
Read all 3 reviews
Products specifications
Cage Nut Rails Front & Rear
Color Black
Internal Mounting Format 19"
Key Lock Set (2 Keys per Set) 1 Set
Load Capacity 130 lbs
Locking Side Panels Yes
Manufacturer Networx®
Preinstalled 80CFM 110V Fans 1
Rack Size Depth (Internal) 24" (20")
Rack Size Width (Internal) 24" (19")
Reinforced Door Frame Yes
Door Style Tempered Glass
RMU 18U
Structure & Fabrication SPCC Cold-Rolled Steel Sheets
Vented Side Panels Removable
Hinged Swing Out Design No
Rack Height (Assembled) 39.6 Inch
Delivery Style Flat Packed
SKU WMC-S201-18U
GTIN 00845425023162
Weight (Lbs) 63.70
