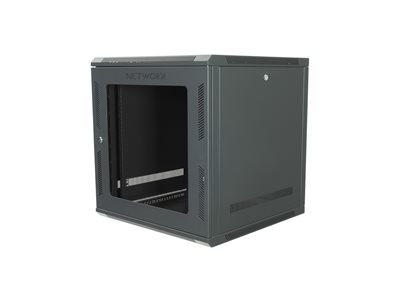

12U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed

by Networx
Get organized with the 12U 201 Series of Wall Mount Cabinets from Networx®... read more
SKU: WMC-S201-12U
GTIN: 00845425023148
Manufacturer: Networx
In stock
$214.47
Volume Discounts
Quantity 2+ 10+ 25+
Price $210.18 $205.89 $201.60
Description

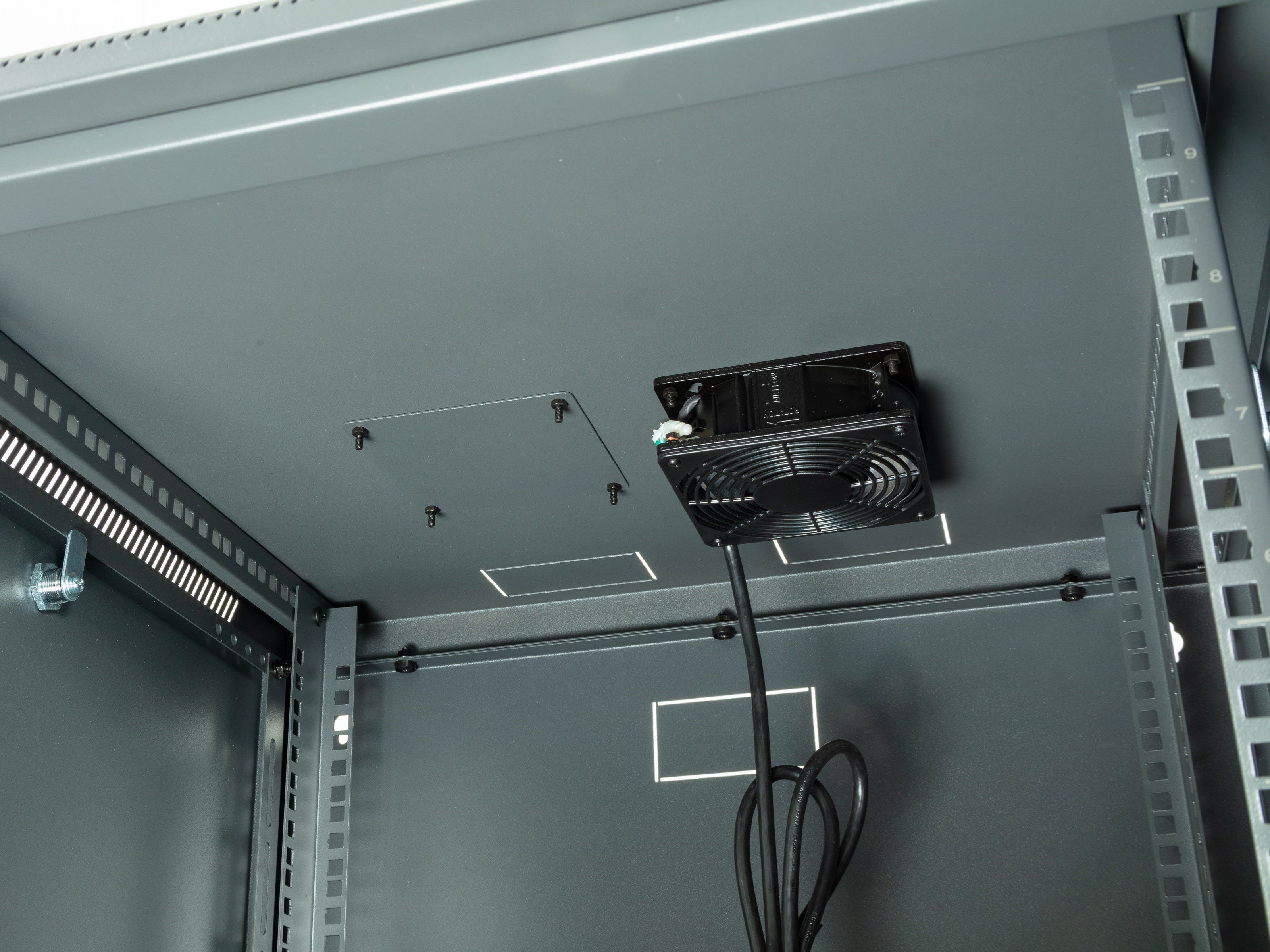

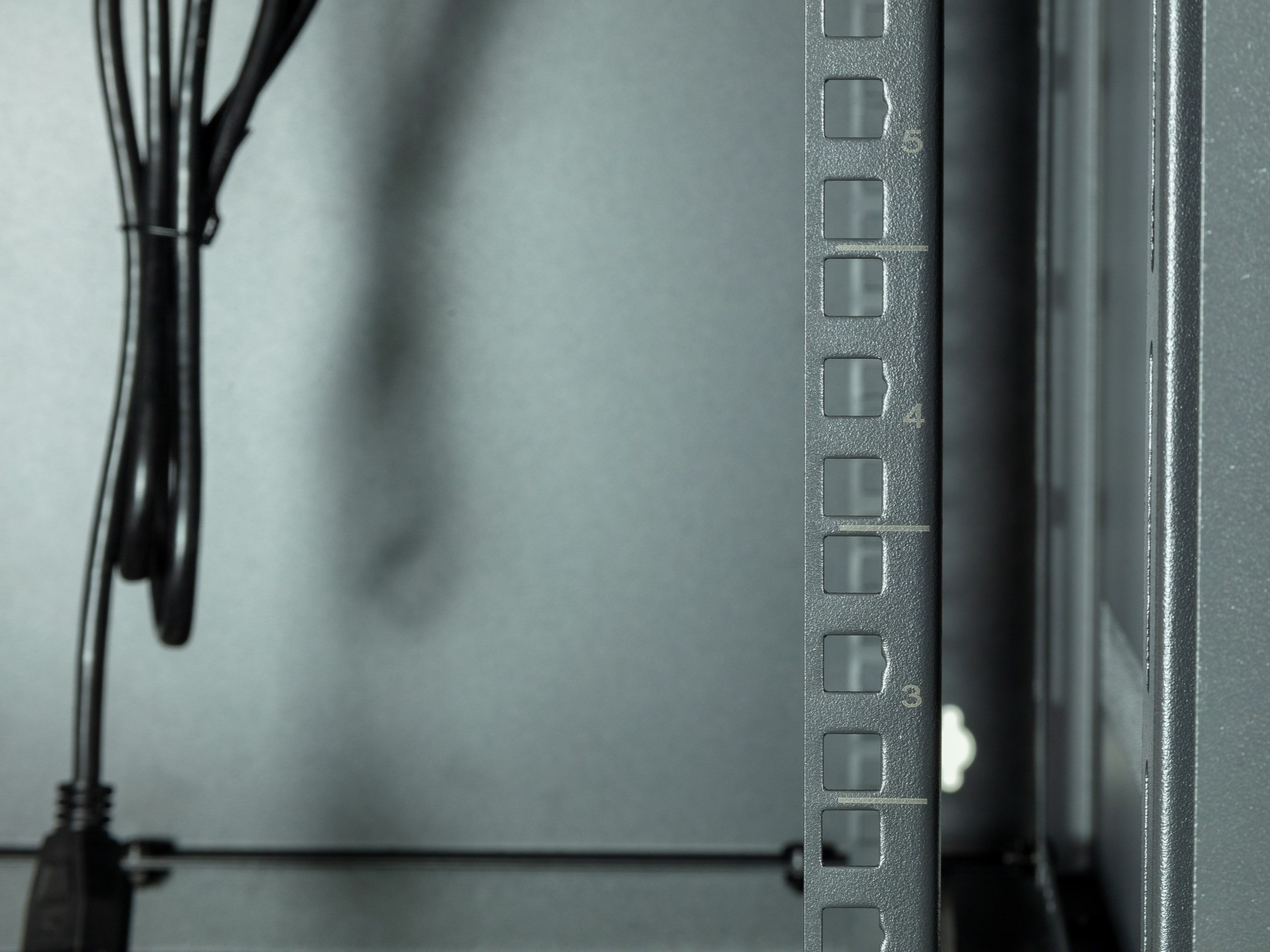

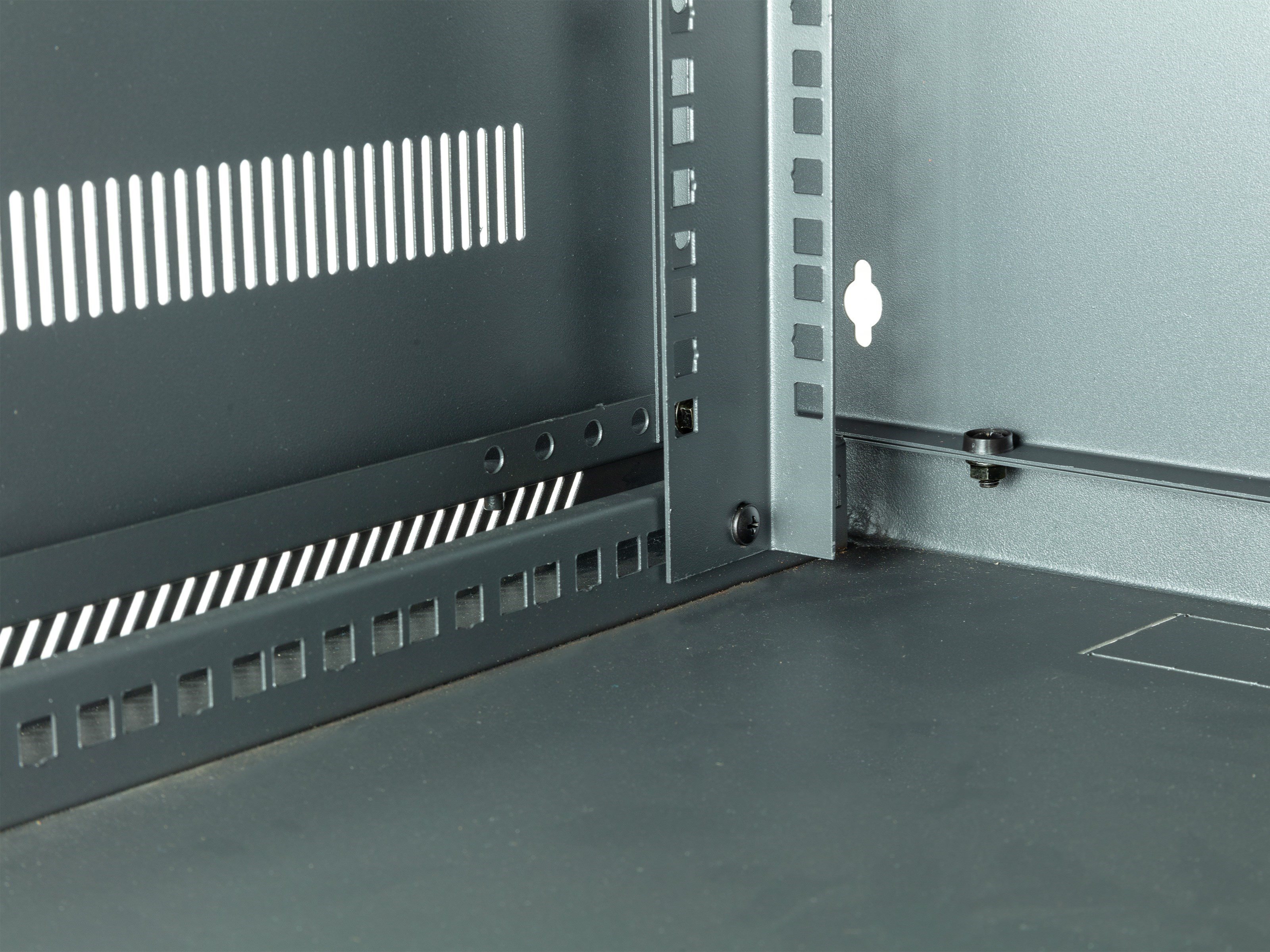

Get organized with the 12U 201 Series of Wall Mount Cabinets from Networx®. This cabinet comes equipped with some of the most requested features. Starting with the basics, this Wall Mount Cabinet is constructed with high quality SPCC Cold-Rolled Steel Panels. All Networx® Wall Mount Cabinets come with removable side panels, which include vents to keep equipment cool, to allow for quick access to sensitive networking equipment. All front panels swing out for easy access to loaded network equipment and include a window of 5mm Clear Acrylic. Included with this high quality Wall Mount Cabinet is a single 120mm fan for ideal air movement to keep network equipment cool and running at peak performance. Adjustable rails allow for full customization to allow a variety of networking equipment to fit securely. The rails are punched to allow for the installation of M6 Cage Nuts. Both Side Panels and Front Door are lockable with the included set of keys. Top/Bottom/Rear knockouts for cable entry and exit. All racks are designed to house 19" rack mountable equipment.

  • 12 M6 Cage Nuts
  • 12U Rack Mount Units
  • External Dimensions: Height 26.4" x Width 24" x Depth 24"
  • Designed for equipment with a 19" mounting profile

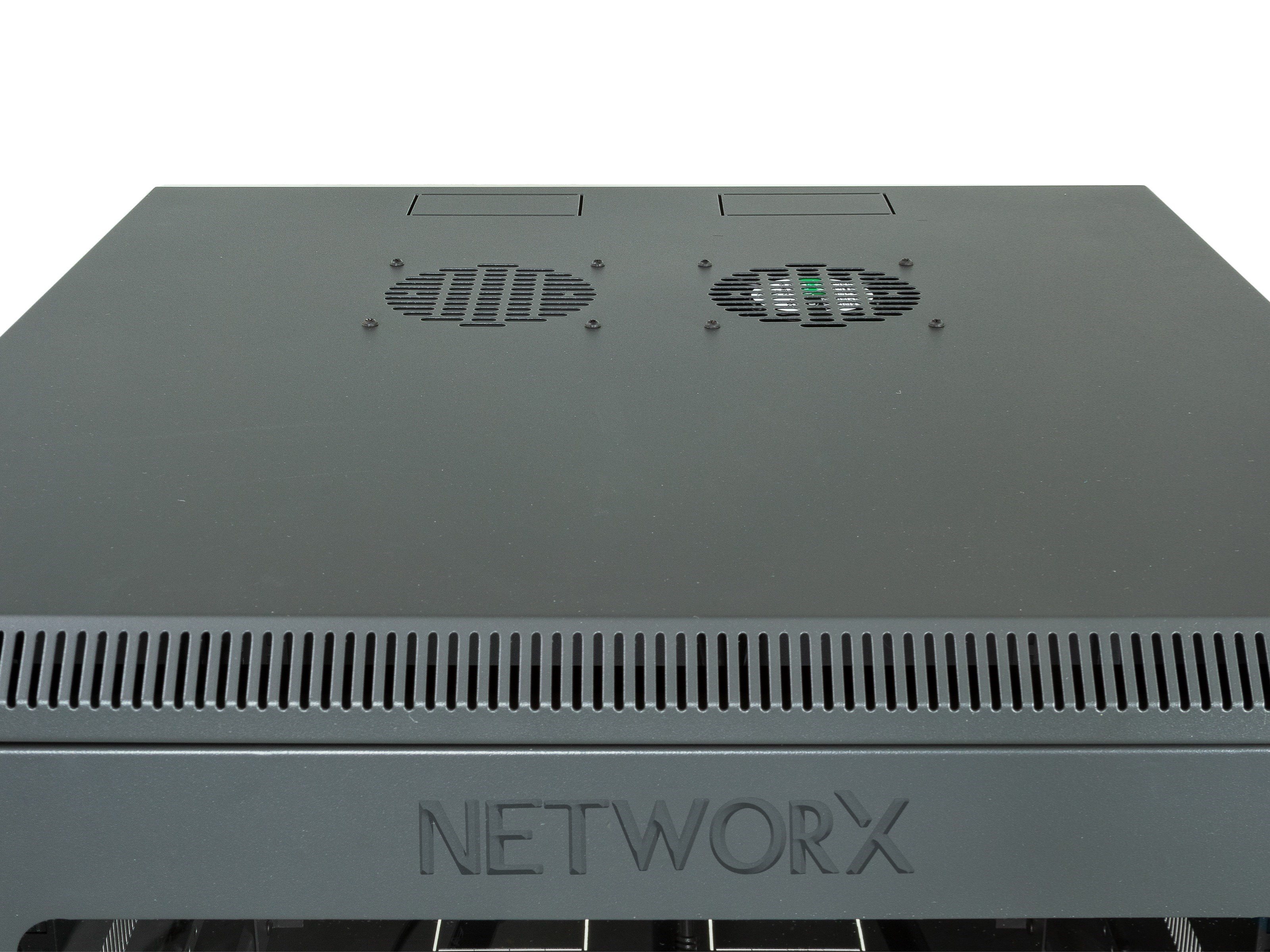

  • Vented Top/Sides/Front Panels for adequate airflow

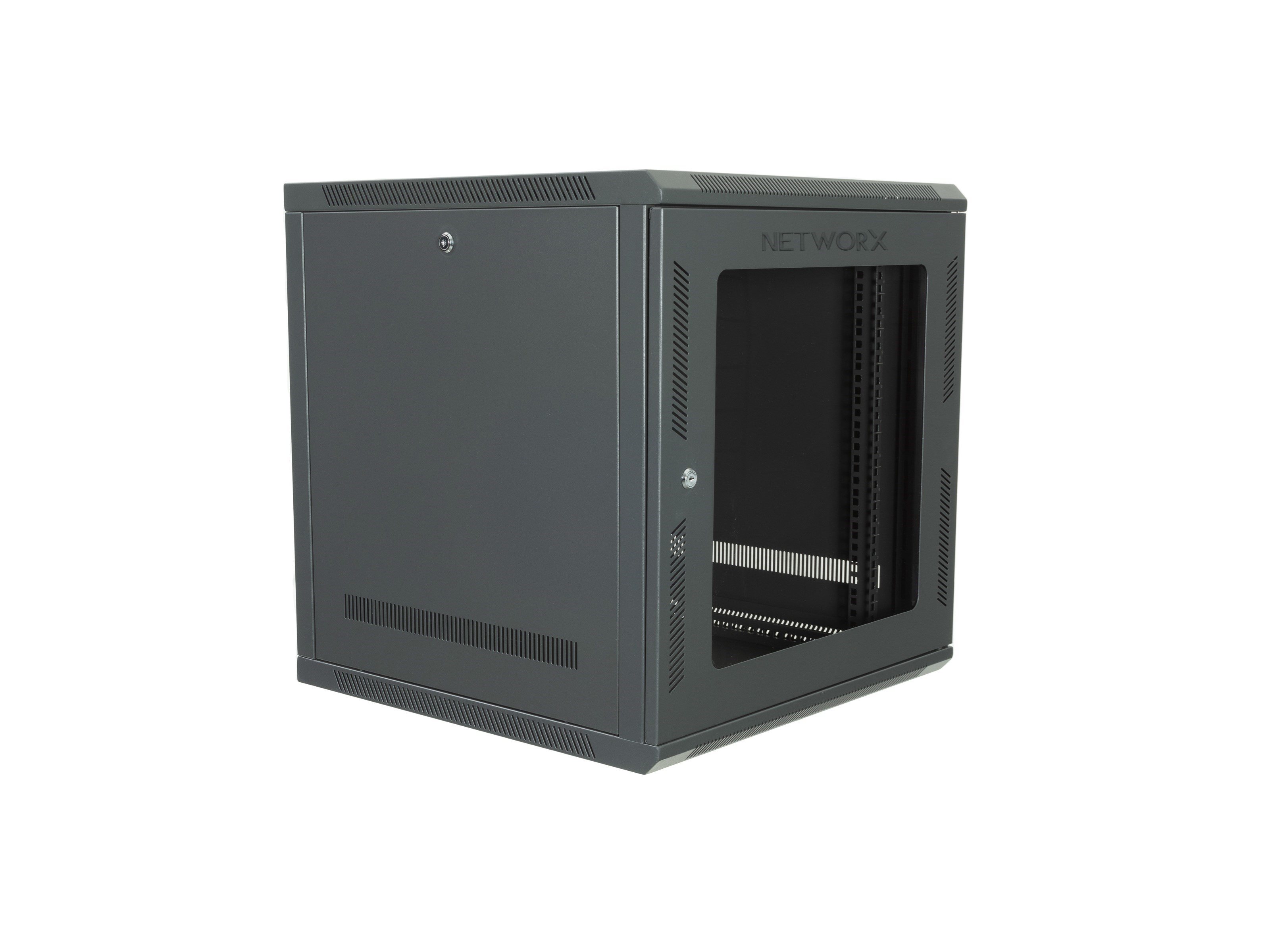

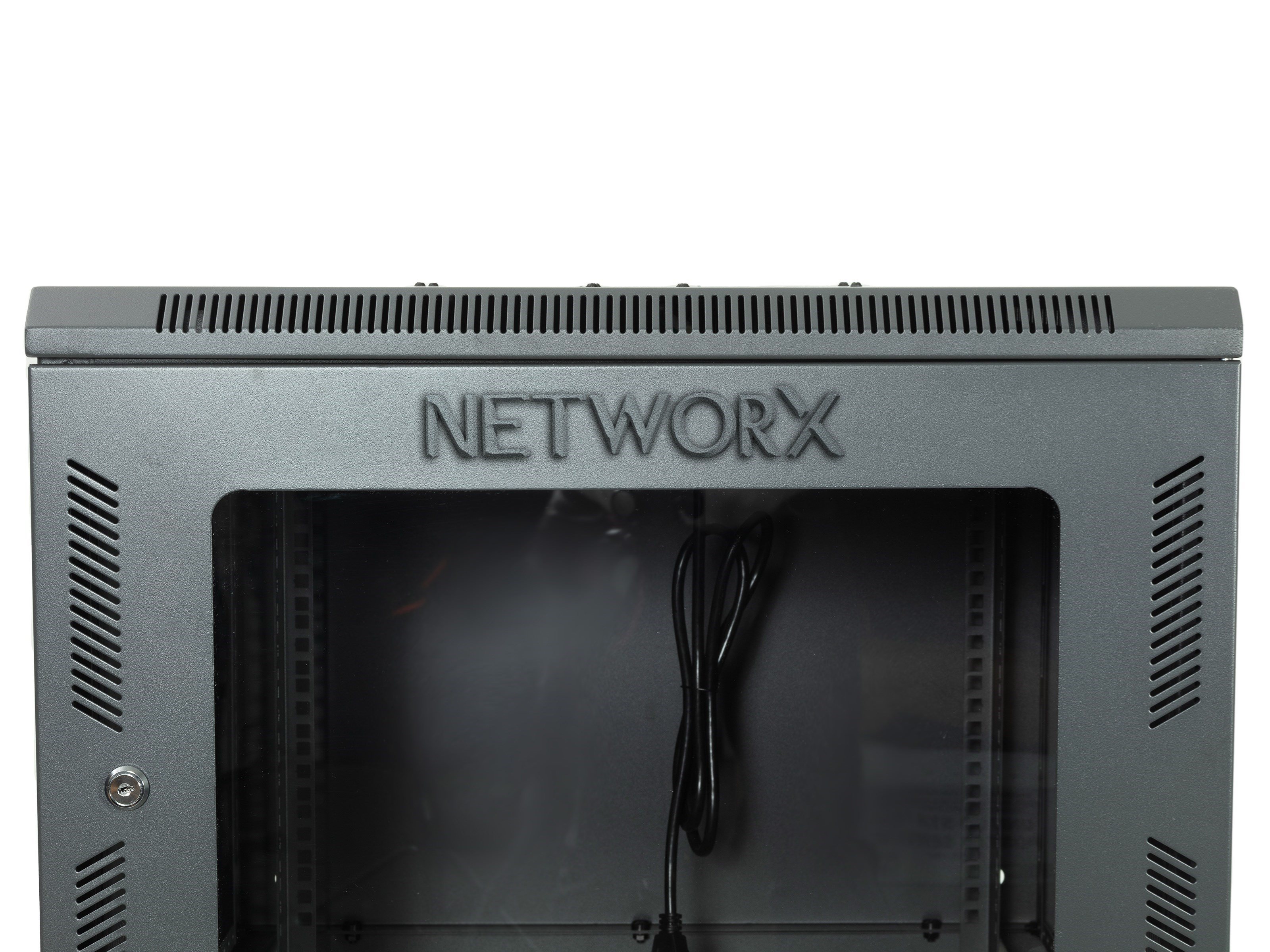

  • Reversible front door with Clear Acrylic window

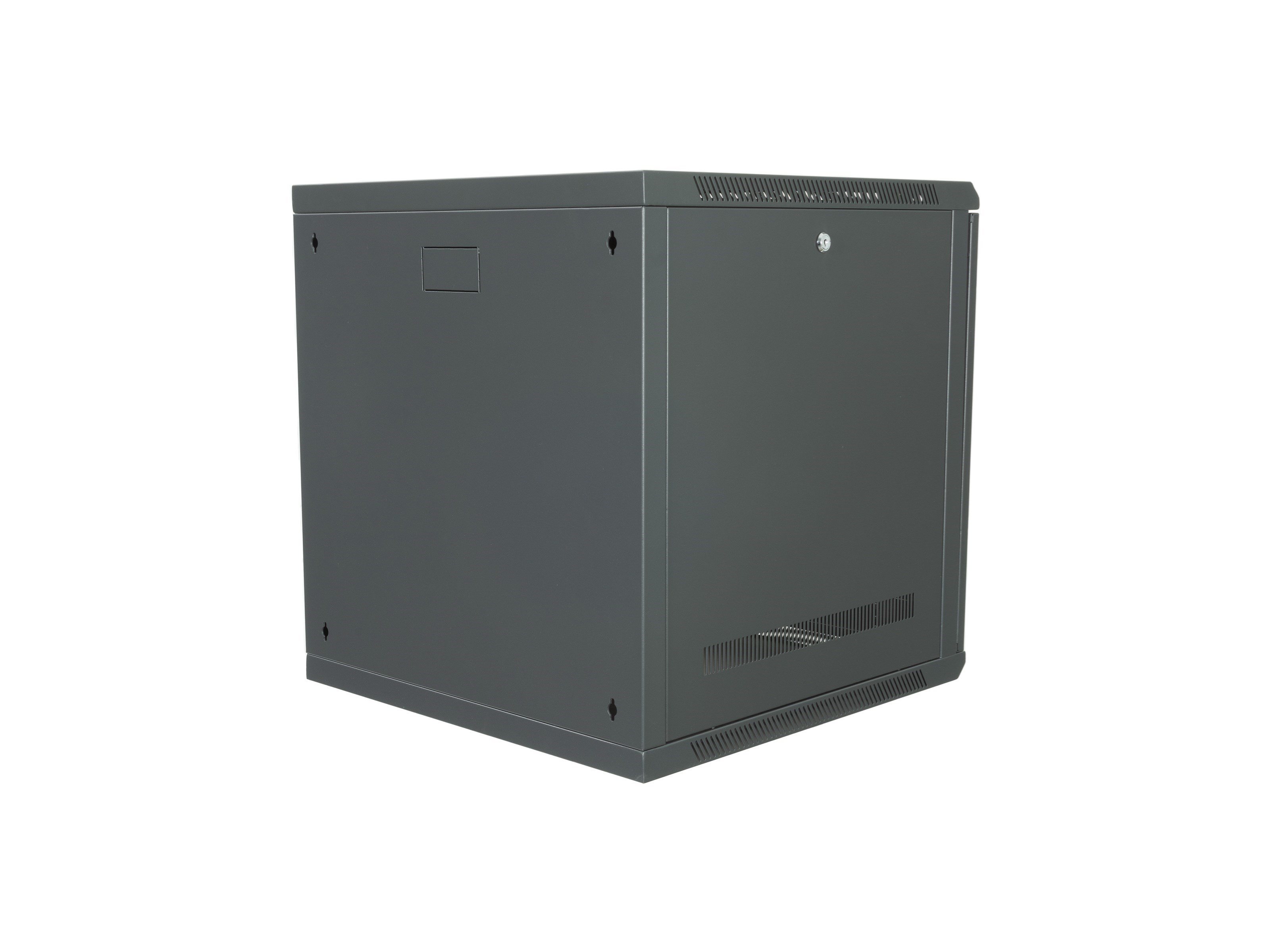

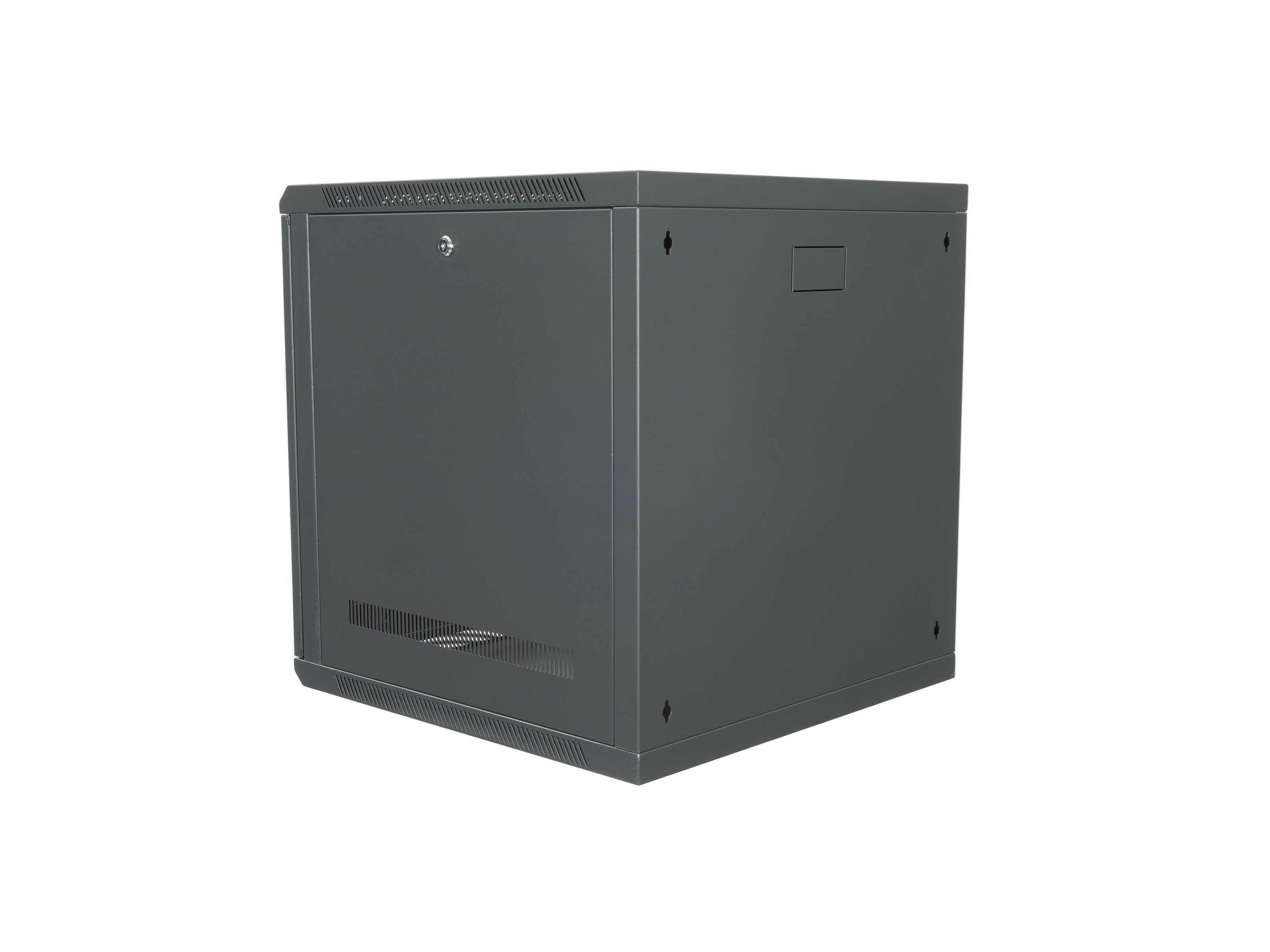

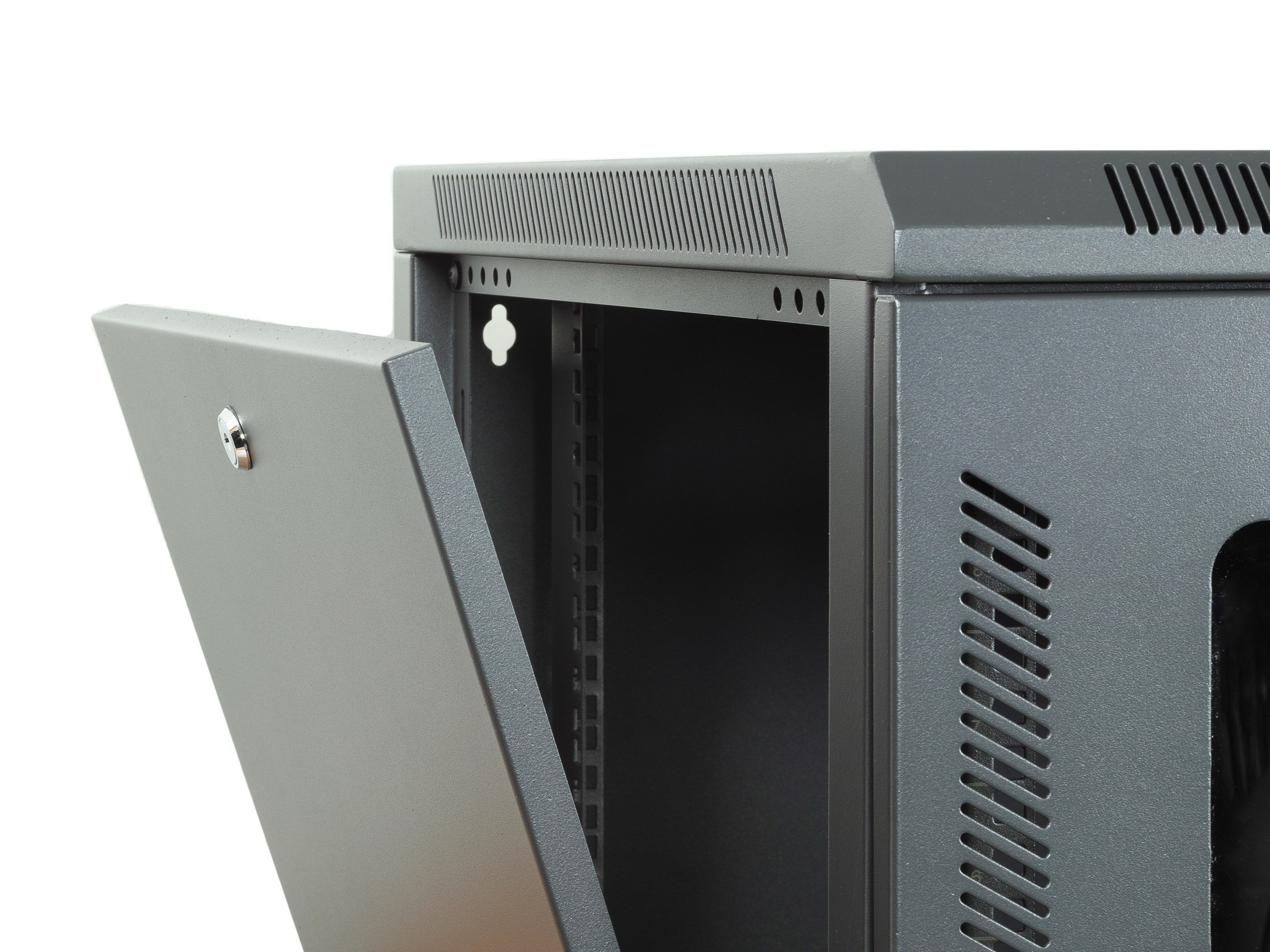

  • Removable side panels for easy access to equipment
  • Front and Side Panels are lockable with included set of keys
  • Top/Bottom/Real Knockouts for easy cable entry and exit
  • Supports up to 130lbs when secured properly
  • Flat Packed - Assembly Required
Customer Reviews
4.6 out of 5

Based on 8 reviews
5 star
75%
4 star
12%
3 star
12%
2 star
0%
1 star
0%
Guest
Understand the limitations
RMU: 18U
The 18U cabinet was what we needed due to height limitations in a recent install, and was the only cabinet I could find that fit the bill. Unfortunately the weight capacity is optimistic at best. We added a 45 lb UPS unit in the bottom of the cabinet, and found that the side panels needed to be in place to maintain the structural integrity of the cabinet. It could be easily addressed by the manufacturer if they added a couple of diagonal braces inside the cabinet, but I would say the practical limit is more like 50 lbs of gear max. Otherwise it is a decent cabinet.
Juan Carlos
Good case, instructions to assembly are not very clear
RMU: 6U Verified Purchase
This is a very good case to fit a HikVision NVR, is deep enough to hold the unit. Has also nice side doors and good overall quality. Only reason I won't give five stars is for poor assembly instructions.
John
Wall mount cabinet
RMU: 18U Verified Purchase
My cabinet is well built and shipping was quick. I was disappointed that it only has one fan with space for two but its still perfect. I wish the glass was tinted but also not an issue. I give it a 9 out of 10
Kelley
Great product and service
RMU: 12U Verified Purchase
Very nice wall-mounted cabinet, came well packaged and easy to assemble. Very sturdy. Great price point. Bonus points to the CSR who changed my shipping to a "gentler" option at no additional cost to avoid damage. Love this company and the Networx Line
Michael
Excellent cabinet
RMU: 12U Verified Purchase
Bang for yourself buck. Quality is great almost didn’t believe it.
Products specifications
Cage Nut Rails Front & Rear
Color Black
Internal Mounting Format 19"
Key Lock Set (2 Keys per Set) 1 Set
Load Capacity 130 lbs
Locking Side Panels Yes
Manufacturer Networx®
Preinstalled 80CFM 110V Fans 1
Rack Size Depth (Internal) 24" (20")
Rack Size Width (Internal) 24" (19")
Reinforced Door Frame Yes
RMU 12U
Structure & Fabrication SPCC Cold-Rolled Steel Sheets
Vented Side Panels Removable
Hinged Swing Out Design No
Delivery Style Flat Packed
Door Style Clear Acrylic
Color Gray
Key Lock Set (2 Keys per Set) 2 Set
Revision Rev. 3
Rack Height (Assembled) 26.4 Inch
SKU WMC-S201-12U
GTIN 00845425023148
Weight (Lbs) 58.00
