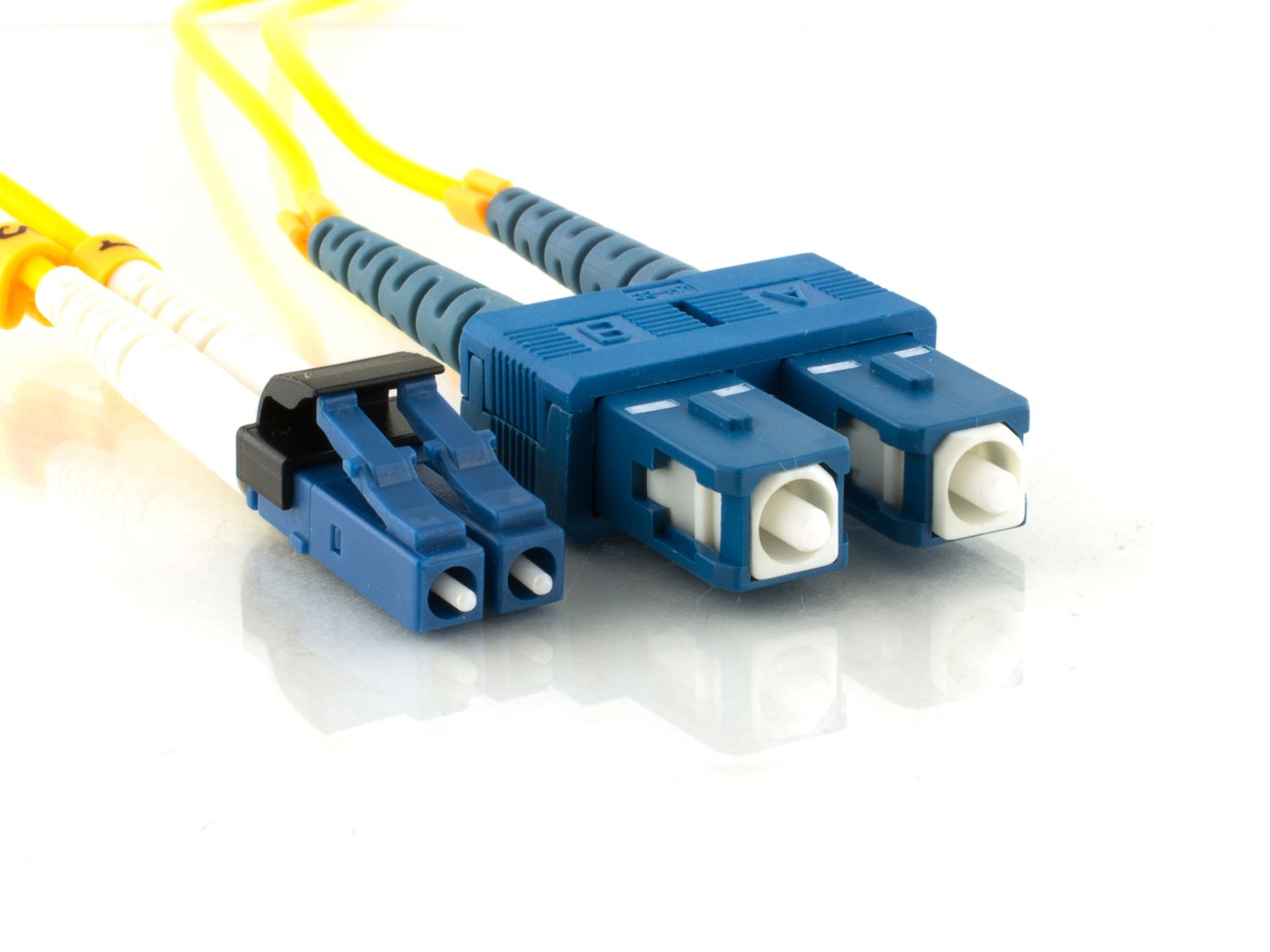

10m Singlemode Duplex Fiber Optic Patch Cable (9/125) - Mini LC to SC

SKU: FP-LCMSC1SD9-010
GTIN: 00845425028631

$14.76
$16.40 (10% off)
01/31/25

This 10m Singlemode Duplex Fiber Optic Patch Cable (9/125) - Mini LC to SC is built with genuine Corning Glass, has ceramic ferrules and a 9/125 micron core, this cable is suitable for high speed, high bandwidth, far-reaching telecommunications such that you would find in long-distance telephony and cable tele... read more
Description
Networx® top quality, high-speed 10m Singlemode Duplex Fiber Optic Patch Cable (9/125) - Mini LC to SC cables will unleash the power of your telecommunications system. With ceramic ferrules and a 9/125 micron core, this cable is suitable for high speed, high bandwidth, far-reaching telecommunications such that you would find in long-distance telephony and cable television applications.  These fibers operate at the 1310 nm or 1550 nm transmission windows. Each jumper cable is constructed using Genuine Corning Glass and shipped in individually sealed bags to ensure they arrive in perfect condition. Test results for the individual patch cable will be included in each bag. Color coded connectors assist with identification during the installation process to make installation easy for anyone.

  • Core Diameter: 9/125 micron
  • Insertion loss: typically <0.10 dB (LC); 0.10 dB (SC/UPC)
  • Return loss: ≥50 dB
  • Ceramic Ferrules for increased durability
  • FOCIS-3 TIA/EIA-568-B.3 compliant
  • Connectors: (LC/UPC) Small form factor with latch; (SC/UPC) Molded body with push-pull locking (snap-in)
  • Used primarily for high bandwidth, long-distance telecommunications
  • Ultra Physical Contact (UPC) Polished Fiber
  • Built with Corning Glass

Products specifications
Color Yellow
Connector A LC Mini Male
Connector B SC Male
Core Size 9/125
Fiber Type Singlemode
Manufacturer Networx
Warranty Lifetime Warranty
UL Listed Yes
RoHS Compliant Yes
Length 10 Meter
Fiber Classification OS2
Fiber Standard G.657.A1
SKU FP-LCMSC1SD9-010
GTIN 00845425028631
Weight (Lbs) 0.34
