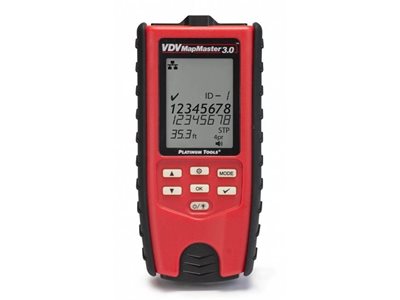

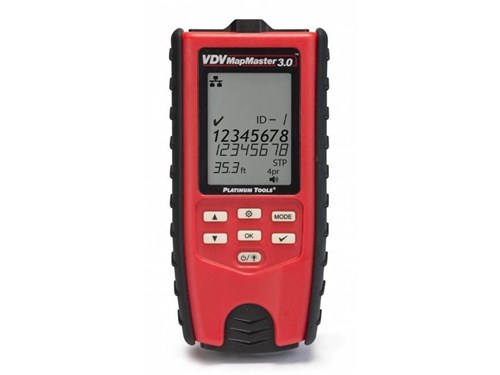

VDV MapMaster 3.0™

by Platinum Tools®

The VDV MapMaster™ 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The backlit display, glow-in-thedark keypad and a built-in flashlight helps you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 makes it a best value cable verifier for the professional installer... read more

SKU: T130

GTIN: 849160008750

Manufacturer: Platinum Tools®

$139.11

Qty:

Description

The VDV MapMaster™ 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The back-lit display, glow-in-the dark keypad and a built-in flashlight helps you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 makes it a best value cable verifier for the professional installer!

Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses and split pairs
Single-ended Testing for Shorts & Split Pairs
Measures Length in Feet/Meters
Identifies cable location on active ports using flashing Port Link Light
Easy to read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas
Identify up to 20 network or coax cable runs at a time
Audible Tone Generator, 4 selectable cadences
Tests Voice (6 wire), Data (8 wire) and Video (coax)
Works with Cable Tester Smart Remotes (#1-8)
Made in USA with global components

Customer Reviews

5 out of 5

Based on 3 reviews

5 star

100%

4 star

3 star

2 star

1 star

Write a Review

Tony

Mapmaster 3.0

Reviewed on Wednesday, August 21, 2019

Great product.

Guest

Does what you need.

Reviewed on Saturday, November 27, 2021

For basic cable trace and split, breaks or mis wire this tool gets the job done

Guest

Good price and good functionality

Reviewed on Wednesday, June 5, 2019

I used several cable testers in the past ,none of them can compare to the Mapmaster 3.0 because of all the features and price. If you are a data/voice tech then you should have this tester in your bag.

Read all 3 reviews

Products specifications

Battery	Active: 425 hours
Cable Types	Shielded or Unshielded; Cat7, Cat6A, Cat5e, Cat5, Cat4, Cat3, Coax
Default Length Constant	Voice: 17.4 pF/ft
Dimensions	6.8” x 3.2” x 1.4”
Features	Voice (Twisted pair): 17.4 pF/ft Video (Coax): 16.5 pF/ft Data (Twisted pair): 15 pF/ft
Humidity	10% to 90%, non-condensing
Length Accuracy Without Length Constant Accuracy	± 3% plus ± 1 foot
Maximum RJ Cable Length Testing	0 to 1,000 feet
Maximum Voltage	RJ12/RJ45/F: 50V DC or AC
Measurement Technology	Capacitance testing
Minimum Cable Length for Split Pair Detection	1.5 feet
Temperature	Operating Temperature: 32˚F to 122˚F (0˚C to 50˚C)
Manufacturer	Platinum Tools®
SKU	T130
GTIN	849160008750
Weight (Lbs)	1.00
