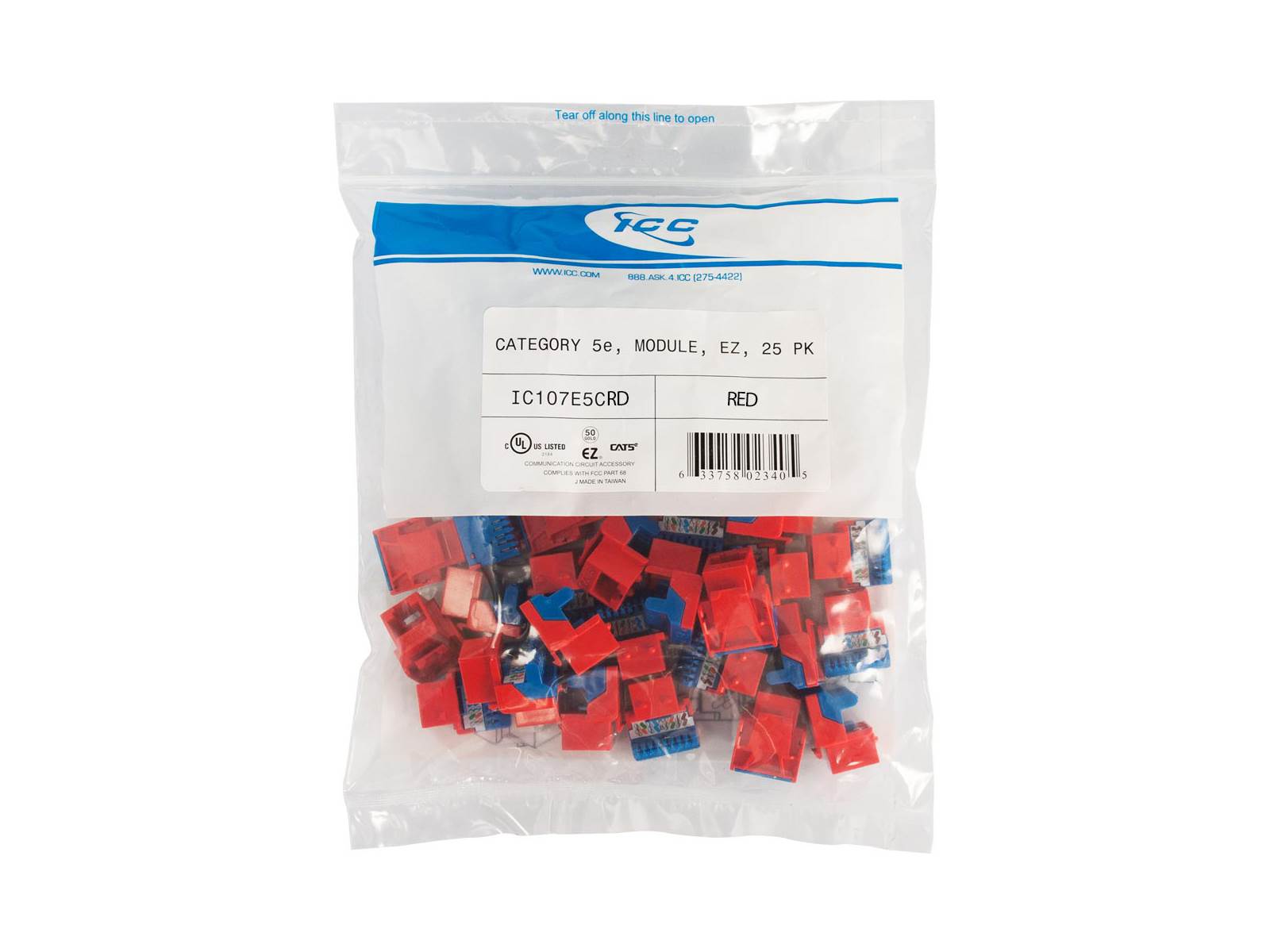

Module Cat 5e Ez 25 Pk Red

The 25-pack EZ Category 5e modular connectors, RJ-45 keystone jacks, are 8-position 8-conductor (8P8C) and are packaged in bags with a reseal able strip allowing the bags to be reused multiple times preventing loss or mixing of colors or types of connectors. The bags have a clear lower area allowing for easy part identification.
1. CAT 5E MODULE: A. ELECTRICAL: CURRENT RATING: 1.5 AMPS INSULATION RESISTANCE: 500 MOHMS MIN CONTACT RESISTANCE: 20 MOHMS MAX DC RESISTANCE: 0.1 OHM MAX TRANSMISSION PERFORMANCE EXCEEDS CATEGORY 5E CONNECTING HARDWARE REQUIREMENTS SPECIFIED IN TIA/EIA-568-B.2 WHEN USED WITH COMPATIBLE HORIZONTAL CABLE B. MECHANICAL: PLUG INSERTION LIFE: 750 CYCLES MIN PLUG&JACK CONTACT FORCE: 100 GRAMS MIN USING FCC APPROVED PLUG PLUG RETENTION FORCE: 30 LBS MIN TEMPERATURE: -40 degree TO 150 degree F (-40 degree TO 68 degree C) C. PHYSICALS: HOUSING: ABS, UL 94V-0 JACK WIRING: 50 MICRO INCHES OF GOLD OVER 100 INCHES OF NICKEL CONNECTOR: INSULATION DISPLACEMENT CONNECTOR (IDC) ACCEPTS 22~24 AWG SOLID WIRE COLORS: XX: BK-BLACK, BL-BLUE, GY-GRAY, IV-IVORY, OR-ORANGE, RD-RED, &WH-WHITE 2. TERMINATION CAP: MATERIAL: PC, UL 94V-0 COLOR: LIGHT BLUE

• CAT 5e rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
• PCB technology provides maximum performance and superior signal quality
• Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
• Exceeds ANSI/TIA/EIA-568-B.2 Category 5e connecting hardware requirements
• Engineered to provide 110 IDC termination reducing installation time
• One piece termination cap allows for a quick and easy termination
• Includes an integrated TIA-568A/B color wiring diagram
• Backwards compatible to all lower rated category components
• Compatible with all IC107 faceplates, inserts, surface mount boxes, and blank patch panels
• Compatible with all IC108 furniture faceplates, bezels, and surface mount boxes
• Used with ICC Category 5e ICPCS5 and ICPCS9 series patch cords and 110 punch down tool ICACSPDT00
• Available in black, blue, gray, ivory, orange, red, and white
• 25 modules packaged in packaging bag with 25 termination caps packaged in a separated bag and included in packaging bag
• Installation instructions #MSR-0399-2 included in packaging bag
