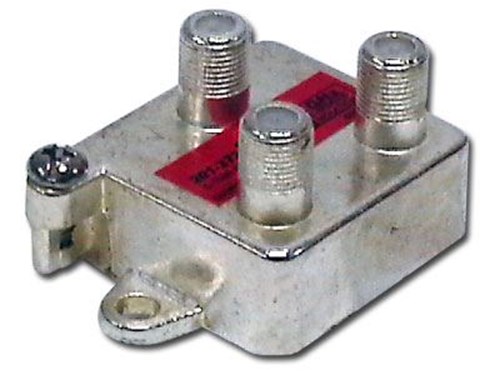

Coaxial Splitter - CATV F-Type - Vertical - 2 Way - 1GHz 130dB

Coaxial Splitter - CATV F-Type - Vertical - 2 Way - 1GHz 130dB from Computer Cable Store™. This 2-Way 1GHz 130dB Vertical F Splitter is suitable for Cable TV (CATV) or antenna applications for RF distribution ranging from 5 to 1000 MHz. These Splitters have an anti-corrosion Silver plated Zinc-Alloy die cast hous... read more
SKU: 9-F2WV1GHZ
In stock
$2.39
Volume Discounts
Quantity 10+ 25+ 50+
Price $2.34 $2.29 $2.24
Description

Coaxial Splitter - CATV F-Type - Vertical - 2 Way - 1GHz 130dB. This 2-Way 1GHz 130dB Vertical F Splitter is suitable for Cable TV (CATV) or antenna applications for RF distribution ranging from 5 to 1000 MHz. These Splitters have an anti-corrosion Silver plated Zinc-Alloy die cast housing and high performance printed-board circuitry to ensure maximum quality. Vertical port design allows close mounting in lock boxes for easy access of cable connections

  • 2 Way F-Type Vertical Splitter - 1 GHz
  • Insertion Loss 3.9dB max
  • Port Isolation 27dB min
  • Input Return Loss 25dB min
  • 130dB minimum RFI Shielding
  • High Performance Printed-Board Circuitry
  • Anti-Corrosion Silver Plated Zinc-Alloy Cast Housing
  • DC Power blocked to all ports
  • Mounting Screws Included
  • Digital Ready
Products specifications
Connector A F-Type Female
Connector B F-Type Female
Frequency Range 5-1000 MHz
Color Silver
Input 1 Port
Output 2 Port
SKU 9-F2WV1GHZ
Weight (Lbs) 0.20
