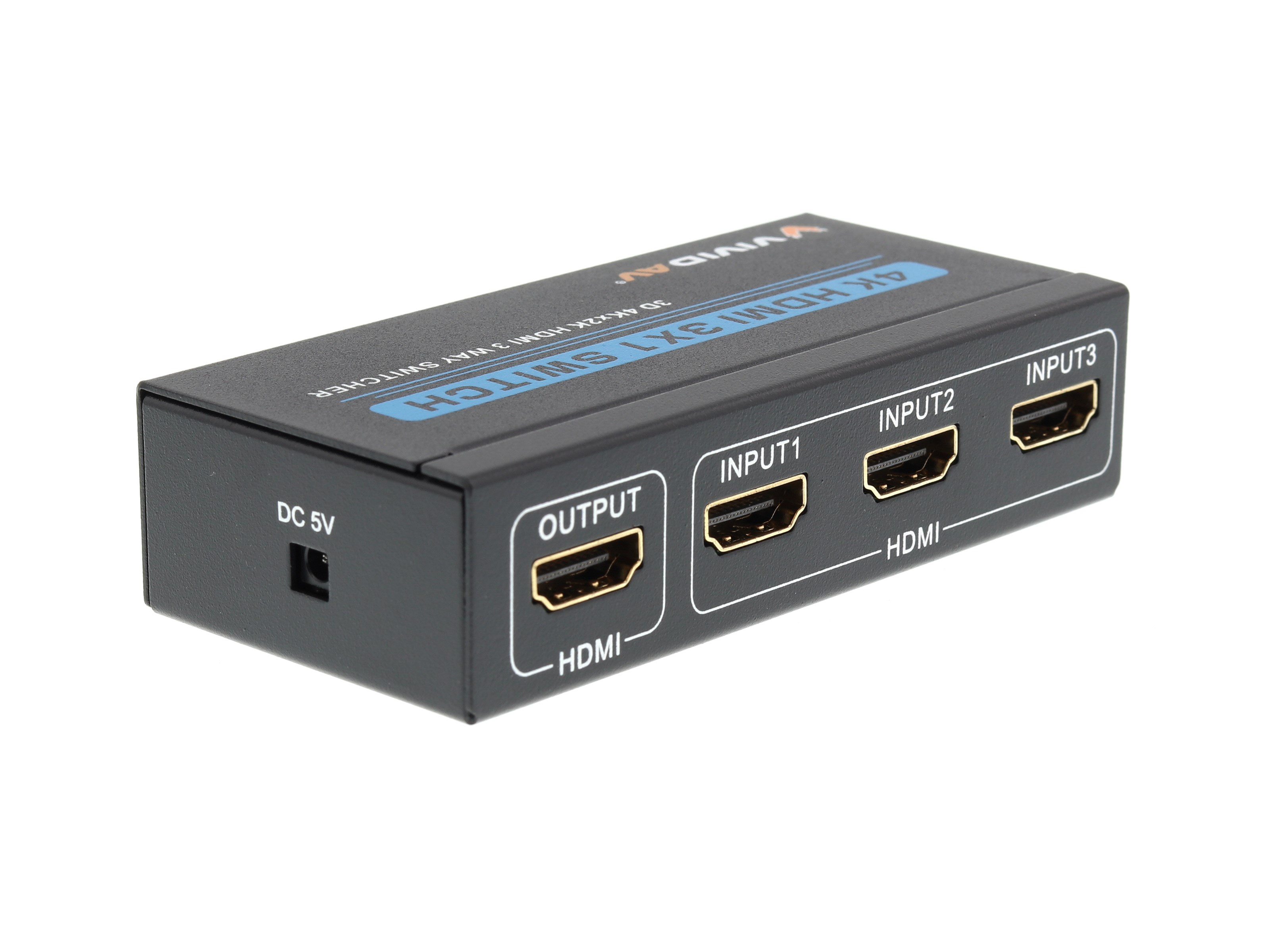

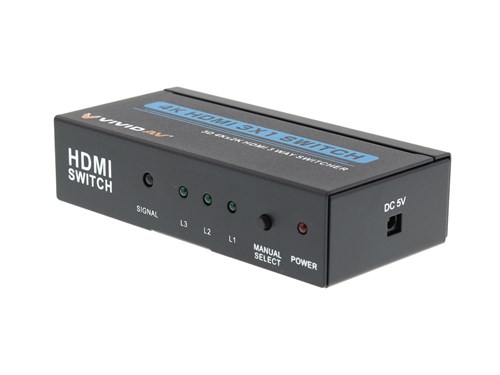

3x1 HDMI Switch - Full HD, 3D, Ultra HD, 4K, IR Remote Control

by Vivid AV®
Push HD Video to the limits with this 3 to 1 HDMI Switcher from Vivid AV... read more
SKU: AV-HDMISW301
GTIN: 00845425023032
Manufacturer: Vivid AV®
Inputs Options:
Inputs 3x HDMI, HDMI Version HDMI 2.0 3x HDMI HDMI 2.0 Inputs 5x HDMI, HDMI Version HDMI 2.0 5x HDMI HDMI 2.0
Inputs 3x HDMI, HDMI Version HDMI 1.4 3x HDMI HDMI 1.4
In stock
$20.09
Volume Discounts
Quantity 10+ 25+ 50+
Price $19.68 $19.28 $18.88
Description

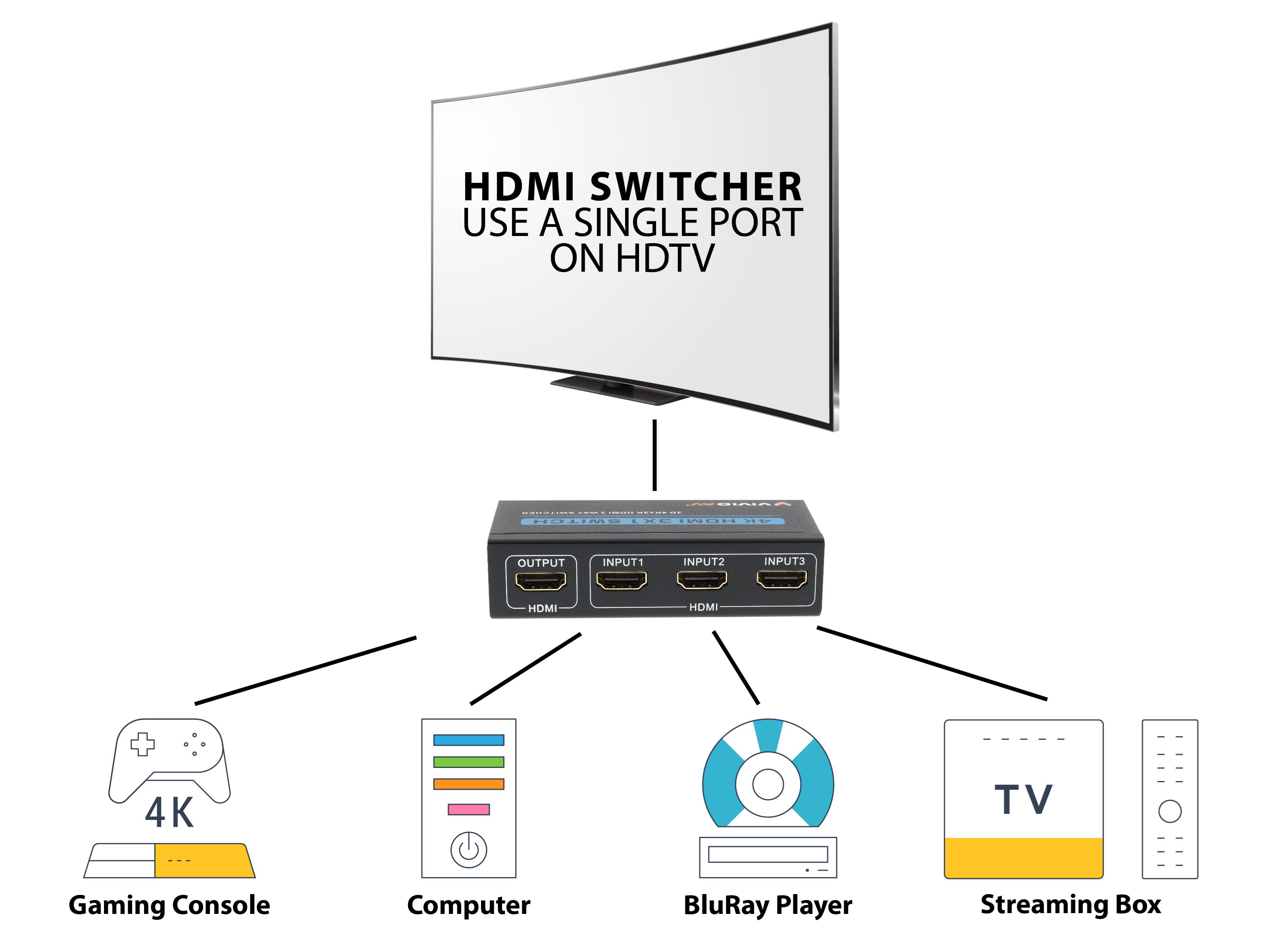

High performance HDMI switches from Vivid AV® offer an easy solution when needing to add extra HDMI ports to a TV or Monitor. The AV-HDMISW301 is a 3 port HDMI switch will allow easy switching from one device to another with the simple press of a button. With the digital landscape changing constantly, it is hard to keep up with all of the new technologies. This HDMI switch has Full HD (1080p), 3D, Ultra HD(4K), and HDCP support. Audio will never be a problem here, the AV-HDMISW301 supports uncompressed audio such as LPCM and many uncompressed formats such as DTS Digital, Dobly Digital, DTS-HD and Dolby True HD.

  • Installs in seconds
  • 3 Inputs to 1 Output
  • Intelligent or Push button switching
  • Full HD 1080p Support
  • 250Mhz/2.5 Gbps per channel (10.2 Gbps total) bandwidth
  • 48bit deep color
  • HDCP Compliant
  • DTS Digital, Dobly Digital, DTS-HD, Dobly True HD
Reviews
5 star (0)
0%
4 star (1)
100%
3 star (0)
0%
2 star (0)
0%
1 star (0)
0%
Overall rating 4.0
Based on 1 reviews
Simple, works great!
I like it, with one exception. Nowhere does it say anything about the IR remote dongle at the front of the panel. I looked at many and bought this because (I thought) all the necessary connections were in the rear. Even after opening it, I had hopes that the dongle was only an "extension", but it is absolutely required for remote use. Oh well, it's installed and working (great, too) but stashed behind my one of my towers because of this cabling snafu.
Was this review helpful? Yes (0/0)
Read all 1 reviews
Products specifications
Color Black
Connector A HDMI A Female
Connector B HDMI A Female
Inputs 3x HDMI
Maximum Resolution 3840 x 2160
Outputs 1x HDMI
Supported Video Formats 480i, 576i, 1080i, 480p, 576p, 720p, 1080p, 4K
Vertical Frequency Range 60 Hz
Bandwidth 10.2 Gbps
Deep Color Support 48 bit
Audio Format DTS Digital, Dolby Digital, DTS-HD, Dolby True HD, LPCM
3D Support 720p @ 60Hz/50Hz, 1080p @ 24Hz
HDMI Version HDMI 1.4
Warranty 3 Year Warranty
Manufacturer Vivid AV®
SKU AV-HDMISW301
GTIN 00845425023032
Weight (Lbs) 0.64
