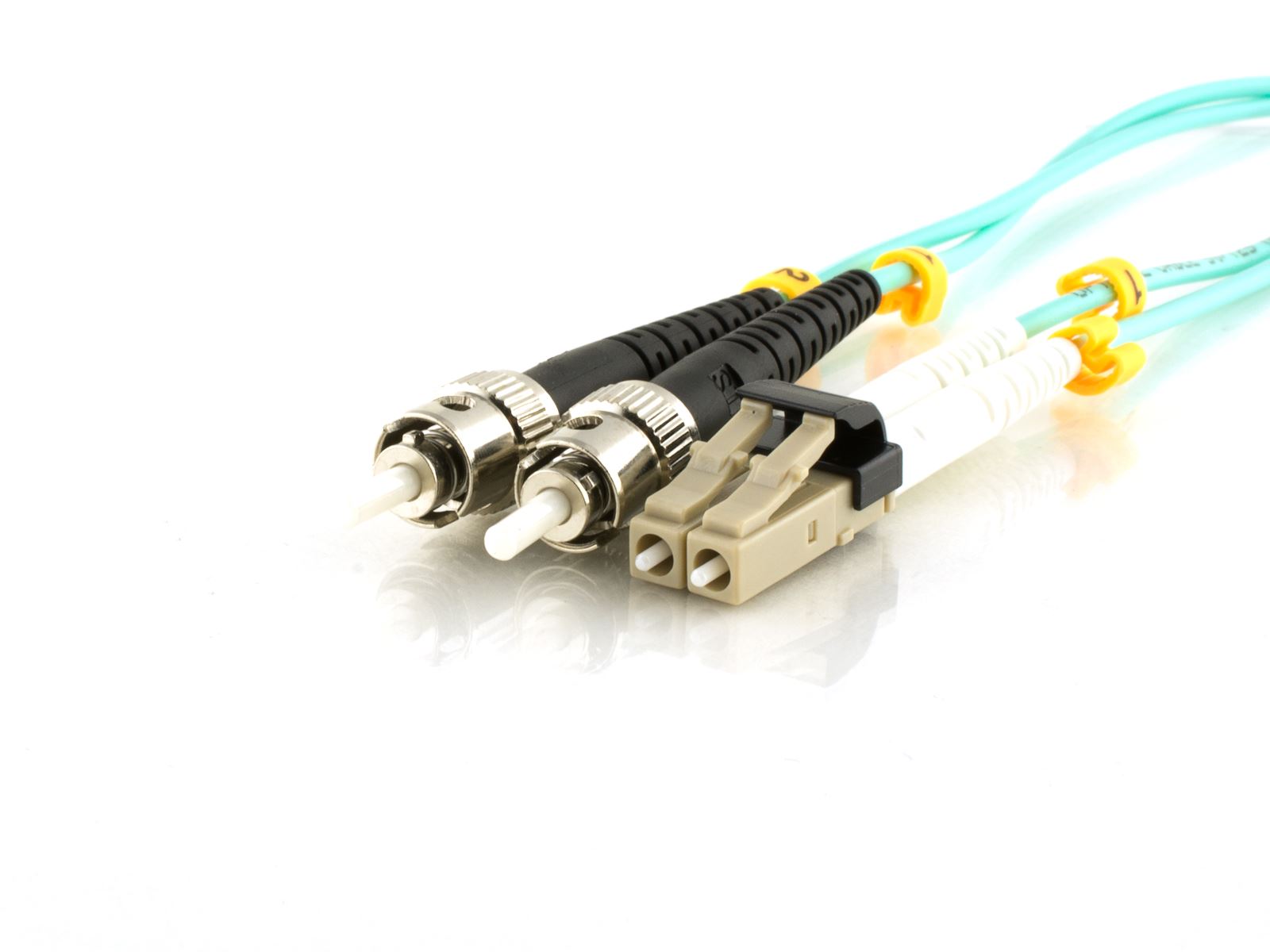

30m Multimode Duplex Fiber Optic Patch Cable (50/125) OM3 Aqua - Mini LC to ST

by Networx™
This 30m Multimode Duplex Fiber Optic Patch Cable (50/125) OM3 Aqua - Laser Optimized - Mini LC to ST is built with genuine Corning Glass, has ceramic ferrules and a 50/125 micron core, this cable is suitable for extremely high speed data transmissions such that you would find in 10 Gigabit Ethernet (10 Gb/s) networks. This 10 Gig fiber Read More
Lifetime Warranty

This product is covered by a Lifetime Warranty. If, for some reason, your product ever fails, we will replace it free of charge. Terms and Conditions apply, click here for more info.

SKU: FP-LCMST3MD5-030
$36.24
Networx™ top quality 30m Multimode Duplex Fiber Optic Patch Cable (50/125) OM3 Aqua - Laser Optimized - Mini LC to ST, high-speed Multi-mode Optical Fiber cables will unleash the power of your Local Area Network. With ceramic ferrules and a 50/125 micron core, this cable is suitable for extremely high speed data transmissions such that you would find in 10 Gigabit Ethernet (10 Gb/s) networks. This 10 Gig fiber is OM3 Laser-Optimized. Each jumper cable is constructed using Genuine Corning Glass and shipped in individually sealed bags to ensure they arrive in perfect condition. Test results for the individual patch cable will be included in each bag. Color coded connectors assist with identification during the installation process to make installation easy for anyone.

  • Optical multimode 3 (OM3) compliant for 10-Gigabit Ethernet support
  • Core Diameter: 50/125 micron
  • Insertion loss: typically 0.30 dB
  • Return loss: >20dB
  • Vertical Cavity Surface Emitting Laser (VCSEL) optimized
  • Ceramic Ferrules for increased durability
  • FOCIS-3 TIA/EIA-568-B.3 compliant
  • Connectors: (LC/UPC) Small form factor with latch; (ST/UPC) Bayonet twist locking system
  • Used primarily for high speed data communications such as 10 Gigabit Ethernet
  • Ultra Physical Contact (UPC) Polished Fiber
  • Built with Corning Glass
Products specifications
ColorAqua
Connector ALC Mini Male
Connector BST Male
Core Size50/125
Fiber ClassificationOM3
Fiber TypeMultimode
ManufacturerNetworx™
Length30 Meter
WarrantyLifetime Warranty
RoHS CompliantYes
UL ListedYes
WarrantyLifetime Warranty
GTIN845425006417
Weight (Lbs)0.78
