24 Fiber 50/125µm OM4 Ultra-Fox Riser Aluminium Interlocked Armor Aqua Jacket - 1000 FT

SKU: DX024DALE9QRI2-10

$4,500.00

The 24 Fiber 50/125µm OM4 Ultra-Fox™ Riser Aluminium Interlocked Armor Aqua Jacket - 1000 FT is used in trunking, LAN, and distribution applications where small size, lightweight, and versatile installation capability are required... read more

Description

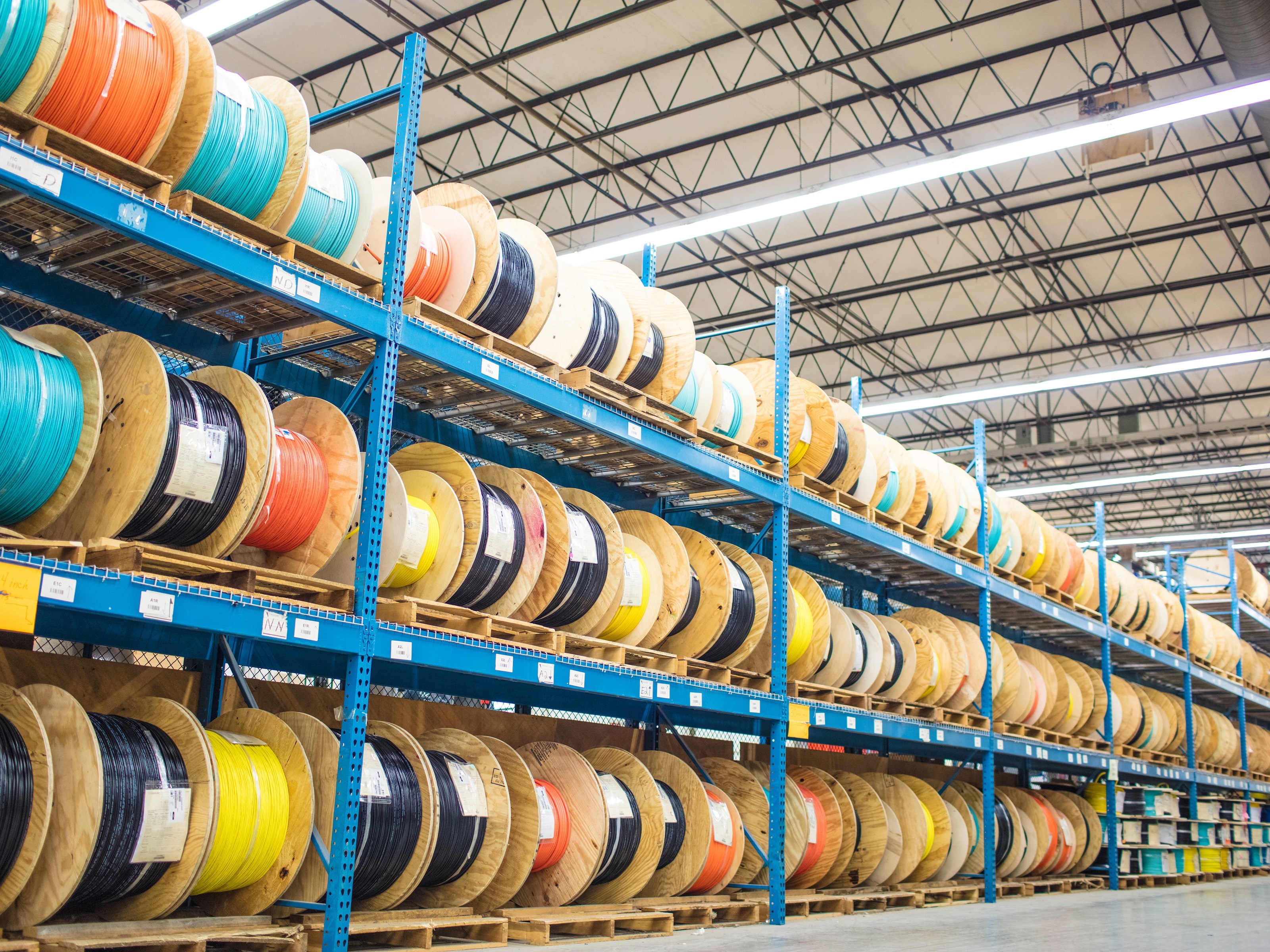

Looking for larger lengths? Most bulk fiber is available in reels up to 13,000 Feet. Give us a call at 800-626-6622 to get a quote.

24 Fiber 50/125µm OM4 Ultra-Fox™ Riser Aluminium Interlocked Armor Aqua Jacket Indoor/outdoor tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types. Ideal configuration for a single termination point requiring multiple fibers. 900μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber. No need to splice outdoor cable to indoor cable at building entranceHigh crush resistance may eliminate the need for innerduct.
  • Features
    • High performance components and construction
    • Cable materials are indoor/outdoor - UL-listed OFNR and UV, water and fungus resistant
    • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
    • Wide operating temperature range of -40°C to +85°C
    • Helically stranded core for greater flexibility and mechanical protection of the optical fibers
    • High strength-to-weight ratio
    • 2-144 fiber configuration is smaller and lighter than comparable sub-grouped cables made by others: ideal for installation in areas with limited space or tight bends
    • Can be armored for additional protection in direct burial and aerial installations
    • Interlocking armor can be applied to cables as an alternative to conduit installation
  • Standards
    • UL 1651
    • UL 1666
    • GR-409-CORE
    • ICEA-S-104-696
    • ICEA-S-83-596
    • TIA-568
    • TIA-598
    • UL-listed type OFNR in accordance with NEC sections 770-179 (B) and 770-154 (B) for use in vertical runs in building riser shafts or from floor to floor. Meets or exceeds requirements for intra-building fiber optic cables as outlined in GR-409-CORE.
  • Fiber Specs
    • Fiber Count: 24
    • Core/Cladding Diameter (µm): 50/125
    • Numeric Aperture: 0.2
    • Wavelength (nm): 850/1310
    • Gigabit Ethernet Distance (m): 1040/600
    • 10-Gigabit Ethernet Distance (m): 5501/300ˆ2
    • Maximum Cabled Attenuation (dB/km): 3.0/1.03
    • Minimum Laser EMB Bandwidth* (MHz-km): 4700/500
    • Minimum OFL LED Bandwidth** (MHz-km): 3500/500

Products specifications

Color Aqua
Cable Rating Riser
Core Size 50/125
Fiber Type Multimode
Fiber Classification OM4
Wavelength 850/1310
Gigabit Ethernet Distance 1040/600 Meter
10-Gigabit Ethernet Distance 5501/300
Maximum Cabled Attenuation (dB/km) 3.0/1.03
Diameter 0.7 IN
Fiber Strands 24 Strand
Length 1000 FT
SKU DX024DALE9QRI2-10
Weight (Lbs) 161.00
