22U Adjustable Depth Open Frame Swing Out Wall Mount Rack - 301 Series, Flat Packed

by Networx®
Open up with this 22U Adjustable Depth Open Frame Swing Out Wall Mount Rack from Networx®... read more
SKU: WMR-S301-22U
GTIN: 00845425025340
Manufacturer: Networx®
RMU Options:
RMU 12U 12U RMU 18U 18U
RMU 22U 22U
In stock
$199.78
Volume Discounts
Quantity 2+ 10+ 25+
Price $195.78 $191.79 $187.79
Description

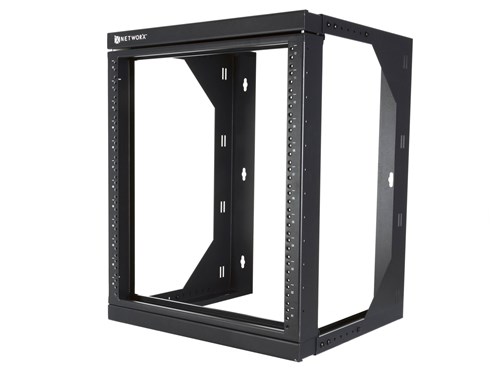

Get organized with the 22U 301 Series of Adjustable Depth Open Frame Swing Out Wall Mount Rack from Networx®. This rack offers a basic system for mounting networking equipment. Starting with the basics, this Wall Mount Rack is constructed with high quality SPCC Cold-Rolled Steel which can stand up to years of abuse. All racks are designed to house 19" rack mountable equipment.

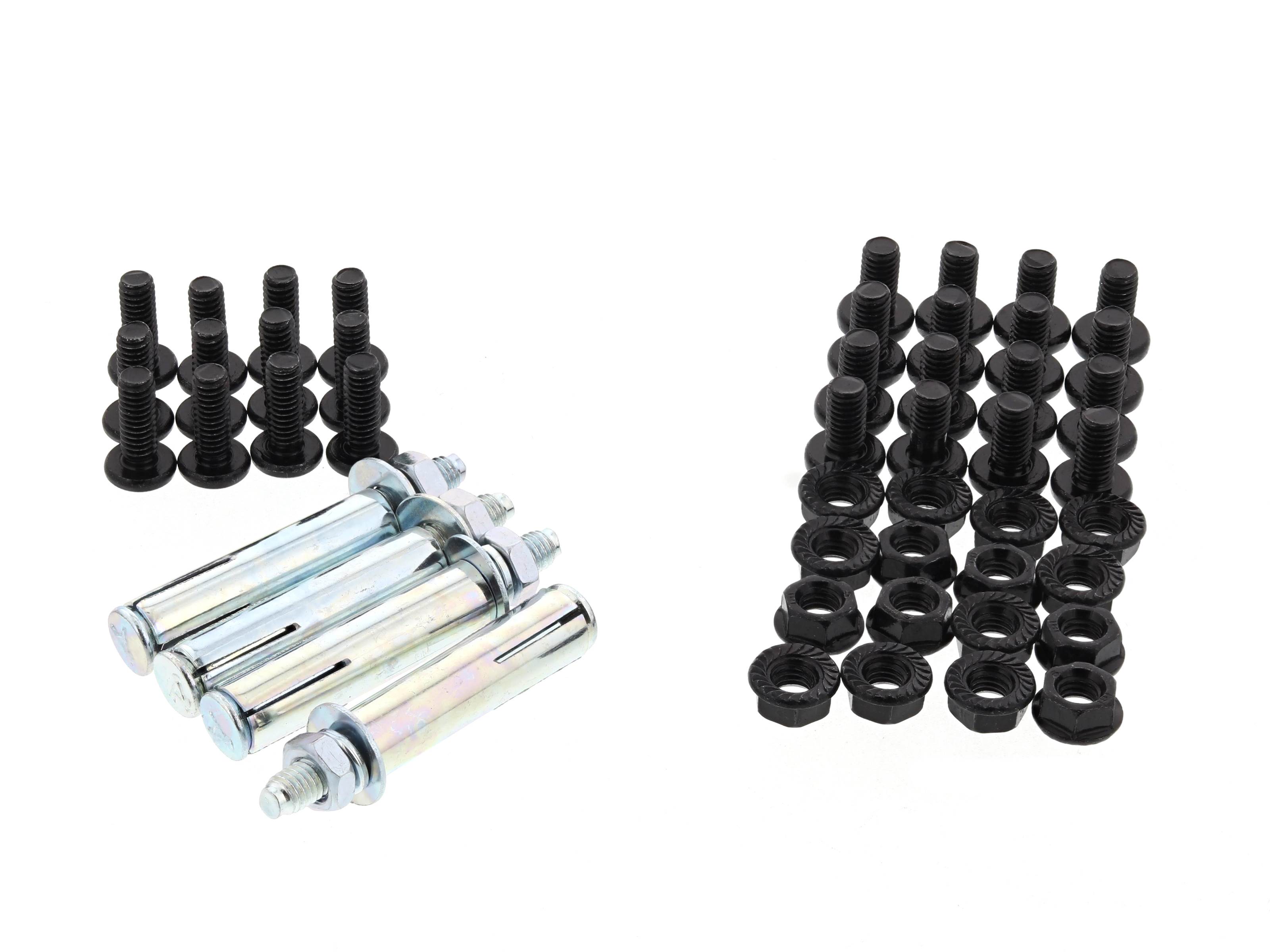

  • Twelve 12/24 Rack Screws
  • 4 Assembly Screws
  • 22U Rack Mount Units

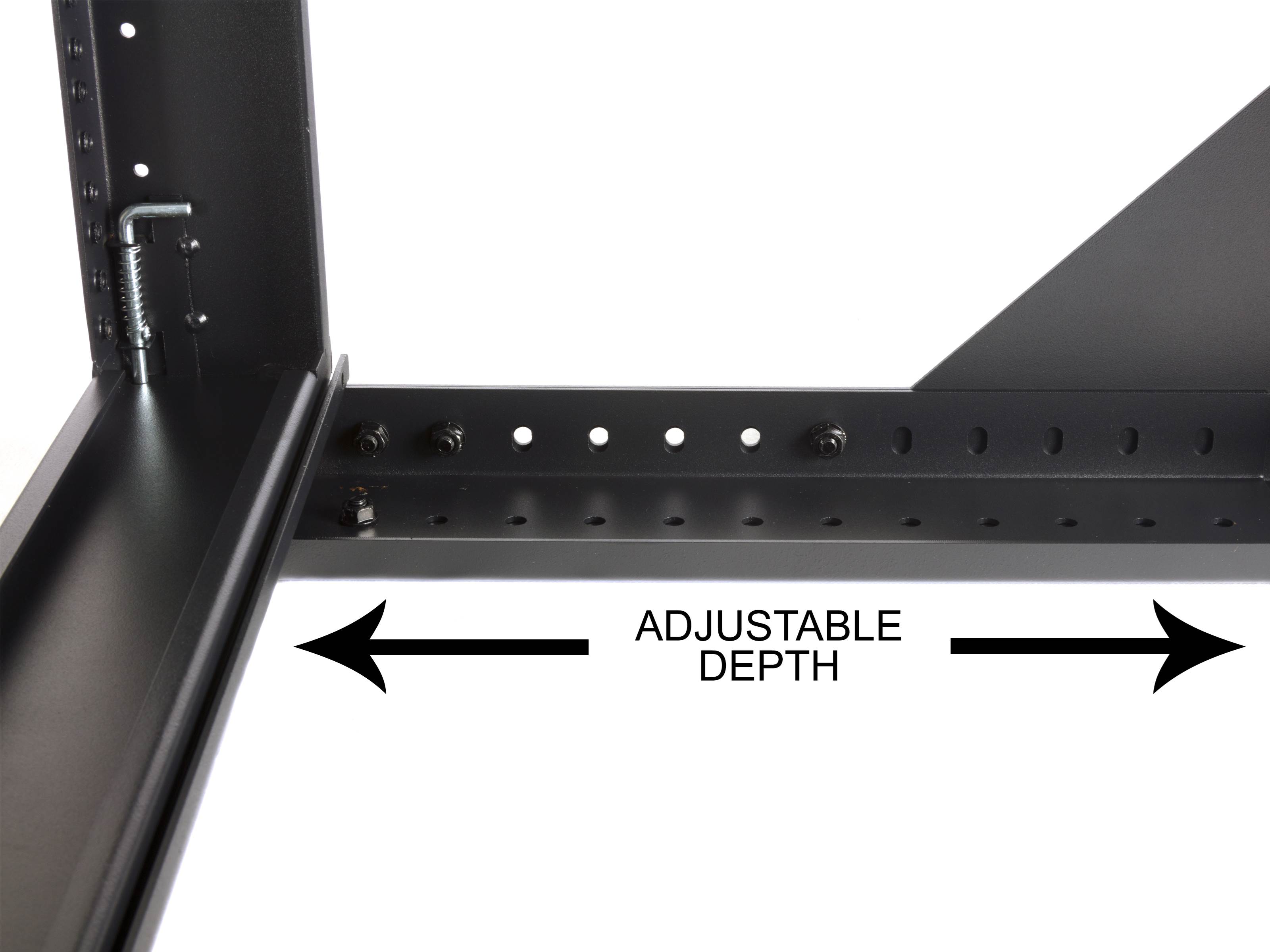

  • Adjustable Depth: 18-28 Inches"
  • Designed for equipment with a 19" mounting profile
  • Flat Packed - Assembly Required
Additional Resources
Related Videos
Wall Mount Rack S301 Assembly Video Wall Mount Rack S301 Assembly Video
Reviews
5 star (9)
100%
4 star (0)
0%
3 star (0)
0%
2 star (0)
0%
1 star (0)
0%
Overall rating 5.0
Based on 9 reviews
Sturdy swing rack.
I upgraded my existing AV swing rack to this 18u model. It is mounted in our pantry to keep a tidy living room & controlled via IR relay. This way I only need to run one HDMI cable through wall from receiver to TV.  Pros: Common problem with swing racks is they tend to sag when opening door. This one is sturdy & does a much better job but I still have to lift door slightly when closing. There are no hinges per se, just spring loaded pins on each side. My receiver is 40lbs alone & these pins aren't made for such weight & have a little play in them. I do like the 1" door clearance off floor though, no drag marks & helps preserve our tile! Cons: The spring loaded release pins have no slot to poke through on the side of the rack so your only option to unlock the gate is to reach around from behind, between your equipment & the side of the rack. It's a tight fit especially if you have components racked in those U's along with fat fingers. Avoid mounting deep equipment in the top or bottom of rack or the back of these components will strike the reinforced angled corners & prevent you from opening. All & all it's a very sturdy rack & especially hard to beat at this price point.
Excellent Rack
This rack is one of the best swing out skeleton racks I've used. It's a really good buy. And it's adjustable in the depth. I'll be using it again. That's for sure.
Strong and solid rack
Strong and solid rack. I would like to see square holes for equipment mounting.
Great Robust Product
Purchased this for a home network, believe it or not. We needed something to support two large rack-mount UPSs, a file server, router, switches, punch-down panels, etc. We wanted something with room for more gear, if we ever need it. But mostly we needed something to support the WEIGHT. This rack is very sturdy, well-made and assembles easily. It's also easy to mount, and we appreciate the swing out front for easy access to the back of the components. Absolutely no complaints.
Easy to assemble.
Does the job. Price good
Read all 9 reviews
Products specifications
Compliance EIA-310D
Delivery Style Knockdown
Dual Tapped Rails Yes (#12-24)
Electrostatic Powdercoat MicroFinish Black
Hinged Swing Out Design Yes
Load Capacity 150 lbs
Manufacturer Networx®
Mounting Format 19"
Numbered RU positions Yes
Rack Size Depth (Internal) 18-28"
Rack Size Width (Internal) 21" (19")
RMU 22U
Screws & Washers (#12-24) 16 each
Rack Height (Assembled) 44 Inch
SKU WMR-S301-22U
GTIN 00845425025340
Weight (Lbs) 41.89
