12 Fiber 62.5/125µm OM1 Ultra-Fox™ Riser Aluminium Interlocked Armor Orange Jacket - 1000 FT

by OCC
The 12 Fiber 62.5/125µm OM1 Ultra-Fox™ Riser Aluminium Interlocked Armor Orange Jacket - 1000 FT is used in trunking, LAN, and distribution applications where small size, lightweight, and versatile installation capability are required. Read More
SKU: DX012DWLS9ORI2-10
$1,890.00

Looking for larger lengths? Most bulk fiber is available in reels up to 13,000 Feet. Give us a call at 800-626-6622 to get a quote.

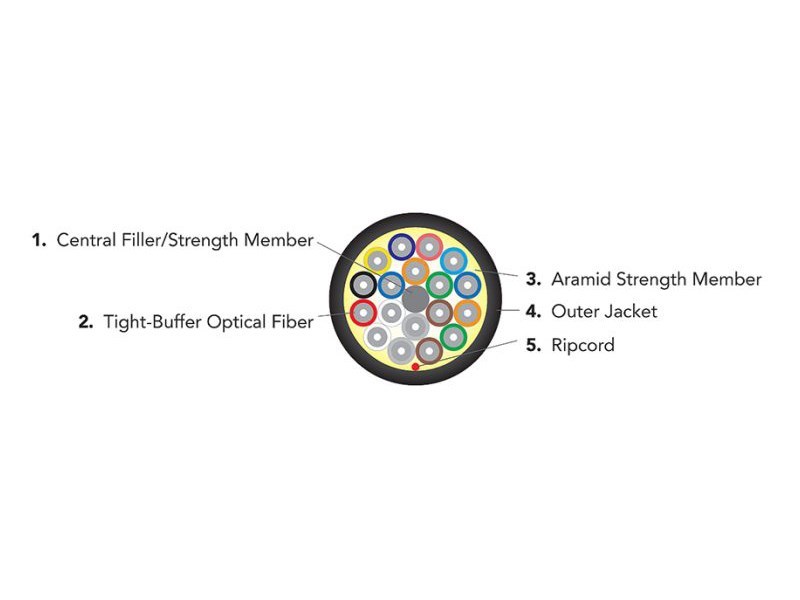

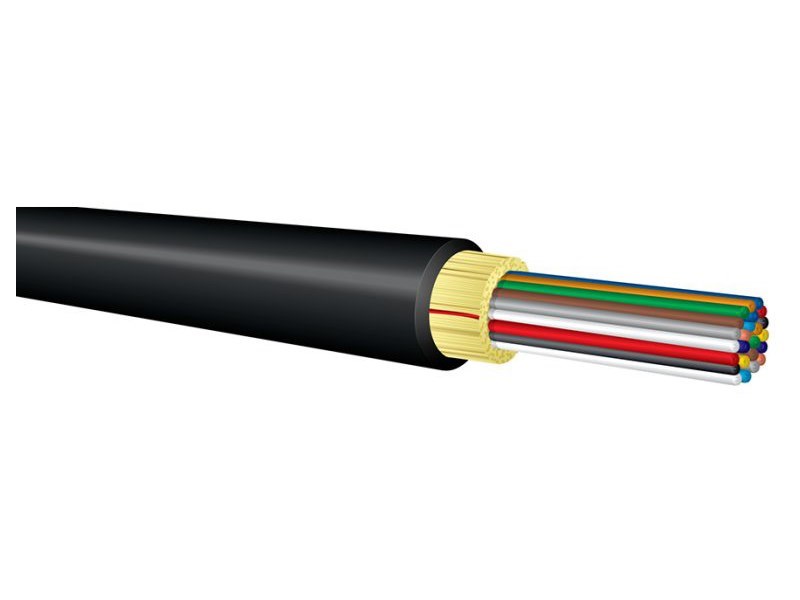

12 Fiber 62.5/125µm OM1 Ultra-Fox™ Riser Aluminium Interlocked Armor Orange Jacket Indoor/outdoor tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types. Ideal configuration for a single termination point requiring multiple fibers. 900μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber. No need to splice outdoor cable to indoor cable at building entranceHigh crush resistance may eliminate the need for innerduct.
  • Features
    • High performance components and construction
    • Cable materials are indoor/outdoor - UL-listed OFNR and UV, water and fungus resistant
    • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
    • Wide operating temperature range of -40°C to +85°C
    • Helically stranded core for greater flexibility and mechanical protection of the optical fibers
    • High strength-to-weight ratio
    • 2-144 fiber configuration is smaller and lighter than comparable sub-grouped cables made by others: ideal for installation in areas with limited space or tight bends
    • Can be armored for additional protection in direct burial and aerial installations
    • Interlocking armor can be applied to cables as an alternative to conduit installation
  • Standards
    • UL 1651
    • UL 1666
    • GR-409-CORE
    • ICEA-S-104-696
    • ICEA-S-83-596
    • TIA-568
    • TIA-598
    • UL-listed type OFNR in accordance with NEC sections 770-179 (B) and 770-154 (B) for use in vertical runs in building riser shafts or from floor to floor. Meets or exceeds requirements for intra-building fiber optic cables as outlined in GR-409-CORE.
  • Fiber Specs
    • Fiber Count: 12
    • Core/Cladding Diameter (µm): 62.5/125
    • Numeric Aperture: 0.275
    • Wavelength (nm): 850/1310
    • Gigabit Ethernet Distance (m): 300/600
    • 10-Gigabit Ethernet Distance (m): 33/300ˆ
    • Maximum Cabled Attenuation (dB/km): 3.5/1.5
    • Minimum Laser EMB Bandwidth* (MHz-km): 220/500
    • Minimum OFL LED Bandwidth** (MHz-km): 200/500
Products specifications
Color Orange
Cable Rating Riser
Core Size 62.5/125
Fiber Type Multimode
Fiber Classification OM1
Length 1000 FT
Wavelength 1310/1550
Gigabit Ethernet Distance 300/600 Meter
10-Gigabit Ethernet Distance 33/300
Maximum Cabled Attenuation (dB/km) 3.5/1.5
Diameter 0.6 IN
Fiber Strands 12 Strand
Weight (Lbs) 135.00
