Indoor Duplex Fiber Assembly Cable - Multimode OM1 62.5/125 micron, Plenum - 1000 FT

by OCC
The 1000ft Indoor Duplex Fiber Assembly Cable - Multimode OM1 62.5/125 micron, Plenum is resilient and flexible for jumpers, patch cords and pigtails. Suitable for general purpose indoor use, such as routing connections in patching systems. This cable has a 62.5/125 micron fiber core and a 2.9mm outside diameter... read more
SKU: AX002SWLS9OP-10
Manufacturer: OCC
$342.86
Description
The 1000ft Indoor Duplex Fiber Assembly Cable - Multimode OM1 62.5/125 micron, Plenum has high performance tight-buffered coating on each optical fiber for environmental and mechanical protection. Flame-retardant for indoor installations. Compatible with all standard fiber optic connectors. Resilient and flexible for jumpers, patch cords, and pigtails. Suitable for general purpose indoor use, such as routing connections in patching systems. Short "patch cord" cables ideal for links between electronic equipment and main fiber optic cables.

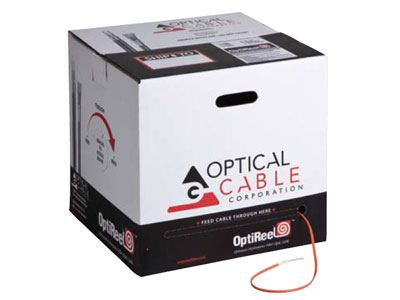

OptiReel cable box saves installers time. OptiReel is a self-contained payout box to facilitate storage, handling and pulling of cables. The packaging greatly reduces set-up time for each pull. Therefore, the box is ideally suited for cable pulls through building duct systems, walls and ceilings where multiple cables may be pulled together and many relatively short runs need to be installed. The compact boxes contain an internal reel so that cable stands do not have to be used. Cables in the boxes are marked with decreasing length markings, so that the installer always knows the length of the remaining cable in the box.

  • Fiber Count: 2 Strand (Duplex)
  • Fiber Core: OM1 62.5/125 micron Multimode
  • Outside Diameter: 2.9mm
  • Standards Compliance: GR-409-CORE, ICEA-S-83-596, TIA-568, TIA-598
  • Flame Retardancy: UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)

Products specifications
Manufacturer Optical Cable Corporation
Core Size 62.5/125
Fiber Classification OM1
Fiber Type Multimode
Color Orange
Diameter 2.9mm
Length 1000 FT
SKU AX002SWLS9OP-10
Weight (Lbs) 13.00
