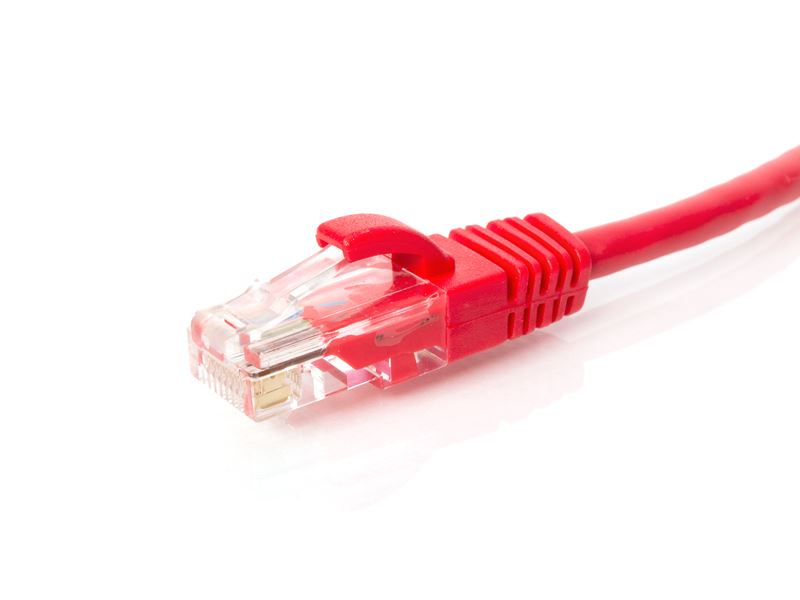

CAT5e Patch Cable - 1 FT, Red, Booted

by Networx™
Category 5e or Category 5 Enhanced, high speed cables should be your first choice if you want to progress in today’s demanding Ethernet and Gigabit Networks. With this cable by your side, power is in your hands. Read More
Lifetime Warranty

This product is covered by a Lifetime Warranty. If, for some reason, your product ever fails, we will replace it free of charge. Terms and Conditions apply, click here for more info.

SKU: PC-CAT5EBRD-001
Availability: In stock
$0.66
Volume Discounts
Quantity 2+ 20+ 50+
Price $0.63 $0.61 $0.57
Category 5e or Category 5 Enhanced, high speed cables should be your first choice if you want to progress in today’s demanding Ethernet and Gigabit Networks. With this cable by your side, power is in your hands. Networx™ will give you the crown with this high performance, 350 MHz, CAT5e patch cable. Here are the reasons why.

Networx™ CAT5e network patch cable can handle even the most intensive bandwidth applications out there. Furthermore, the Networx™ CAT5e network patch cable is UL certified. This ensures you a branded, state of the art patch cable that is in accordance to all the standards put forth by TIA/EIA. The Networx™ Cat 5e patch cable is manufactured using 350 MHz Cat5e bulk cable. This bulk cable consists of four 24 AWG unshielded twisted pairs. The booted CAT5e cable also flaunts stranded conductors and a highly durable and rich PVC jacket. The Networx™ CAT5e cable also reduces NEXT interference and boosts performance by implementing short body, staggered, Cat5e RJ45 modular connectors. To top it all off, Networx™ Cat5e contacts are plated with 50 micro inch of gold. This in turn provides superior connectivity.

  • Conductor: 4-pair 24 AWG Stranded Copper
  • Connector: 50-micron gold plated RJ-45 Male to Male
  • Jacket: PVC
  • Applications:
    • 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
    • 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-Any LAN
    • 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
    • Voice
  • Designed For: Network Interface Cards, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and all other twisted-pair applications
  • Wired: TSB 568B (Standard US)
  • Certifications: TIA/EIA; UL Listed

Products specifications
Assembly Molded Boot
Cable Jacket PVC - Polyvinyl Chloride
Cable Type Cat5e
Color Red
Connector A RJ45 Male
Connector B RJ45 Male
Connector Material Polycarbonate
Maximum Data Transfer Rate 100 Mbps
Manufacturer Networx™
Wire Gauge 24 AWG
Core Stranded
Conductor Copper
Length 1 FT
Warranty Lifetime Warranty
RoHS Compliant Yes
UL Listed Yes
Warranty Lifetime Warranty
GTIN 845425009456
Weight (Lbs) 0.05
Availability In stock
Add your review
Overall Rating:
5.0 / 5 (based on 4 reviews)

100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
I bought this to rip apart for patch wiring
I should have bought 2'.  Cheap enough, and well made.
Anyway, now I have enough left on the end to make a little cable continuity tester.
From: Guest | Date: 6/14/2017
Was this review helpful? Yes No (0/0)
Cables
Recieved. Just what I needed.
From: Guest | Date: 10/6/2016
Was this review helpful? Yes No (0/0)
Nice patch cable
Nice patch cable, especially the release clip.  Very fast delivery too! - Brad M. - GA, US
From: Brad | Date: 1/9/2013
Was this review helpful? Yes No (0/0)
It works and it was priced right
What can one say about a patch cable? It works and it was priced right. Definitely better than making patch cables yourself. - Joseph C. - SD, US
From: Joseph | Date: 12/5/2011
Was this review helpful? Yes No (0/0)
