Xpress Ultra™ Fiber Connector, Pre-Polished, SC, OM3/OM4, 250/900, 12 Pack with tool

by OCC
Xpress Ultra™ Fiber Connector, Pre-Polished, SC, OM3/OM4, 250/900, 12 Pack with tool. OCC's Xpress Ultra™ Fiber Connectors are the new generation in field installable fiber terminations... read more
SKU: RFC-SC5G
Manufacturer: OCC
$177.94
Description

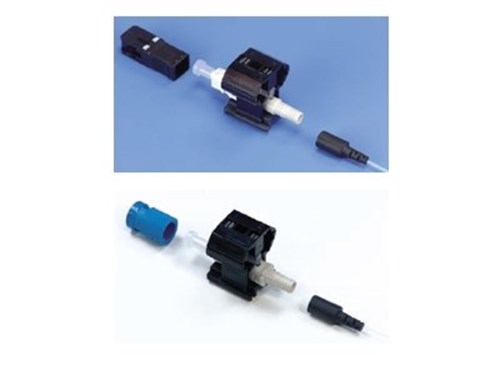

Xpress Ultra™ Fiber Connector, Pre-Polished, SC, OM3/OM4, 250/900, 12 Pack with tool. OCC's Xpress Ultra™ Fiber Connectors are the new generation in field installable fiber terminations. These connectors eliminate the need for messy epoxies and expensive tools by offering a pre-polished solution that can be installed in minutes. Xpress Connectors have a prestubbed factory polished ferrule that joins to the fiber using a precise mechanical alignment and a special low loss index matching gel. Each Connector comes with a specially designed clip that holds the clamping devices open for the fiber to be inserted. Once the fiber is inserted, squeeze the clip to release the blades, remove clip and discard.
  • Mechanical Splice(index matching gel)
  • Highly Stable & Reliable
  • Perfect Performance
  • Compact Package
  • RoHS Compliant
  • Finished Connector meets UL94-V0 Flammability Rated
  • TIA/EIA 568-C.3 Compliant
  • Insertion Loss Singlemode: 0.2dB (PC) and 0.3dB (APC)
  • Insertion Loss Multimode: 0.1dB
  • Return Loss Singlemode: 55dB (PC), 60dB (APC)
  • Return Loss Multimode: 35dB
  • Durability: <0.1dB change, 500 matings
  • Operating Temp: -40ºC to +75ºC
  • TIA/EIA 568-B.3
  • IEC 61754-4
Products specifications
SKU RFC-SC5G
Weight (Lbs) 5.00
