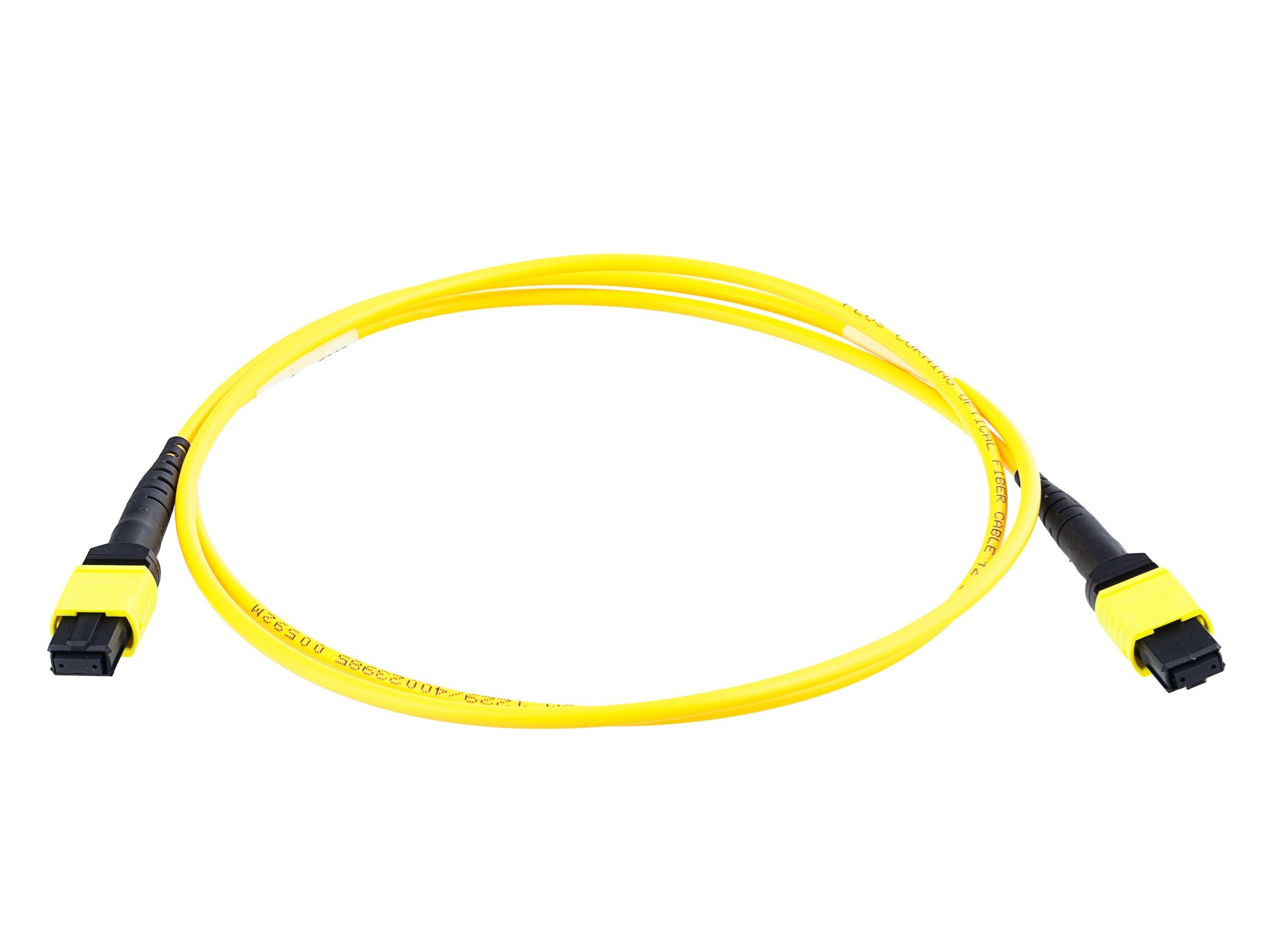

Plenum MTP® OS2 Singlemode Type B 12-Fiber Trunk Cable - 10 Meter

SKU: OT-MTP12-S2BP-010
MPN: OT-MTP12-S2BP-010
GTIN: 00845425043962

Sorry - this product is no longer available

Plenum-rated 10 m MTP® OS2 singlemode Type B 12‑fiber trunk for high‑density backbone links. MTP is a high‑performance MPO multi‑fiber connector that lets you plug in 12 fibers at once for fast, low‑loss deployment. Ideal for data centers, cross‑connects, and long‑reach 10/40/100/400G... read more

Description

Unlock seamless integration with high-performance trunking. The Plenum MTP® OS2 Singlemode Type B Trunk Cable provides high-clarity optical transmission across extended distances, perfect for structured cabling systems and patch panel cross-connects. With MTP® connectors on both ends and reversed Type B polarity, this cable ensures correct transmit/receive pairing in modular fiber networks.

Engineered with OS2 singlemode fiber and a plenum-rated jacket, it meets the rigorous demands of enterprise-scale deployments and long-range optical paths.

Available in lengths from 1 to 50 meters (1-meter increments up to 10m, then 5-meter increments up to 50m), this trunk cable offers both distance and design flexibility for complex network builds.

Features:

  • MTP® connectors on both ends for structured backbone installations
  • OS2 singlemode fiber ensures signal precision over long distances
  • Type B polarity (key-up to key-up) for reversed fiber mapping
  • Plenum-rated jacket suitable for commercial building pathways
  • Compatible with parallel optics, cross-connects, and high-density enclosures
  • Pre-terminated and tested for consistent performance
  • Available in lengths from 1 to 50 meters

Go the distance. Stay in control.

Products specifications

Fiber Classification Singlemode
RoHS Compliant Yes
Fiber Type OS2
Color Yellow
Length 10 Meter
Connector A MTP®
Connector B MTP®
Core Size 9/125 µm
Fiber Count 12-Fiber
Jacket Rating Plenum (OFNP)
Polarity Type B
SKU OT-MTP12-S2BP-010
MPN OT-MTP12-S2BP-010
GTIN 00845425043962
Weight (Lbs) 0.14
