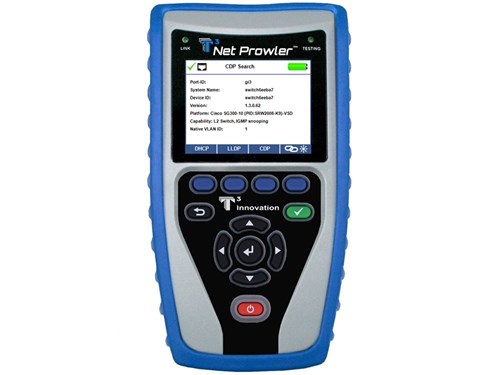

Net Prowler™ Cabling and Network Tester

by Platinum Tools®
Net Prowler™ cabling and network tester is a valuable piece of test equipment for computer network technicians and IT workers... read more
GTIN: 849160007265
Manufacturer: Platinum Tools®
Out of Stock

This multi-function tester makes time consuming tasks like setting up and troubleshooting networks faster and easier than ever before. The Net Prowler offers a full set of features including network mapping, link test, IPv4 & IPv6 ping testing, DHCP testing, DNS discovery, and URL Ping tests. LLDP identifies crucial Ethernet switch information, while IP Mapping discovers and displays network IP devices. The Net Prowler includes TDR technology for verifying and tracking cable integrity for opens, shorts, miswires, split pairs and reversed pinout as well as measuring cable length of network cables, telephone and coaxial cables. To keep track of test results for internal review or archival purposes, a USB interface connects the Net Prowler to the PC controller application. Test results can be downloaded from the Net Prowler and saved to your PC with the app and exported as CSV files or PDF files for printing.

Network Testing Features:

    • Supports IPV4 and IPV6 protocols
    • Verifies DHCP connectivity and DNS
    • Pings IPV4, IPV6, and URL addresses
    • CDP, LLDP, and VLAN detection
    • Network Mapping identifies device name, IP address and MAC address on the network
    • TCP/UDP Throughput Test
    • Detects and reports current link speed and link capabilities for active Ethernet drops
    • Link light to identify location on a hub/switch/router port
    • Detects PoE per IEEE 802.3af/at with load test for voltage drop and which pairs the PoE is located on (class)

      Cable Testing Features:
      • Displays length measurement for each pair in feet or meters using TDR technology
      • Tests CAT3/5e/6/6a Ethernet, telephone and coaxial cable configuration and verifies connectivity while conducting tests for opens, shorts, miswires, split pairs, and reverses
      • Supports up to 8 testing and ID remotes for network & telephone cables
      • Supports up to 20 network and coax ID-only mapping remotes
      • Generates selectable tones on selected pins for use with tone tracers
      • View saved cable tests, define cable name, save/print ALL cable testing and network testing
      • Full color graphical wire-mapping
      • Multilingual (English, French, Spanish, German, Italian)
Products specifications
Altitude 10000ft
Battery Operating – 20 hours typically
Cable Measurements Cable Testing and ID: up to 1000 ft
Detection CDP, LLDP, and VLAN
Dimensions 3.5" x 6.8" x 1.85"
Ethernet Indicates advertised speeds of 10/100/1000base-T half or full duplex
Features Can link to network at 10/100base-T, F Connector: 50 VDC or VAC, Multilingual (English, French, Spanish, German, Italian), Split Pair Detection: 3 ft to 1000ft, Standby – 1.5 years typically, Storage: -22 to +140°F (-30 to 60°C), Tests for classes and loads cable up to 25.5 watts, Tests for IEEE 802.3at, Up to 20 network and coax ID-only mapping remotes, Up to 8 testing and ID remotes for network & telephone cables, Full color graphical wire-mapping
Humidity 10 to 90% non-condensing
Maximun Voltage RJ Jack: 66 VDC or 55 VAC
Measurement Technology Time Domain Reflectometry (TDR)
Network Mapping Identifies Device name, IP address, and MAC address
Pings IPV4, IPV6, and URL addresses
PoE Tests for IEEE 802.3af
Save Test Results Stores up to 250 cable or network tests with user defined names
Supports IPV4 and IPV6 protocols
Temperature Operating: 32 to 122°F (0 to 50°C)
Tone Generation Tone Frequencies: 730 Hz and 1440 Hz
Verifies DHCP connectivity and DNS
Manufacturer Platinum Tools®
GTIN 849160007265
Weight (Lbs) 2.00
