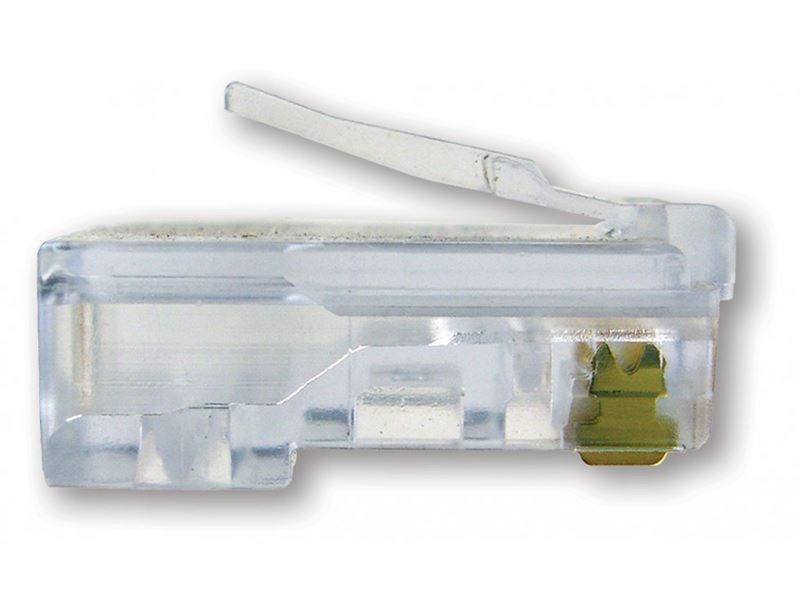

EZ-RJ45 Cat5e Connector 100/Jar

by Platinum Tools®
The patented EZ-RJ45® Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. Reducing the distance between the wire twists and contacts improves performance! Reduces scrap, no wasted crimps. More reliable, higher performance. Crimp with the patented EZ-RJ45 Crimp Tool...crimps and trims in one cycle. Manufactured in the USA. Patented. ... read more
SKU: 202003J
GTIN: 849160000488
Manufacturer: Platinum Tools®
In stock
$57.14
Description

The patented EZ-RJ45® Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. Reducing the distance between the wire twists and contacts improves performance! Reduces scrap, no wasted crimps. More reliable, higher performance. Crimp with the patented EZ-RJ45 Crimp Tool...crimps and trims in one cycle. Manufactured in the USA. Patented.

  • Thru holes allow wire pairs to be inserted thru front of connector for faster terminations.
  • Works with solid or stranded wire.
  • Simple one piece design...no bars or liners.
  • FCC compliant, UL rated. Use in category 3, 5, 5E compliant data networks.
  • RoHS compliant
  • EZ to verify wire sequence.
  • Max Cable OD: 6.60mm (0.260"), Max Insulated wire OD: 1.041mm (0.041")
Products specifications
Angle Straight
Dimensions 1" x 1.5" x 0.5"
Max Cable OD 0.26" (6.6mm)
Max Insulated wire OD 0.041" (1.041mm)
Primary Use Cat3/5/5e
TAA Compliant Yes
Termination Crimp
Type Modular plug
Manufacturer Platinum Tools®
Package Quantity 100
SKU 202003J
GTIN 849160000488
Weight (Lbs) 0.46
