Description

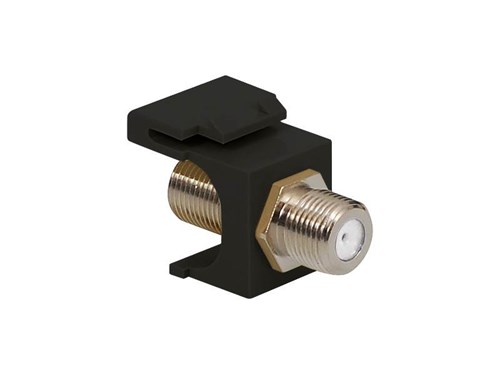

Ideal for several types of media including: Audio-Video, Cable, or Antenna Input. These high performance connectors provide a clean connection point for wired electronics to wall outlets allowing cables to be hidden within the walls or cabinetry. They provide superior signal quality with minimal noise for today's video and audio systems. They are fully compatible with all ICC's modular faceplates and multi-media panels.
1. HOUSING: A. MATERIAL: ABS, UL 94V-0 B. COLOR: XX: AL-ALMOND, BK-BLACK, GY-GRAY, IV-IVORY,&WH-WHITE 2. NICKEL PLATED F-TYPE CONNECTOR: A. MATERIAL: BRONZE WITH NICKEL PLATING B. INSULATOR COLOR: WHITE C. HOLDING FORCE > 80 GRAMS D. F-TYPE CONNECTOR THREADS: 3/8-32 UNEF-2A 3. ELECTRICAL: A. RETURN LOSS OF -20 dB MAX B. CHARACTER IMPEDANCE RATED 75 OHM C. INSULATION RESISTANCE > 10 MOHM
- Nickel plating for improved performance with superior signal quality with minimal noise
- Used for audio and video applications
- Rear threaded F-Type connectors for secure in-wall connections with both RG6 and RG59 coxial cables
- Provides a clean and neat appearance installation
- Compatible with all IC107 faceplates, inserts, surface mount boxes, and blank patch panels
- Compatible with all IC108 furniture faceplates, bezels, and surface mount boxes
- Used with ICC RG6 F-Type ICPCSF patch cords
- Available in almond, black, gray, ivory, and white
- UL listed
