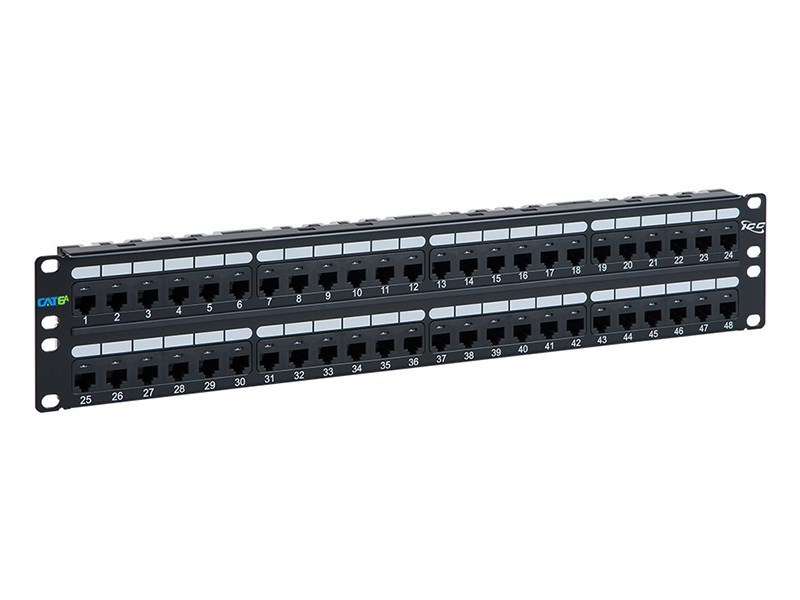

CAT6A UTP Patch Panel in 110 Type with 48 Ports and 2 RMS

by ICC
ICC’s Category 6A 2U 48-port, 110-type UTP, 10G Patch Panel is component compliant to ANSI/TIA Category 6A connecting hardware requirements. The vertical 110-type insulation displacement connectors (IDCs) are designed to provide optimum permanent and channel link performance and reduce potential Alien Crosstalk (ANXT). Jacks are grouped in six-port modules for quick administration and easy labeling. The high-density design occupies 2 rack mount space (RMS) and measures 19″ x 3.50″... read more
SKU: ICMPP0486B
GTIN: 633758092234
Manufacturer: ICC

Sale - Limited Inventory Available

3 in stock
$219.78
Description
ICC’s Category 6A 2U 48-port, 110-type UTP, 10G Patch Panel is component compliant to ANSI/TIA Category 6A connecting hardware requirements. The vertical 110-type insulation displacement connectors (IDCs) are designed to provide optimum permanent and channel link performance and reduce potential Alien Crosstalk (ANXT). Jacks are grouped in six-port modules for quick administration and easy labeling. The high-density design occupies 2 rack mount space (RMS) and measures 19″ x 3.50″.

  • Vertical 110-Type IDC connections reduces potential Alien Crosstalk.
  • Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port.
  • Enhanced crosstalk cancellation and reduced return loss.
  • Exceeds ANSI/TIA-568 CAT 6A (10G) connecting hardware Component Rating.
  • 110-Type IDC termination help reduces installation time and improves wire retention.
  • 50 micro-inch gold plating on all modular contacts to protect from corrosion.
  • 2 rack mount spaces (RMS); Mounts on industry-standard 19″ wide racks.
  • T568A or T568B wiring schemes; not compatible with 110-type patch plugs.
  • UL Listed.

Specifications

Environmental conditions:

Temperature range storage: -40° to 70°c

Operational: -10° to 60°c relative humidity (operational):

Maximum noncondensing 93%

Electrical:

Electrical Insulation resistance: 500 mohms min @ 100v DC

Dielectric Withstanding Voltage: 1000v DC or AC peak

Contact @ 60hz for 1 minute

Spring Wire Contact Resistance: 20 mohms max.

IDC Contact Resistance: 2.5 mohms max.

Mechanical:

Retention: 50n (11 lbs sq) or 60s±5s

Insertion/extractor: 750 cycles min.

IDC Wire Guage: 22~24 AWG

Physical:

Housing: Zinc alloy fully shielded

Marking: Mold UL information

Spring Wire: Phosphor Bronze alloy plated with 50 micro-inch of gold over 70~100 micro-inch of nickel

IDC: Phosphor Bronze Alloy with 100 micro-inch 100% Sn alloy

Size: 3.47″ height x 19.00″ width x 1.28″ depth

Products specifications
SKU ICMPP0486B
GTIN 633758092234
Weight (Lbs) 2.50
