18U Wall Mount Cabinet - 101 Series, 18 Inches Deep, Flat Packed

by Networx
Get organized with the 18U 101 Series of Wall Mount Cabinets from Networx®... read more
SKU: WMC-S101-18U
GTIN: 00845425023117
Manufacturer: Networx
In stock
$234.47
Volume Discounts
Quantity 2+ 10+ 25+
Price $229.78 $225.09 $220.40
Description

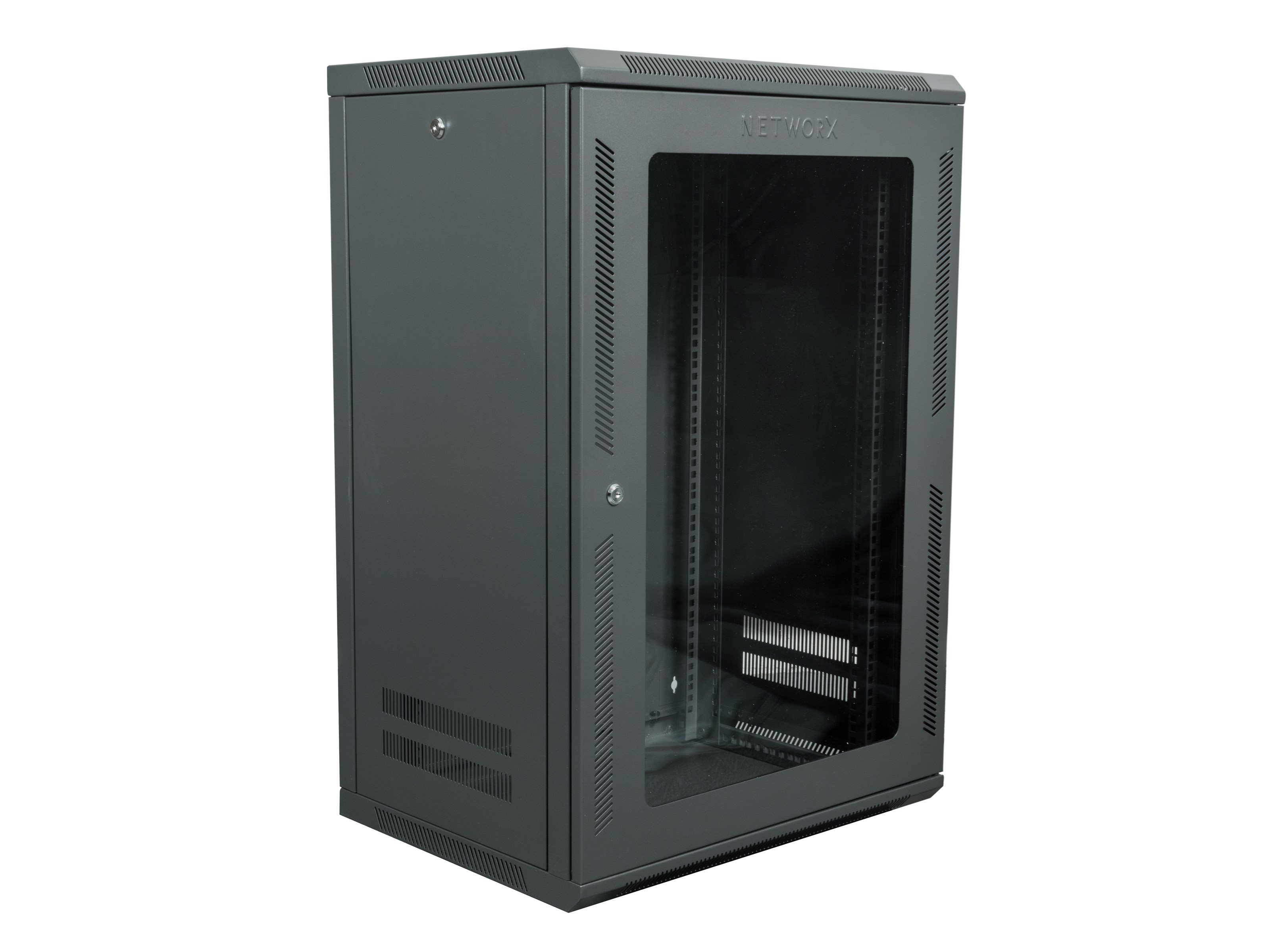

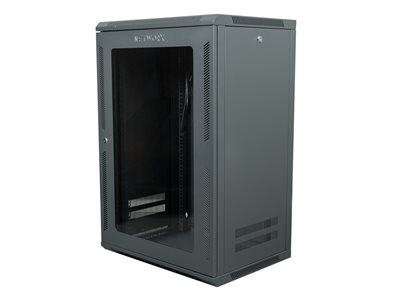

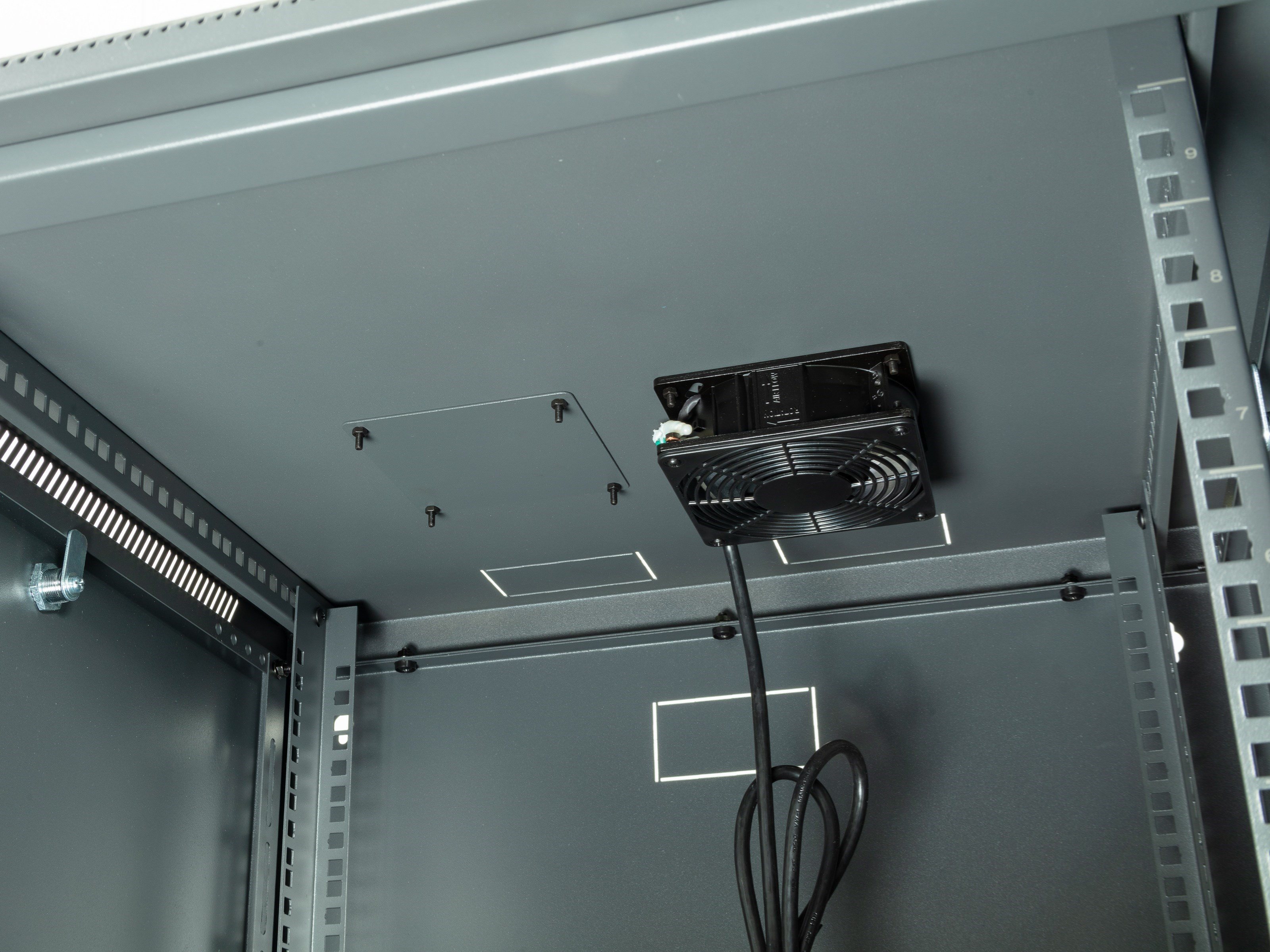

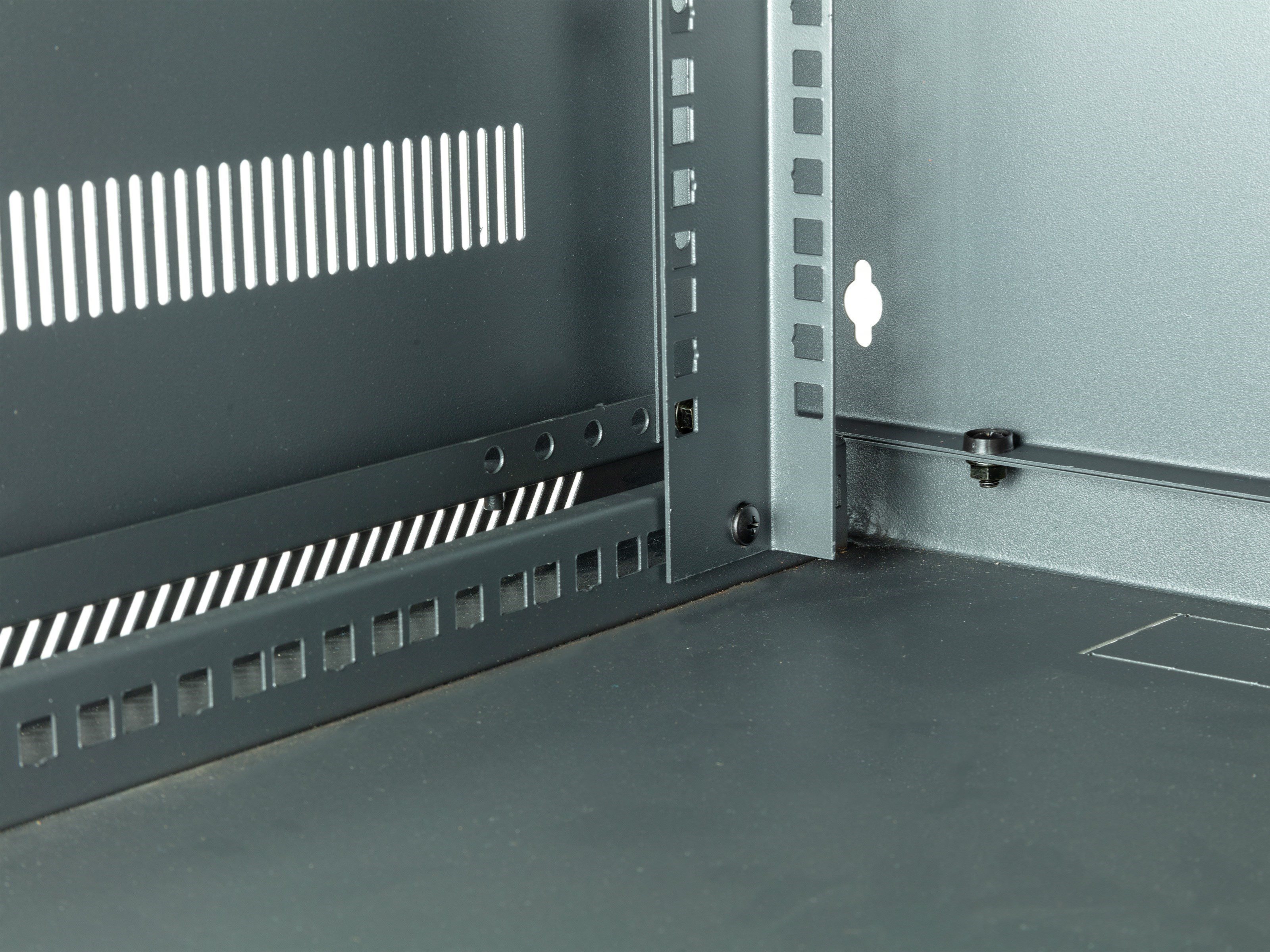

Get organized with the 18U 101 Series of Wall Mount Cabinets from Networx®. This cabinet comes equipped with some of the most requested features. Starting with the basics, this Wall Mount Cabinet is constructed with high quality SPCC Cold-Rolled Steel Panels. All Networx® Wall Mount Cabinets come with removable side panels, which include vents to keep equipment cool, to allow for quick access to sensitive networking equipment. All front panels swing out for easy access to loaded network equipment and include a window of 5mm Clear Acrylic. Included with this high quality Wall Mount Cabinet is a single 120mm fan for ideal air movement to keep network equipment cool and running at peak performance. Adjustable rails allow for full customization to allow a variety of networking equipment to fit securely. The rails are punched to allow for the installation of M6 Cage Nuts. Both Side Panels and Front Door are lockable with the included set of keys. Top/Bottom/Rear knockouts for cable entry and exit. All racks are designed to house 19" rack mountable equipment.

  • 12 M6 Cage Nuts
  • 18U Rack Mount Units
  • External Dimensions: Height 35.5" x Width 24" x Depth 18"
  • Designed for equipment with a 19" mounting profile

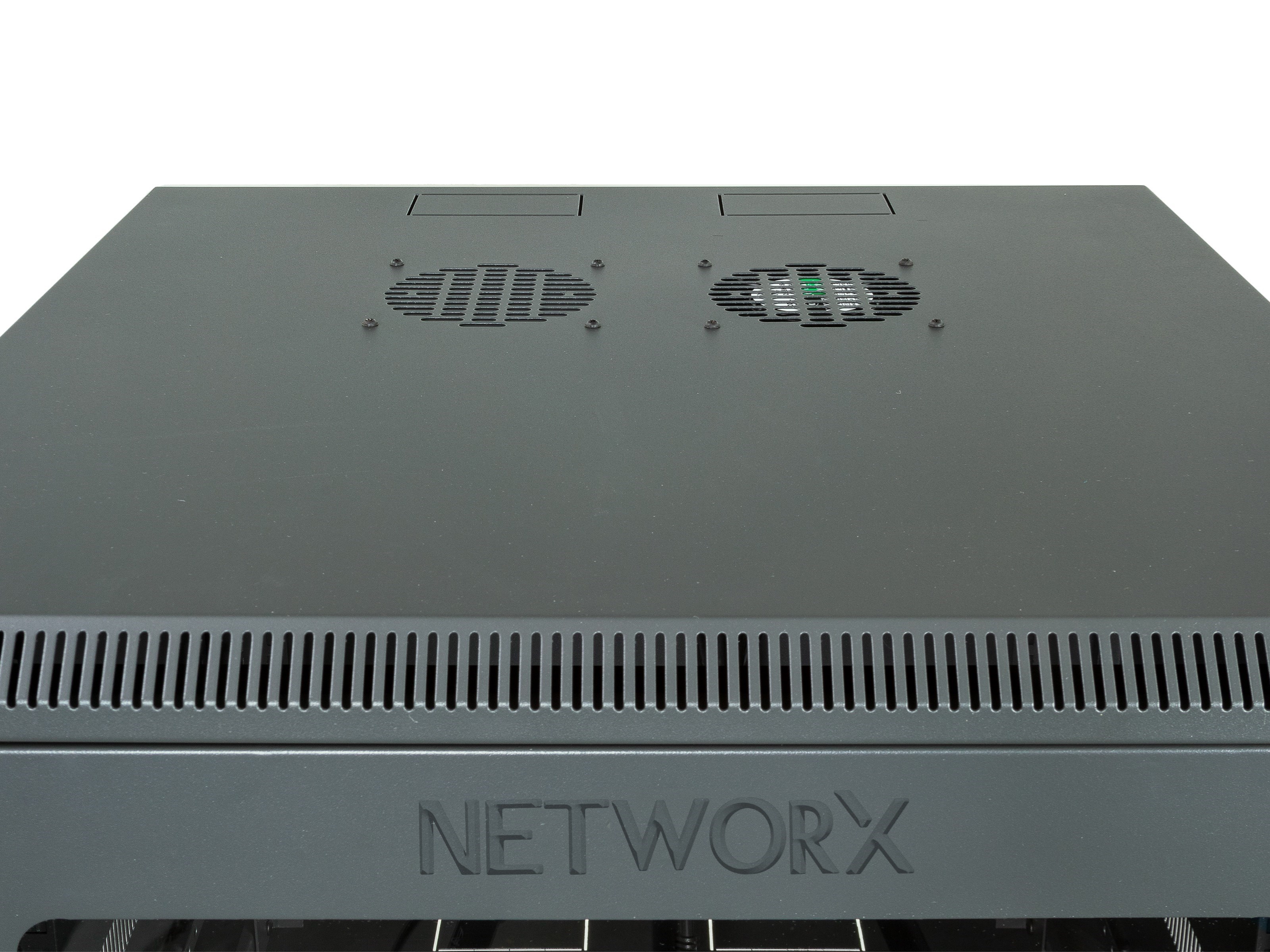

  • Vented Top/Sides/Front Panels for adequate airflow

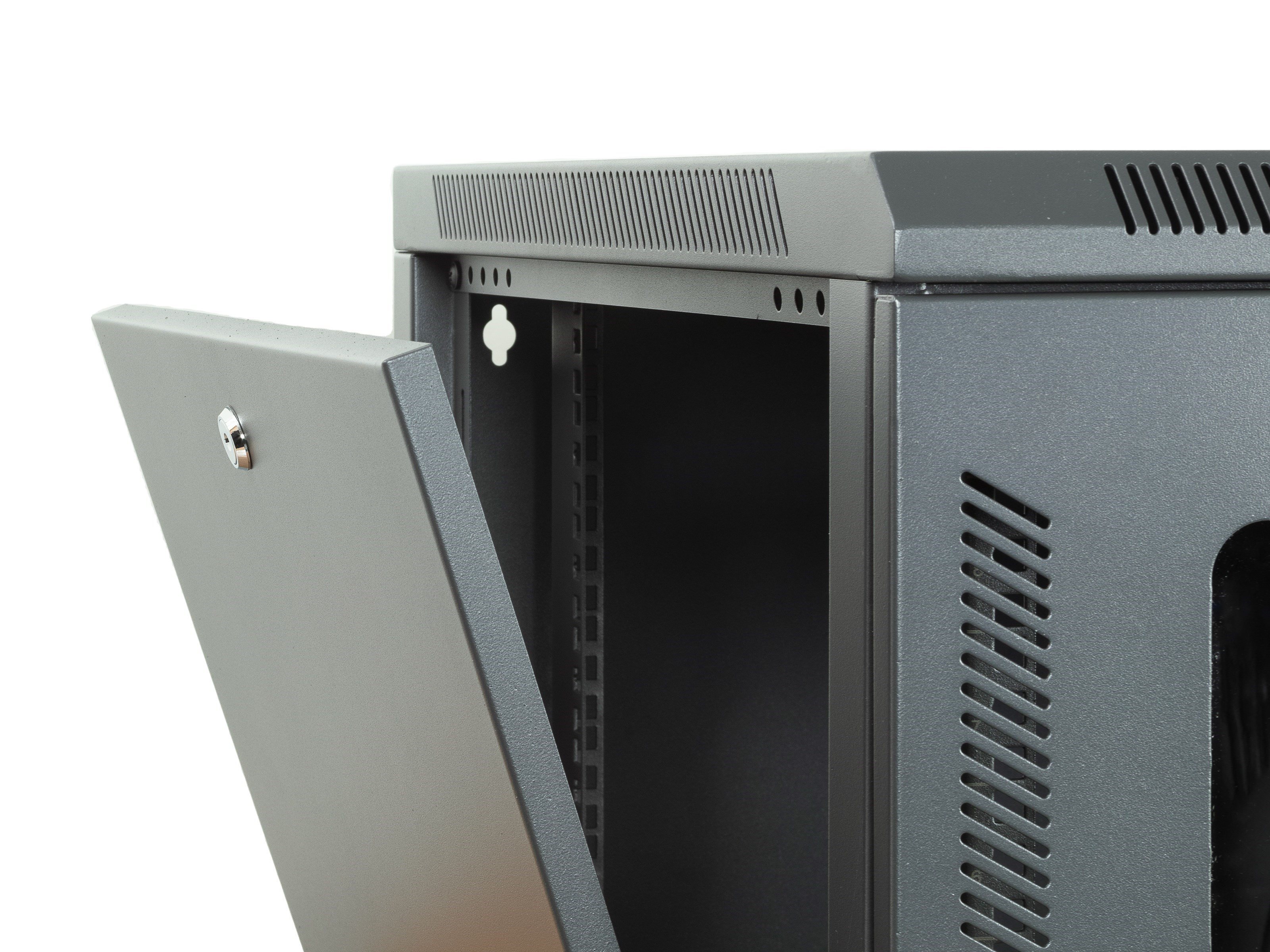

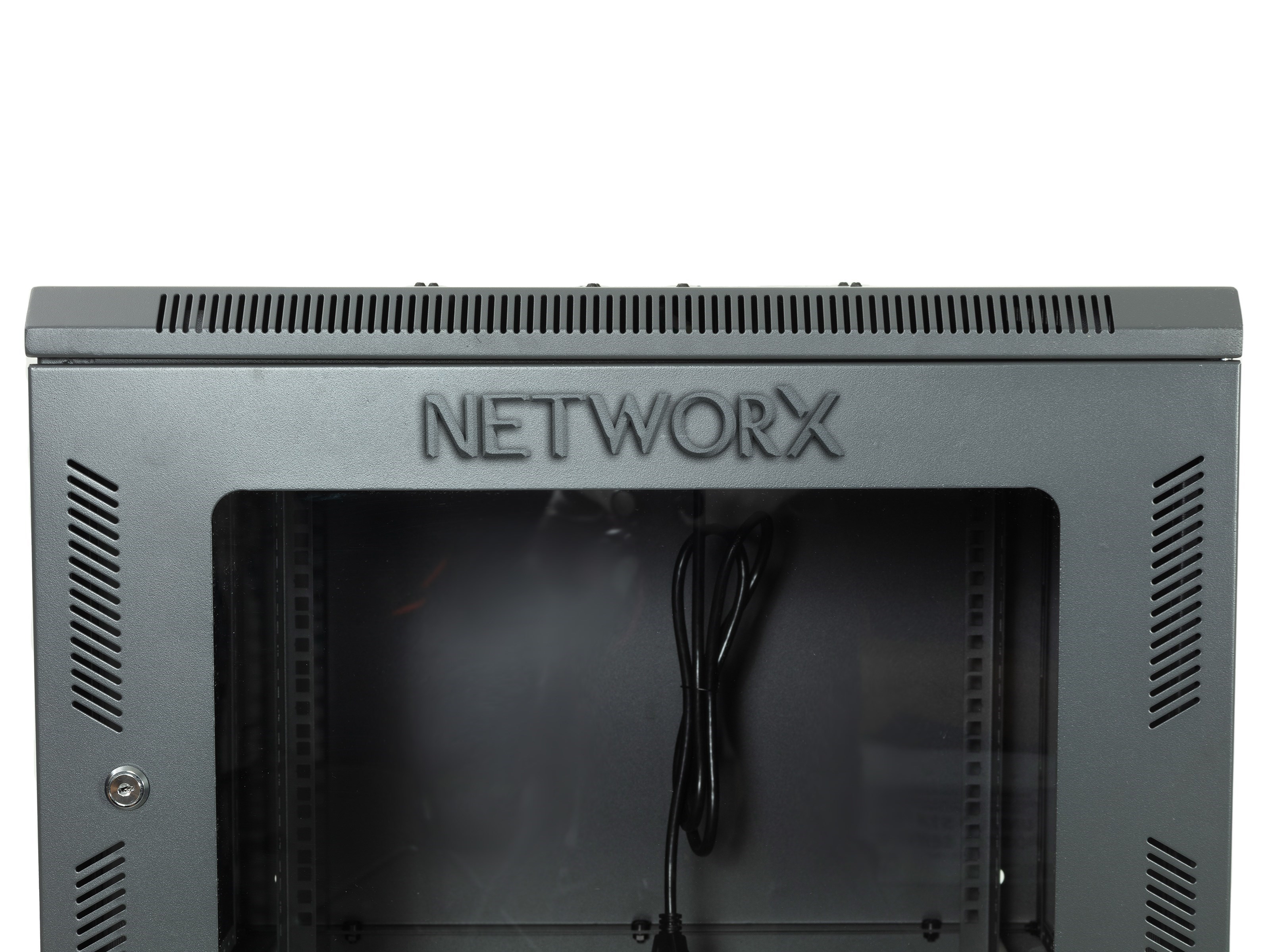

  • Reversible front door with Clear Acrylic window

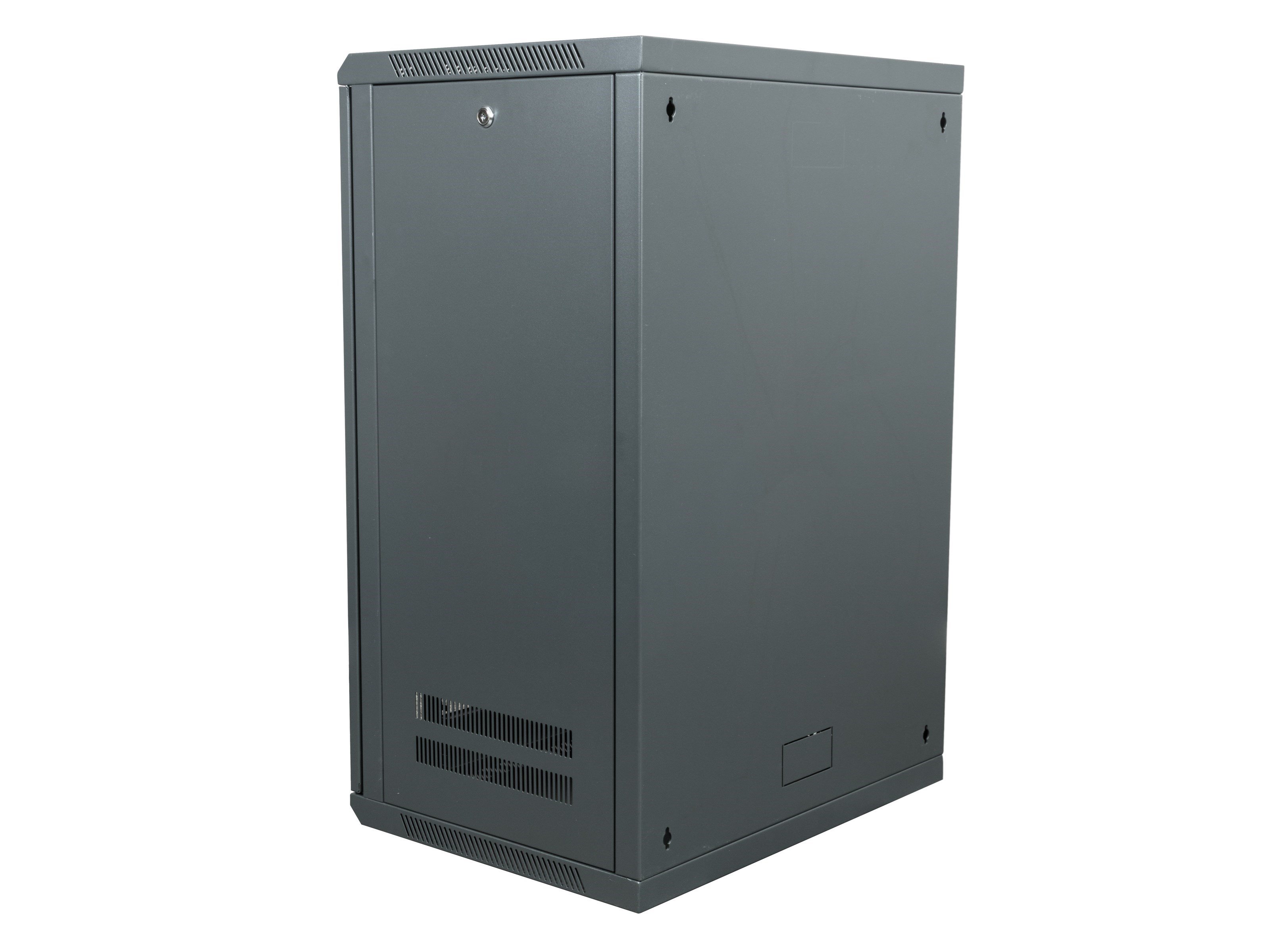

  • Removable side panels for easy access to equipment
  • Front and Side Panels are lockable with included set of keys
  • Top/Bottom/Real Knockouts for easy cable entry and exit
  • Supports up to 130lbs when secured properly
  • Flat Packed - Assembly Required
Customer Reviews
4.8 out of 5

Based on 22 reviews
5 star
81%
4 star
18%
3 star
0%
2 star
0%
1 star
0%
Andrew
Great for the price
RMU: 12U Verified Purchase
Great for the price. Love that it arrived as a flat pack, less chance of it getting damaged in transit. Assembly required obviously, but not a big deal. Went together easily. Tempered glass feels heavy and substantial. Included fan has a standard 120v power outlet plug. Punch-out on top was tough to remove, needed hand tools to do so.
Guest
Otsego Telephone Systems
RMU: 6U
Very good cabinet at a reasonable price.
Steve
A nice Entry Level Cabinet.
RMU: 12U Verified Purchase
I bought this Cabinet to enclose my Churches NAV Security System. The locking feature, and price were the driving force in my decision. I'm not sorry I went this route. The unit is plenty stout enough to hold the NAV on a 1U vented Shelf, vertical 1500 UPS on another 1U shelf shared with mouse pad, mouse and external HD with ample room for more. Above that I placed a 1U switched 8 outlet power strip along with a 24 port Cat6 rack mount patch panel 1U.
Andrew
Great buy!
RMU: 6U Verified Purchase
Arrived quickly, assembled easily. Price cannot be beat. Very happy and so was my customer. Looks as good as a $300.00 cabinet I purchased from Hoffman and this one came with a fan.
Guest
Will see. Have not opened it yet
RMU: 9U
I am building a house and we are still 2 to 3 months out, But I will say the shipping was extremely fast!
Products specifications
Cage Nut Rails Front & Rear
Color Black
Internal Mounting Format 19"
Key Lock Set (2 Keys per Set) 1 Set
Load Capacity 130 lbs
Locking Side Panels Yes
Manufacturer Networx®
Preinstalled 80CFM 110V Fans 1
Rack Size Depth (Internal) 18" (14")
Rack Size Width (Internal) 24" (19")
Reinforced Door Frame Yes
RMU 18U
Structure & Fabrication SPCC Cold-Rolled Steel Sheets
Vented Side Panels Removable
Hinged Swing Out Design No
Delivery Style Flat Packed
Rack Height (Assembled) 35.5 Inch
Door Style Clear Acrylic
Revision Rev. 3
SKU WMC-S101-18U
GTIN 00845425023117
Weight (Lbs) 64.00
