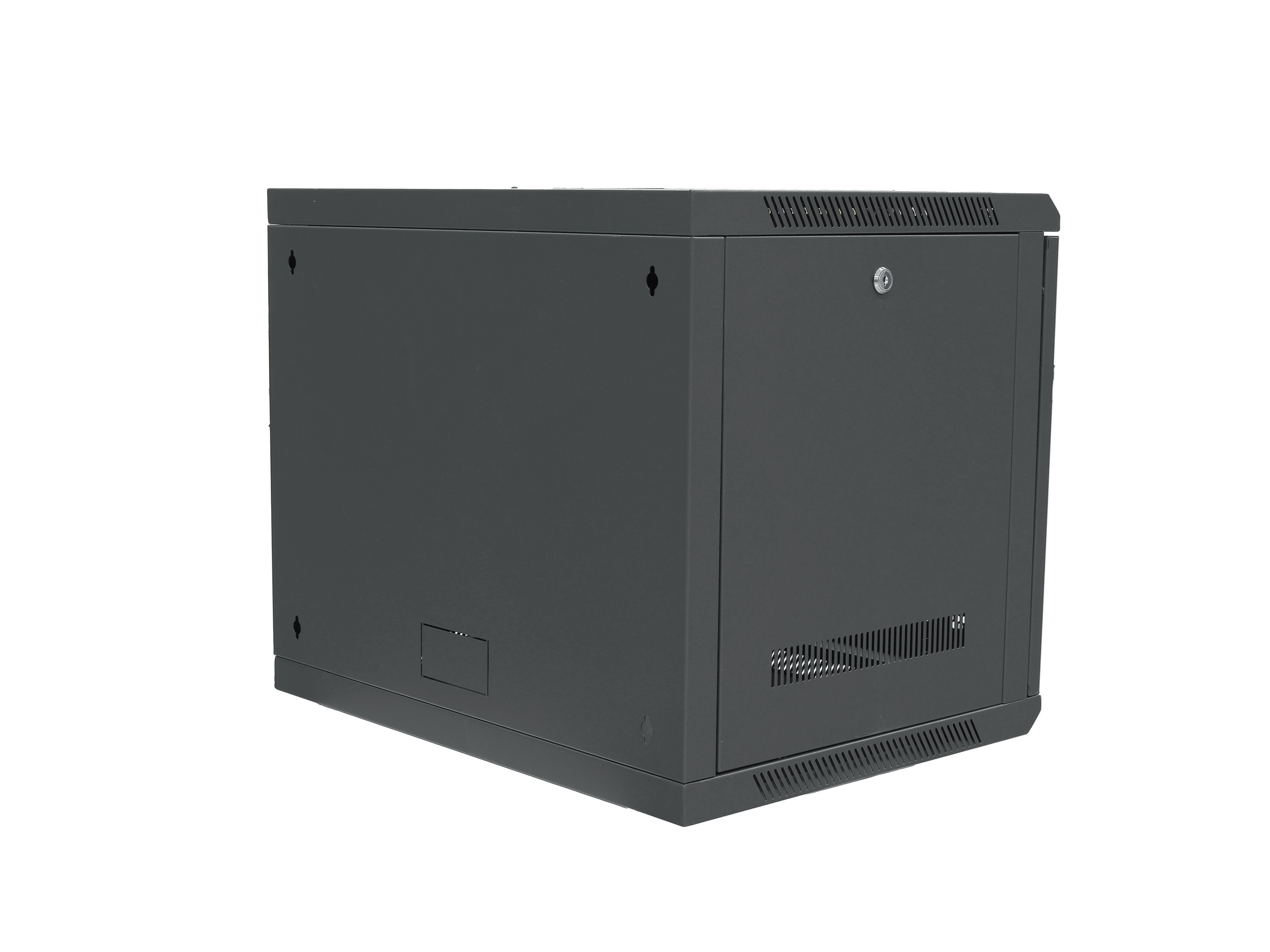

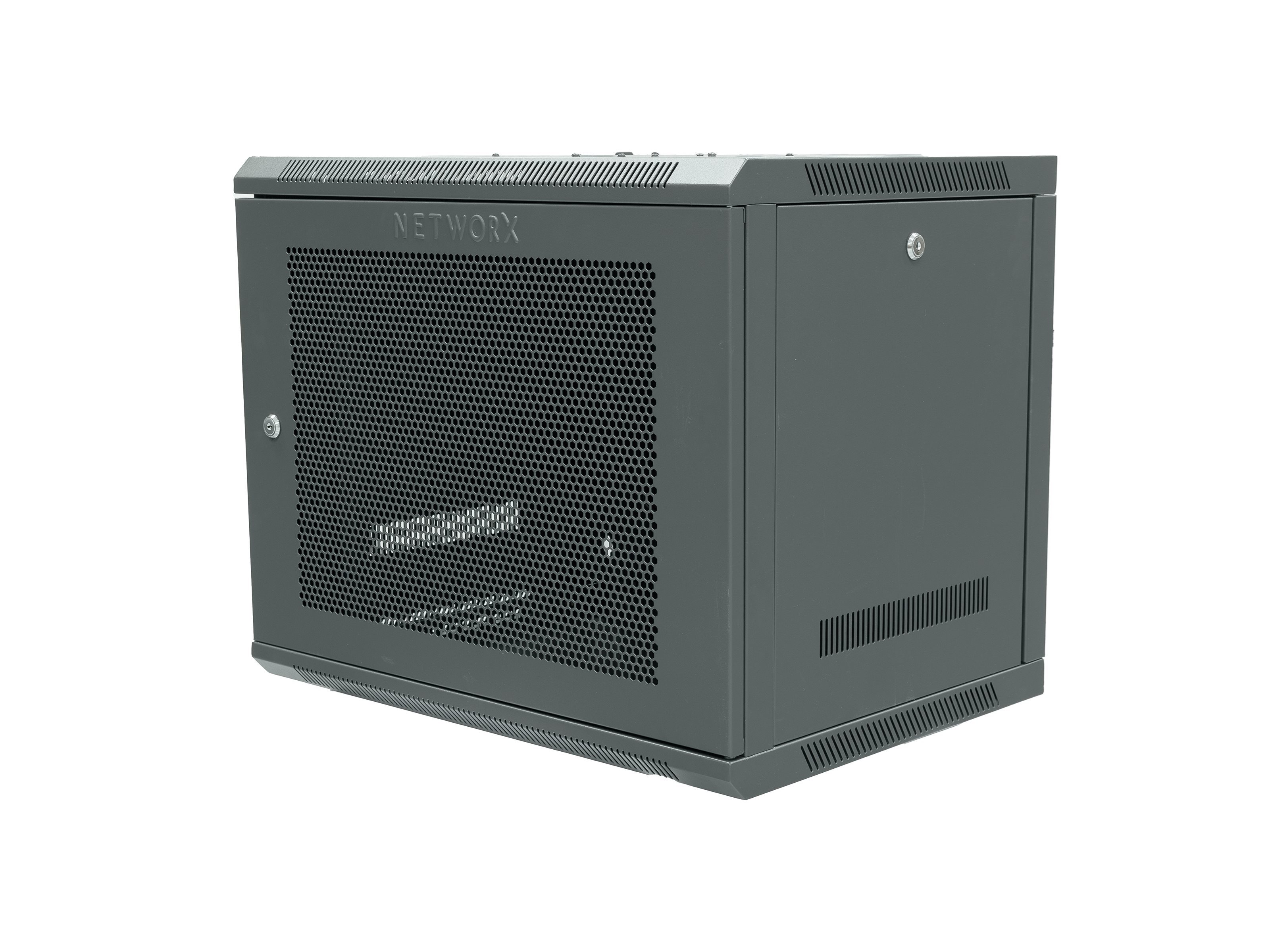

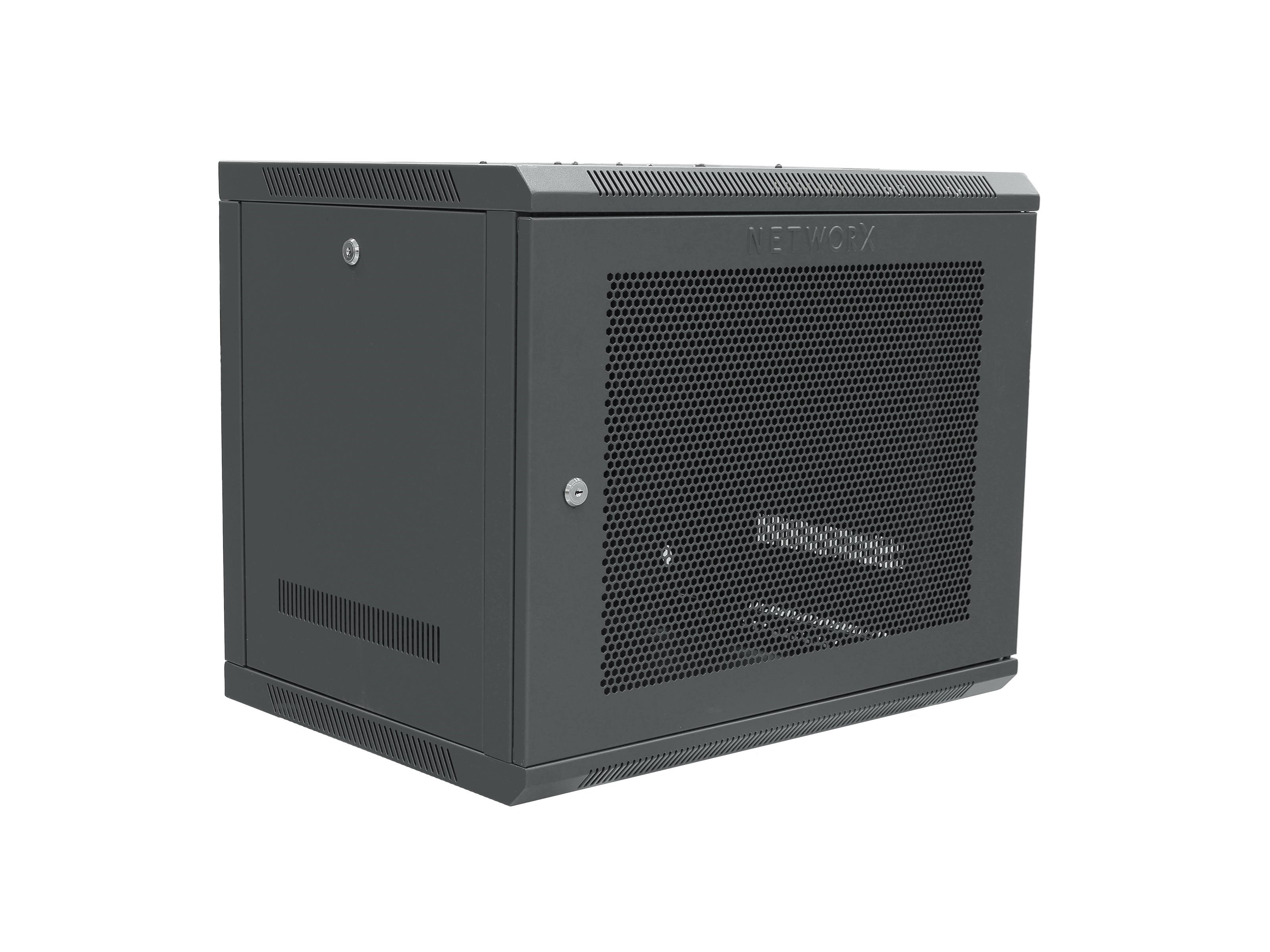

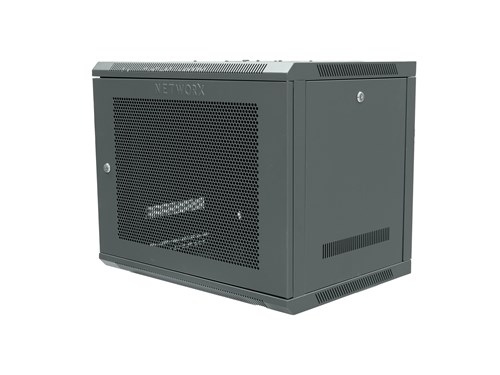

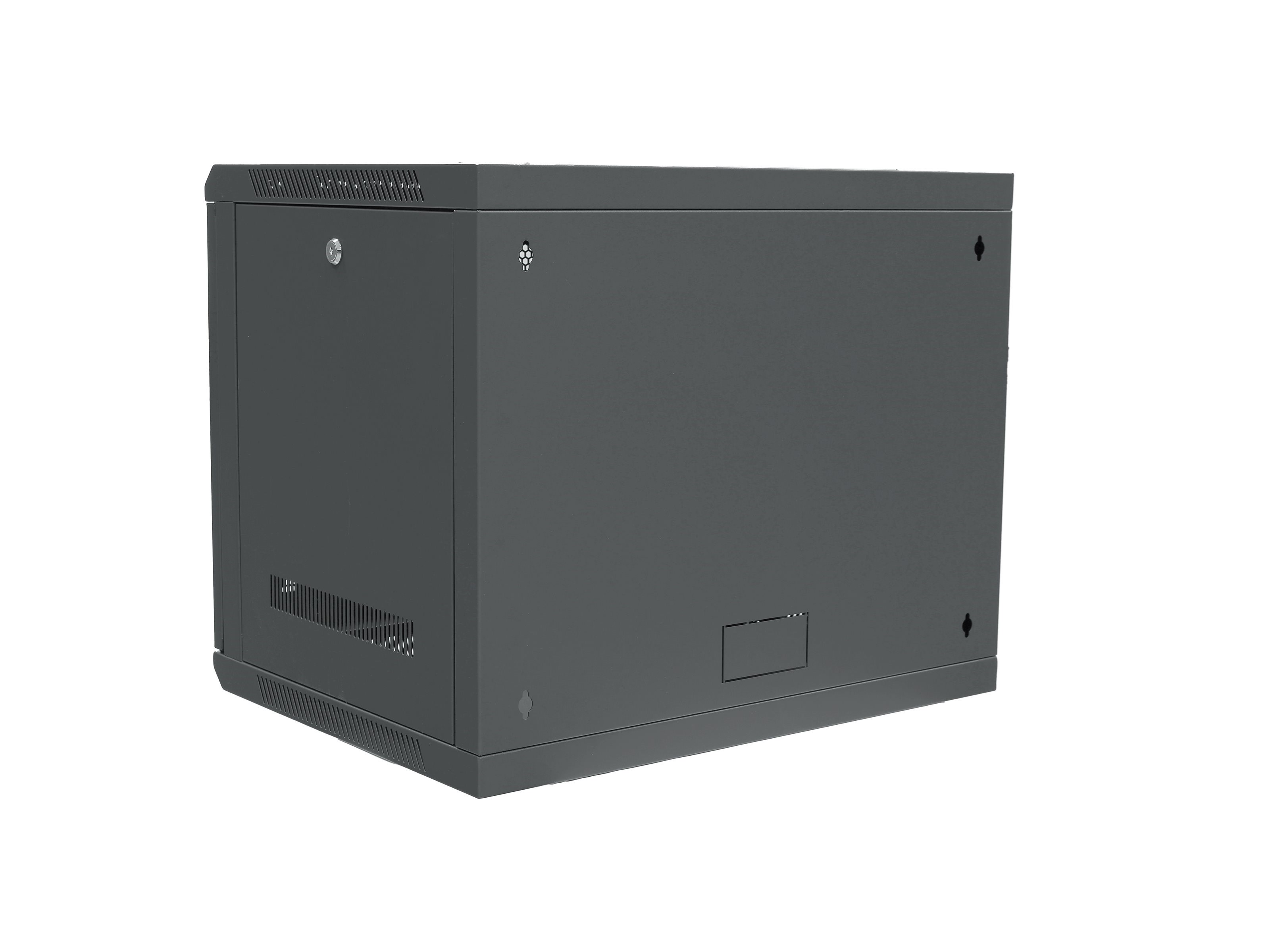

9U Wall Mount Cabinet - 102 Series, 18 Inches Deep, Flat Packed

by Networx®
Get organized with the 9U 102 Series of Wall Mount Cabinets from Networx®... read more
SKU: WMC-S102-9U
Manufacturer: Networx®
RMU Options:
RMU 6U 6U
RMU 9U 9U
RMU 12U 12U RMU 15U 15U RMU 18U 18U
In stock
$152.11
Volume Discounts
Quantity 2+ 10+ 25+
Price $149.06 $146.02 $142.98
Description

Get organized with the 9U 102 Series of Wall Mount Cabinets from Networx®. This cabinet comes equipped with some of the most requested features. Starting with the basics, this Wall Mount Cabinet is constructed with high quality SPCC Cold-Rolled Steel Panels. All Networx® Wall Mount Cabinets come with removable side panels, which include vents to keep equipment cool, to allow for quick access to sensitive networking equipment. All front panels swing out for easy access to loaded network equipment and include a mesh design for extra airflow. Included with this high quality Wall Mount Cabinet is a single 120mm fan for ideal air movement to keep network equipment cool and running at peak performance. Adjustable rails allow for full customization to allow a variety of networking equipment to fit securely. The rails are punched to allow for the installation of M6 Cage Nuts. Both Side Panels and Front Door are lockable with the included set of keys. Top/Bottom/Rear knockouts for cable entry and exit. All racks are designed to house 19" rack mountable equipment.

  • 12 M6 Cage Nuts
  • 4 Lag Bolts for Wall Mounting
  • 9U Rack Mount Units
  • External Dimensions: Height 20" x Width 24" x Depth 18"
  • Designed for equipment with a 19" mounting profile
  • Vented Top/Sides/Front Panels for adequate airflow
  • Reversible front door with tempered glass window
  • Removable side panels for easy access to equipment
  • Front and Side Panels are lockable with included set of keys
  • Top/Bottom/Real Knockouts for easy cable entry and exit
  • Supports up to 130lbs when secured properly
  • Flat Packed - Assembly Required
Related Videos
Networx® Wall Mount Cabinet Assembly Video Networx® Wall Mount Cabinet Assembly Video
How to mount a Wall Mount Cabinet How to mount a Wall Mount Cabinet
Reviews
5 star (1)
100%
4 star (0)
0%
3 star (0)
0%
2 star (0)
0%
1 star (0)
0%
Overall rating 5.0
Based on 1 reviews
Outstanding Cabinet
Very happy with this highly flexible and well built cabinet.
Was this review helpful? Yes (0/0)
Read all 1 reviews
Products specifications
Preinstalled 80CFM 110V Fans 1
Key Lock Set (2 Keys per Set) 1 Set
Load Capacity 130 lbs
Rack Size Depth (Internal) 18" (14")
Internal Mounting Format 19"
Rack Height (Assembled) 19.8 Inch
Rack Size Width (Internal) 24" (19")
RMU 9U
Color Black
Delivery Style Flat Packed
Cage Nut Rails Front & Rear
Manufacturer Networx®
Hinged Swing Out Design No
Vented Side Panels Removable
Structure & Fabrication SPCC Cold-Rolled Steel Sheets
Door Style Steel Hexagonal Mesh
Locking Side Panels Yes
Reinforced Door Frame Yes
SKU WMC-S102-9U
Weight (Lbs) 35.15
