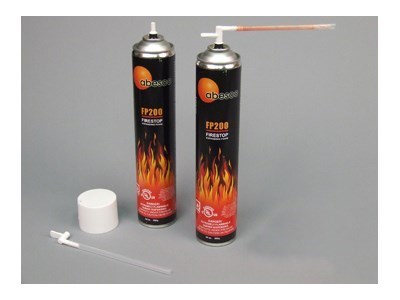

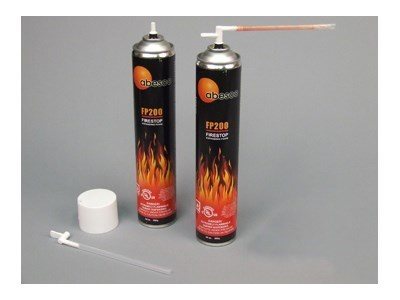

24oz Fire Rated Expanding Foam Can

by Abesco
Size: 24 oz.
24 oz.
Abesco FP200 FR Expanding Foam is a single pack Fire Rated polyurethane expanding foam, and is designed to prevent the spread of fire and smoke from one compartment to another through gaps and voids through fire rated walls or floors... read more
SKU: 20424
GTIN: 00881683204240
Manufacturer: Abesco
In stock
$28.57
Description

Abesco FP200 FR Expanding Foam is a single pack Fire Rated polyurethane expanding foam, and is designed to prevent the spread of fire and smoke from one compartment to another through gaps and voids through fire rated walls or floors. Made to fill gaps, small openings, and crevices in and around fire rated walls and floors, the Abesco® FP200 uses polyurethane expanding foam which prohibits fire and smoke from spreading. Aside from great fire protection, the Abesco fire rated foam offers an impressive insulation seal when working with wood, brick, aluminum, concrete, and steel. One 24oz. (1) can covers approximately one (1) cubic Foot area. Abesco FP200 FR Expanding Foam is suitable for use in most buildings where a seal is required for through penetrations in fire rated floors and walls. Typical types of buildings FP200 FR Expanding Foam is commonly used are hotels, condominiums, office and commercial buildings, hospitals, industrial buildings, etc. Abesco FP200 FR Expanding Foam has been tested in various countries in accordance with the methodology and criteria described in ASTM E814 / UL 1479 (1 & 2 Hr), ASTM E-84 (Flame 10, Smoke 35), ASTM E-662, ASTM E-162, BS 476- 20 (up to 4 Hr), and EN 1366-3 (up to 4 Hr).

  • Extremely versatile solution
  • CFC free
  • Excellent fill capabilities
  • Very easy to install and finish
  • Excellent smoke and draft seal capabilities
  • Sound dampening properties
  • Paintable and stainable
  • Easily trimmed after curing
  • Excellent adhesion to most building substrates
  • Unaffected by moisture or humidity when cured
  • Cures to provide a strong semi-regid seal
Products specifications
Application Temperature Min 41F (5C) Surface 68-77F (20C-25C)
Cure Time 20-25 mins 1.5″ Dia (38mm)*
Dielectric Constant (Relative Static Permittivity) 1.2 R 7/inch (2.54 cm)
Elongation at Break 15 – 20%
Flame and Smoke Index 10 & 35, Class A rating
Flammability Class B1 according to DIN4102 part 1
Free Expansion 1.2
Hardening Time 1.5 – 2 hrs*
Size 24 oz.
Specific Gravity 22-26 kg/m3
STC 38
Storage 50F to 68F (10C to 20C)
Tack Free Time 5-10 mins*
Temp. Resistance -40F to 194F (-40C to 90C)
Tensile Strength 0,071 – 0,076 MPa
VOC 186.1 g/L in can, less than 2 g/L cured (10+ days)
Water Absorption Max 1% volume
SKU 20424
GTIN 00881683204240
Weight (Lbs) 2.00
