Description

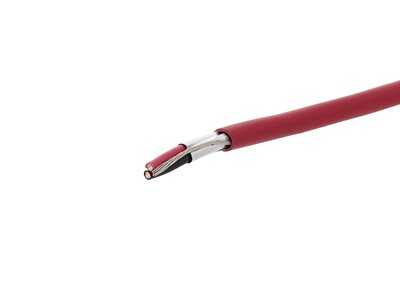

DESCRIPTION: 18 AWG 2 conductor shielded fire alarm cable Nom. O.D. (in.)
CONSTRUCTION:
Conductors: 18 AWG solid bare copper
Insulation: 0.0069” nominal wall Plenum PVC Core
Assembly: 2 conductors cabled together with a LHL (4.8 Twists per foot, Nominal Value Only)
Shield: Aluminum/polyester tape helically applied with the foil side out
Drain Wire: 24 AWG 7/30 tinned copper helically applied over the foil shield
Jacket: 0.014” nominal wall Red Plenum PVC .139 Parallel rip cord located under jacket.
COLOR CODE: Black, Red
SPECIFICATIONS:
UL 1424, Power-Limited Fire Alarm Circuit Cables
UL 13 Power Limited Circuit Cable
UL 444 Communication Cables
NFPA 262, Plenum Flame Test (UL 910)
NEC Article 760, 725 and 800
CERTIFICATIONS:
UL Listed Type FPLP/CL3P/CMP
C(UL)US CMP
California State Fire Marshal Approved
ELECTRICAL CHARACTERISTICS: Capacitance: 71 pF/ft nominal @ 1 KHz conductor – conductor 135 pF/ft nominal @ 1 KHz conductor - ground DC Res: 6.78 ohms/Kft max @ 20C
SURFACE PRINT: E111271▫(01-12345)▫18▫AWG▫SHIELDED▫FPLP/CL3P▫(UL)▫ OR▫CMP▫C(UL)US▫▫▫▫ROHS▫▫▫▫000002 Sequential footage markers every 2 feet
