VGA Video/Audio Extender (over Network)

by ATEN
The VE200 Audio/Video Extender System allows you to extend the distance between the computer system unit and the display monitor by up to 150m/490ft for video resolutions of 1600 x 1200 @ 60Hz. Read More
Manufacturer 3 Year

This product is covered under a 3 Year Manufacturer Warranty. Please contact the manufacturer for more details regarding product replacement. Terms and Conditions apply, click here for more info.

SKU: VE200
$400.00

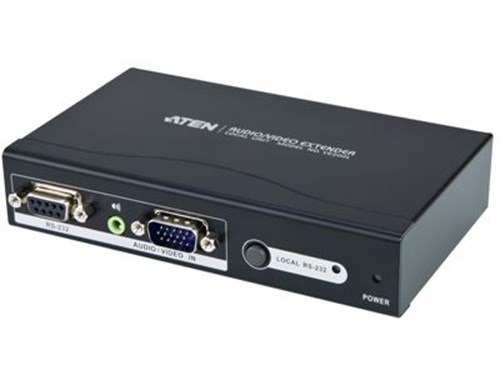

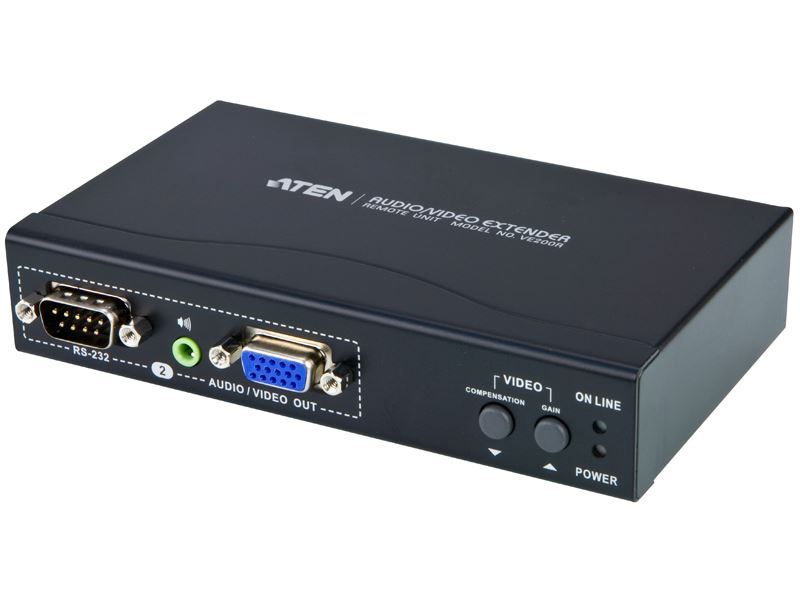

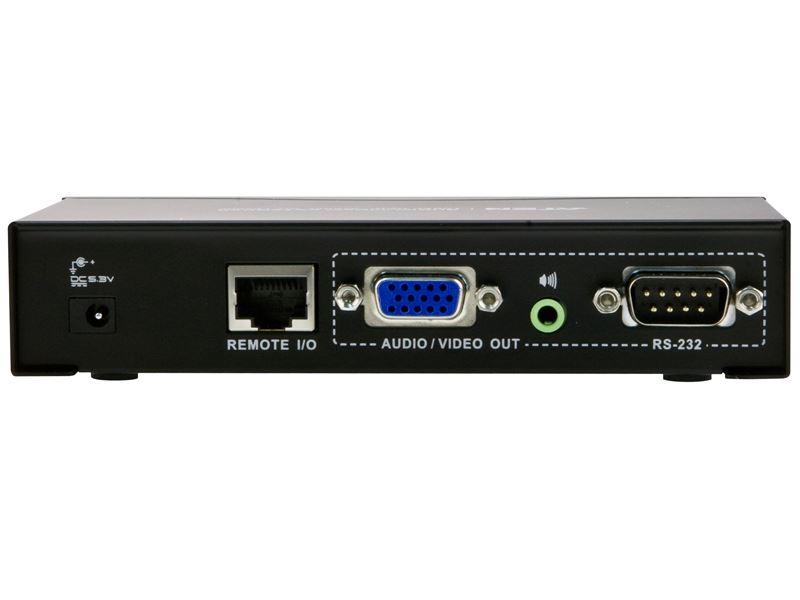

The VE200 Audio/Video Extender System allows you to extend the distance between the computer system unit and the display monitor by up to 150m/490ft for video resolutions of 1600 x 1200 @ 60Hz. It accomplishes this by means of a local transmitting unit (VE200L), and a remote receiving unit (VE200R), connected by Cat 5e twisted pair cable. The VE200 Audio/Video Extender System is ideal for installations where the display needs to reside in public view, but the system equipment can be safely tucked away. The Extender System is also useful for control and security purposes, where you can have the system unit in a secure area while the display is located in an area that is convenient for viewing. The VE200 also incorporates an RS232 port to connect serial devices such as touch screens. For added distance,  the VE200 may be connected to two ATEN VB522s  for a total distance of 1470

  • Uses Cat 5e cable to extend audio/video signal
  • Extends the transmission range an extra 150m
  • High-quality video - up to 1600 x 1200 @ 60Hz at 150 m
  • Audio and serial enabled
  • Two gain control modes for sharpest picture quality
  • Video gain and compensation adjustable via OSD
  • IR receiver for quick and easy video quality adjustment
  • IR remote control for screen on/off and video adjustment at remote site
  • Provides two RS-232 channels for selection
  • Follows VESA FDMI mount standard
  • Supports DDC for the local monitor
  • Supports VGA, SVGA, XGA, SXGA, UXGA and multisync monitors
  • For use in combination with VS1504/VS1508 Audio/ Video splitter
Products specifications
ManufacturerATEN
WarrantyManufacturer 3 Year
GTIN672792398162
Weight (Lbs)1.75
