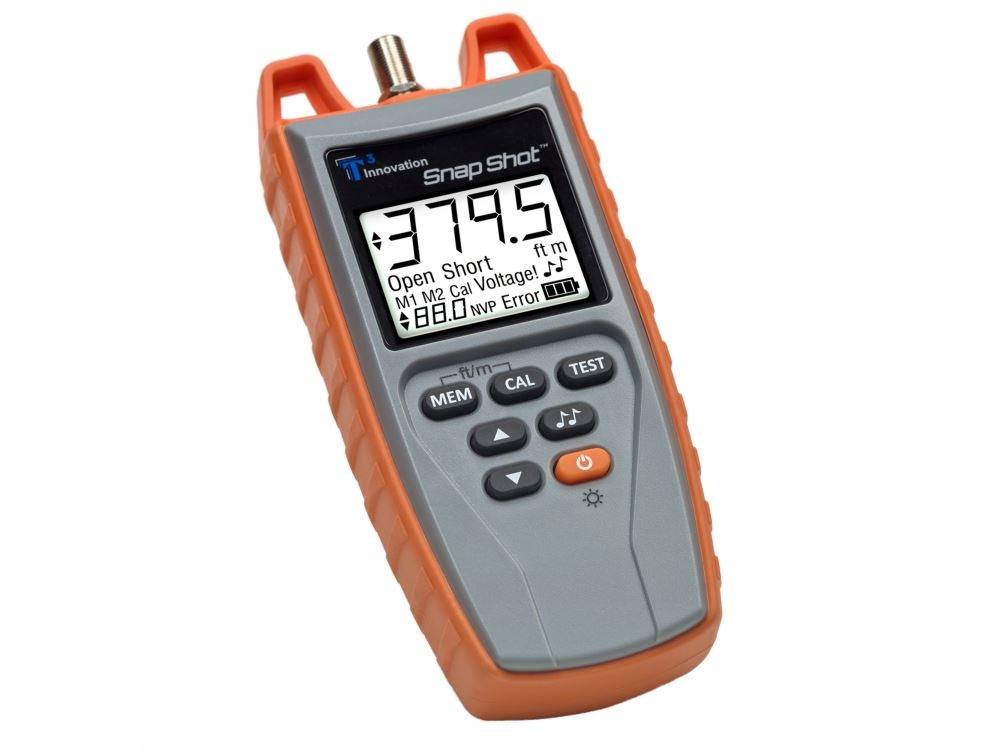

Snap Shot™ Cable Fault Finder, Cable Length Measurement, TDR

by Platinum Tools®
When you need to accurately find the length of any cable; a short, a break or an open fault in a very long cable; a cable that is buried or a cable that is energized, look no further than the Snap Shot. Read More
SKU: TSS200
Availability: In stock
$214.15

When you need to accurately find the length of any cable; a short, a break or an open fault in a very long cable; a cable that is buried or a cable that is energized, look no further than the Snap Shot. With Advanced Spread Spectrum TDR (SSTDR) technology the Snap Shot works in all wire environments and is immune to voltage, current or data stream disruptions. Measure cable lengths and faults up to 3000 feet in environments where electrical noise, current and power can render your other testers ineffective or inaccurate. See the true picture of your wiring and cable systems with Snap Shot™ today.

  • Finds cable length or distance to fault from one end up to 3000 feet
  • Easily measures cable distance on spool
  • Accuracy of 1% or better
  • Calibrates custom NVP values for any cable
  • Internal memory for storing most used NVP values
  • Large backlit LCD display
  • Built-in tone generator for cable tracing & identification
  • Loop test for continuous testing
  • Displays length reading in feet or meters
  • Auto-off to preserve battery life



Application:

Types of applications:
- CCTV installations
- Solar power installations
- Aircraft or naval data communications
- HVAC controls
- Data Centers
- Under ground cabling
- Event venues

  • Holds up to two different NVP values for multiple cable tests
  • Tests length, opens or shorts present on the cable, up to 3,000 ft
  • Produces four different tones for locating cables
  • Ability to calibrate NVP for any cable
Products specifications
Altittude10,000ft maximum
Battery Low LevelApproximately 4 volts
Common Cable Length RangesCoaxial Cable - 0 to 2,000 feet
Dimensions6.8" x 3.15" x 1.3"
FeaturesActive: 15 hours, Data Cable - 0 to 1,500 feet, Electrical Cable - 0 to 1,000 feet, Storage temperature: -4°F to 140°F (-20°C to 60°C)
Humidity10% to 90%, non-condensing
Input ProtectionTo 400 volts peak 50/60 Hz AC or DC
Maximum Length3000ft on cables with low attenuation
Measurement MethodSpread Spectrum Time Domain Refectometry (SSTDR)
NVP (VOP) Range20.0 to 99.9%
NVP Accuracy Range±1% with known NVP and consistent cable parameters
Operating EnvironmentOperating temperature: 32°F to 122°F (0°C to 50°C)
PowerStandby: 4 years
Tone Generation4 selectable tone cadences centered on 1 kHz
Voltage WarningAt maximum of safety extra low voltage limits
GTIN849160004653
Weight (Lbs)1.11
AvailabilityIn stock
