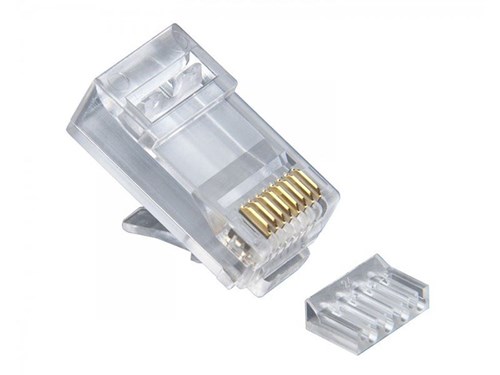

RJ45 (8P8C), Cat6 2 pcRound-Solid 3-Prong, w/Liner100/Jar

by Platinum Tools®
This 2 piece system makes terminating CAT6 quick & easy. The staggered loading bar acts as the stopping point for pair separation and maintains wiring configuration. Simply flush cut the conductors and slide assembly into the connector and terminate... read more
SKU: 106188J
GTIN: 849160006794
Manufacturer: Platinum Tools®
In stock
$43.10
Description

This 2 piece system makes terminating CAT6 quick & easy. The staggered loading bar acts as the stopping point for pair separation and maintains wiring configuration. Simply flush cut the conductors and slide assembly into the connector and terminate.

  • Eight conductor mod plug with loading bar
  • Liner Bar Part No.: 1041
  • For conductors with an O.D. Range of .040
  • Uses 0.30mm (.012
  • 3 prong contact for solid conductors only
  • Max cable jacket O.D., .280
  • RoHS & UL Compliant
Products specifications
Conductor Eight conductor mod plug with loading bar
Design 3 prong contact for solid conductors only
Dimensions 1.8" x 3.5" x 5.5"
Max Cable Jacket O.D. 0.285"
O.D. Range 0.044"
Primary Use 0.012" (0.3mm)
RoHS and UL Compliant Yes
Manufacturer Platinum Tools®
Package Quantity 100
SKU 106188J
GTIN 849160006794
Weight (Lbs) 0.40
