Remote Manangement PCI Card (Remote KVM and Power)

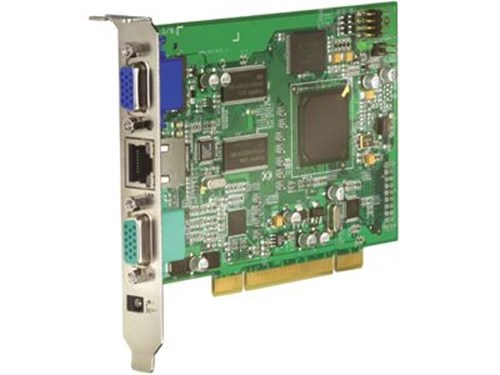

The IP8000 is a PCI card implementation of a control unit that provides "over-IP" access and control of the server it is installed in. The IP8000 allows multi-platform access and control of the server from remote locations using a standard Internet browser or with stand-alone Windows and Java applications.

• Standard PCI-sized card provides over-IP access and control of a remote server from anywhere in the world
• Virtual media via USB 2.0 data transmission
• Remote power control and reset support
• Up to 64 user accounts - Up to 32 concurrent user logins for single-bus sharing
• Message board feature allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
• External authentication support: RADIUS; LDAP; LDAPS; MS Active Directory
• Web-based Windows and Java implementations allow the server to be controlled from any browser
• Windows GUI and Java client software for non-browser access - the Java client works with practically all operating systems
• Supports TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP
• Supports 10Base-T, 100Base-T
• Superior video resolution up to 1600 x 1200 @ 60Hz; 24-bit color depth for remote sessions
• Bandwidth optimization via grayscale and video quality setting
• Advanced security features include password protection and advanced encryption technologies
• Secure 128-bit SSL encryption
• Enable/disable browser operation
• Three level authentication - Multi - Administrators, Users, Viewers
• Event logging
• Remote firmware upgrading
• Host-side OS support - Windows 2000/2003/XP/NT/Vista/Redhat 7.1 and above; FreeBSD, Novell
