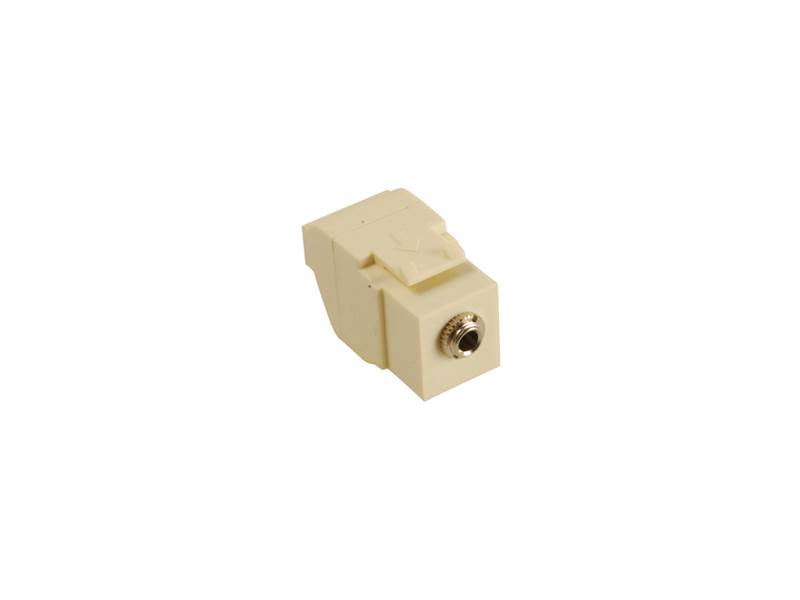

ICC's 3.5mm (1/8") keystone modular connector allows users to connect to headphone, microphone, infrared repeater devices, sound cards, and mp3 players from remote locations. The keystone insert may be used in two or three conductor applications. Rear push-pin design allows for simple, fast connections to UTP cable or any 22-24AWG wire. This device is intended to provide easy installation of female 3.5mm modular connector into any ICC's wall plates and Decorex inserts.
1. Material:A. Connector body: Phosphor bronzeB. Plating: NickelC. Housing: ABS2. Electrical:A. Rating: DC 50V 0.5AB. Contact resistance: 50M Ohm max.C. Insulation resistance: 100m Ohm min.D. Insertion force: 0.3Kgf ~ 3KgfE. Extraction force: 0.3Kfg ~ 3Kfg3. Color:XX: AL-Almond, BL-Black, IV-Ivory, WH-White
- Connect to headphone, microphone, infrared repeater devices, sound cards, amd MP3 player from remote locations
- Fast fingertip insertion
- Capable of UTP wiring in size of 22~24 AWG for simple connection
- Works with all ICC faceplates, Decorex inserts, surface mount boxes, and blank patch panels
