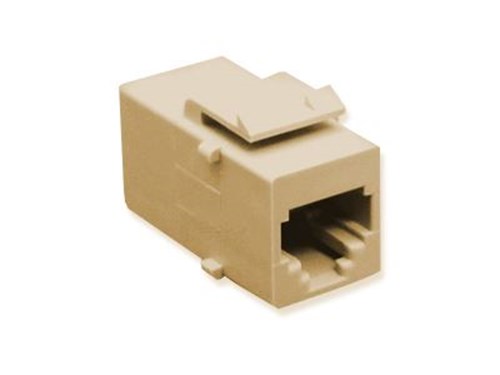

Module Coupler Rj-11 Pin 1-1 Ivory

The feedthrough in-line coupler modules are 6-position 6-conductor (6P6C), Category 3 (CAT 3), connect two modular cords; Pin 1 to Pin 1.
1. ELECTRICAL:CURRENT RATING: 1.5 AMPS MAXVOLTAGE RATING: 150 VOLTS ALTERNATINGDIELECTRIC WITHSTANDING VOLTAGE: 1000 VOLTS RMS, 60 HZINSULATION RESISTANCE: > 10 MOHMS2. MECHANICAL:MATING FORCE: 5 LBS MAXUNMATING FORCE: 5 LBS MAXPLUG RETENTION IN JACK: 20 LBS MINDURABILITY: 750 CYCLES3. MATERIAL&FINISH:HOUSING: ABS, UL 94V-0COLOR: BK-BLACK, GY-GRAY, IV-IVORY,&WH-WHITECONTACT: PHOSPHOR BRONZE GOLD PLATING OVER 100 MICRO INCH NICKLEGOLD PLATING: 1.27 MICRON/50 MICRO INCH MIN

• Provides pin 1-1 RJ-11 voice coupling
• Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
• Compatible with all IC107 faceplates, inserts, surface mount boxes, and blank patch panels
• Compatible with all IC108 furniture faceplates, bezels, and surface mount boxes
• Used with ICC ICLC2, ICLC4, and ICLC6 line cords
• Available in black, gray, ivory, and white
• UL listed
