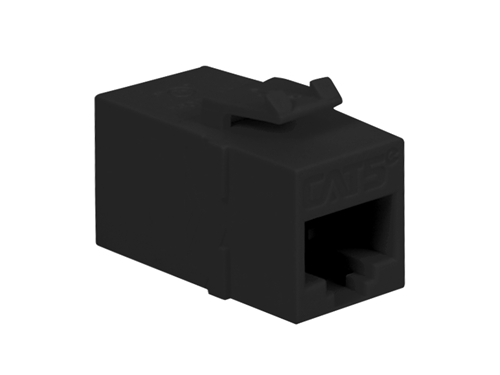

Module Coupler Cat 5e Black

by ICC
ICC Category 5e feed through in-line coupler is an 8-position 8-conductor RJ-45 module that has been tested to ensure that it surpasses Category 5e specifications without degradation in performance. Compatible with ICC faceplates and blank patch panels... read more
SKU: IC107C5EBK
GTIN: 633758015059
Manufacturer: ICC
$3.81
Description

ICC Category 5e feed through in-line coupler is an 8-position 8-conductor RJ-45 module that has been tested to ensure that it surpasses Category 5e specifications without degradation in performance. Compatible with ICC faceplates and blank patch panels.
1. ELECTRICAL: CURRENT RATING: 1.5 AMPS MAX VOLTAGE RATING: 150 VOLTS ALTERNATING DIELECTRIC WITHSTANDING VOLTAGE: 1000 VOLTS RMS, 60 HZ INSULATION RESISTANCE: > 10 MOHMS 2. MECHANICAL: MATING FORCE: 5 LBS MAX UNMATING FORCE: 5 LBS MAX PLUG RETENTION IN JACK: 20 LBS MIN DURABILITY: 750 CYCLES 3. MATERIAL&FINISH: HOUSING: ABS, UL 94V-0 COLOR: BK-BLACK CONTACT: PHOSPHOR BRONZE GOLD PLATING OVER 100 MICRO INCH NICKLE GOLD PLATING: 1.27 MICRON/50 MICRO INCH MIN

  • PCB technology provides maximum performance and superior signal quality
  • Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
  • Exceeds ANSI/TIA/EIA-568-B.2 Category 5e connecting hardware requirements
  • Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
  • Backwards compatible to all lower rated category components
  • Compatible with all IC107 faceplates, inserts, surface mount boxes, and blank patch panels
  • Compatible with all IC108 furniture faceplates, bezels, and surface mount boxes
  • Used with ICC Category 5e ICPCS5 and ICPCS9 series patch cords
  • Available in black
  • UL listed
Customer Reviews
5 star (1)
100%
4 star (0)
0%
3 star (0)
0%
2 star (0)
0%
1 star (0)
0%
Overall rating 5.0
Based on 1 reviews
Very good coupler, comes in hnady in many places
Very good coupler, comes in hnady in many places. I wish there were a larger selection of blank panels available, different numbers and sizes, etc. - Martin P. - NY, US
Read all 1 reviews
Products specifications
Manufacturer ICC
Color Black
Cable Type Cat5e
SKU IC107C5EBK
GTIN 633758015059
Weight (Lbs) 0.02
