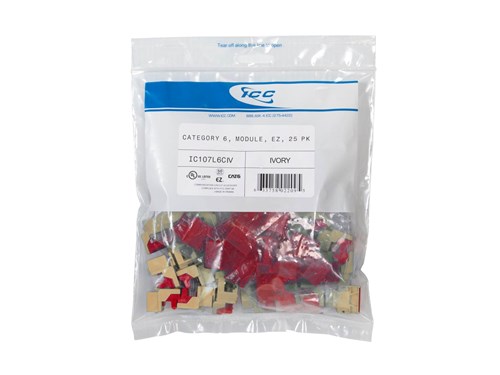

Module Cat 6 Ez 25 Pk Ivory

by ICC
The 25-pack Category 6 modular connectors, RJ-45 keystone jacks, are 8-position 8-conductor (8P8C) and are packaged in bags with a reseal able strip allowing the bags to be reused multiple times preventing loss or mixing of colors or types of connectors. Read More
SKU: IC107L6CIV
$70.24
The 25-pack Category 6 modular connectors, RJ-45 keystone jacks, are 8-position 8-conductor (8P8C) and are packaged in bags with a reseal able strip allowing the bags to be reused multiple times preventing loss or mixing of colors or types of connectors. The bags have a clear lower area allowing for easy part identification.
1. CAT 6 Module: A. Electrical: Current rating: 1.5 amps Insulation resistance: 500 mohms min. Contact resistance: 20 mohms max. DC resistance: 0.1 ohm max. Transmission performance exceeds Category 6 connecting hardware requirements specified in TIA/EIA-568-B.2-1 when used with compatible horizontal cable B. Mechanical: Plug insertion life: 750 cycles min. Plug and jack contact force: 100 grams min. using FCC approved plug Plug retention force: 30 lbs min. Temperature: -40o to 150o F (-40o to 68o C) C. Physicals: Housing: ABS, UL 94V-0 Jack wiring: 50 micro inches of gold over 100 inches of nickel Connector: insulation displacement connector (IDC); accepts 23~24 AWG solid wire D: Colors: XX: BL-Blue, GN-Green, IV-Ivory, WH-White, YL-Yellow 2. Termination cap: A. Material: PC, UL 94V-0 B.Color: Clear

  • CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
  • PCB technology provides maximum performance and superior signal quality
  • Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
  • Exceeds ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements
  • Designed with in-line 110 IDC, in-sequence termination reducing termination time
  • Terminate with 110 punch down tool ICACSPDT00
  • One piece termination cap allows for a quick and easy termination
  • Includes an integrated TIA-568A/B color wiring diagram
  • Backwards compatible to all lower rated category components
  • Compatible with all ICC configurable faceplates, inserts, surface mount boxes, and blank patch panels
  • Compatible with all ICC furniture faceplates, Elite bezels, and Elite surface mount boxes
  • Used with ICC Category 6 patch cords
  • Available in blue, green, ivory, white, and yellow
  • Installation instructions included
  • UL listed
Products specifications
ManufacturerICC
ColorIvory
GTIN633758022101
Weight (Lbs)0.47
