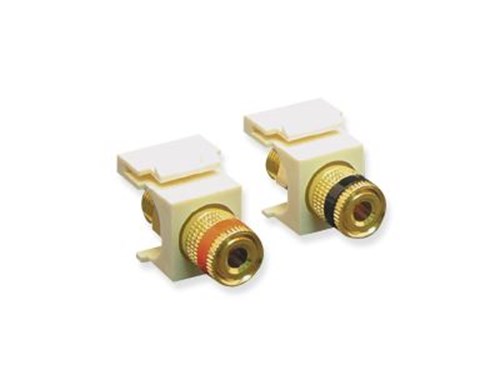

Gold Plated Binding Post Pair - 1 Red 1 Black - Almond

by ICC
Gold plated binding post utilizes a screw clamp installation in the rear and come in pairs, 1 red and 1 black. Read More
SKU: IC107PMGAL
Discontinued

Gold plated binding post utilizes a screw clamp installation in the rear and come in pairs, 1 red and 1 black.
1. HOUSING:MATERIAL: ABS, UL 94V-0COLOR: XX: AL-ALMOND, BK-BLACK, IV-IVORY,&WH-WHITE2. BINDING POST:MATERIAL: BRASS WITH 3 MICRON GOLD PLATINGPOLARITY BAND COLOR: 1 BLACK, 1 RED3. ELECTRICAL:DIELECTRIC WITHSTANDING VOLTAGE: 1000V RMS AT 60 HZ FOR ONE MINUTEDC BULK RESISTANCE: 20m OHM MAX

  • Gold plating for optimum connection quality and exceptional performance
  • Binding posts accept up to 8 AWG multi-stranded audio wire or banana plugs to allow ample current flow to high wattage speakers providing superior fidelity sound
  • Easy installation with a set-screw connection for incoming up to 8 AWG audio cable on the rear side
  • Angled front and rear wire inserts for easy speaker wire termniation
  • Supplied as a pair with red and black bands for easy polarity identification
  • Provides a clean and neat appearance installation
  • Compatible with all IC107 faceplates, inserts, surface mount boxes, and blank patch panels
  • Compatible with all IC108 furniture faceplates, bezels, and surface mount boxes
  • Available in almond, black, ivory, and white
  • UL listed
Products specifications
Manufacturer ICC
Color Almond
Style Feed Through
GTIN 633758016100
Weight (Lbs) 0.08
