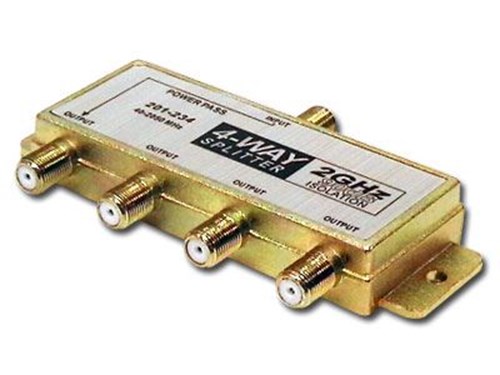

Coaxial Splitter - Satellite F-Type - 4 Way - 2GHz 90dB

Coaxial Splitter - Satellite F-Type - 4 Way - 2GHz 90dB from Computer Cable Store™. This 4-Way 2GHz 90dB F Splitter is suitable for Satellite TV (SATV) applications or any RF distribution from 40 to 2050 MHz at a frequency of 75-Ohms. DC Power-Passive to one port. Read More
SKU: 9-F4W2GHZ
Availability: Out of stock
Discontinued

Coaxial Splitter - Satellite F-Type - 4 Way - 2GHz 90dB. This 4-Way 2GHz 90dB F Splitter is suitable for Satellite TV (SATV) applications or any RF distribution from 40 to 2050 MHz at a frequency of 75-Ohms. These Splitters have an anti-corrosion Chromate Zinc-Alloy die cast housing and high performance printed-board circuitry to ensure maximum quality. This Splitter also has an epoxy sealed back cover and is DC Power-Passive to one port.

  • 4 Way SATV F Splitter - 2 GHz
  • DC Power-Passive to One Port
  • Insertion Loss 6.6-9dB max
  • Port-Port Isolation 11-23dB min
  • Input Return Loss 12-15dB min
  • 90dB minimum RFI Shielding
  • High Performance Printed-Board Circuitry
  • Anti-Corrosion Chromate Zinc-Alloy Die Cast Housing
  • Mounting Screws Included
  • Digital Ready
Products specifications
Connector A F-Type Female
Connector B F-Type Female
Frequency Range 5-2000 MHz
Color Silver
Output 4 Port
Input 1 Port
Weight (Lbs) 0.20
Availability In stock
