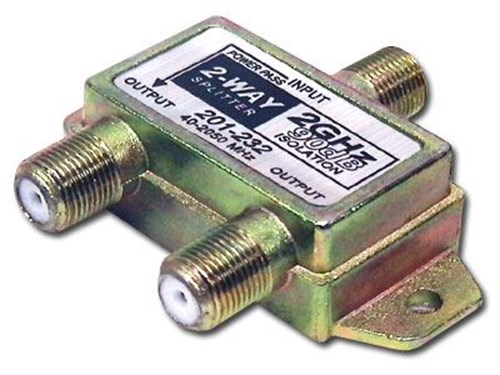

Coaxial Splitter - Satellite F-Type - 2 Way - 2GHz 90dB DC-Passive. This 2-Way 2GHz 90dB Satellite F Splitter is suitable for Satellite TV (SATV) applications or any RF distribution from 40 to 2050 MHz at a high frequency of 75-Ohms. These Splitters have an anti-corrosion Chromate Zinc-Alloy die cast housing and high performance printed-board circuitry to ensure maximum quality. This Splitter also has an epoxy sealed back cover and is DC power passive to 1 port.
- 2 Way Satellite F Splitter - 2 GHz
- Power-Passive to 1 Port
- Insertion Loss 4-4.5dB max
- Port-Port Isolation 12-15dB min
- Input Return Loss 12-15dB min
- 90dB minimum RFI Shielding
- High Performance Printed-Board Circuitry
- Anti-Corrosion Chromate Zinc-Alloy Die Cast Housing
- Mounting Screws Included
- Digital Ready
