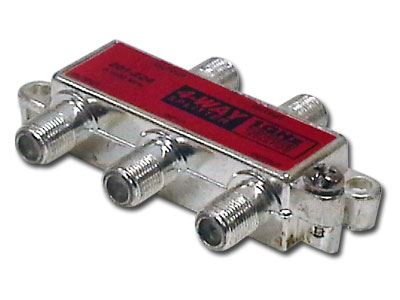

Coaxial Splitter - CATV F-Type - 4 Way - 1GHz 130dB

Coaxial Splitter - CATV F-Type - 4 Way - 1GHz 130dB from Computer Cable Store™. This 4-Way 1GHz 130dB F Splitter is suitable for Cable TV (CATV) or antennae applications or any RF distribution from 5 to 1000 MHz at a frequency of 75-Ohms. These Splitters have an anti-corrosion Silver plated Zinc-Alloy... read more
SKU: 9-F4W1GHZ

Clearance Sale - Limited Inventory Available

22 in stock
$1.90
$2.17 (12% off)
Volume Discounts
Quantity 10+ 50+
Price $1.86 $1.82
Description

Coaxial Splitter - CATV F-Type - 4 Way - 1GHz 130dB. This 4-Way 1GHz 130dB F Splitter is suitable for Cable TV (CATV) or antennae applications or any RF distribution from 5 to 1000 MHz at a frequency of 75-Ohms. These Splitters have an anti-corrosion Tin plated Zinc-Alloy die cast housing and high performance printed-board circuitry to ensure maximum quality. This Splitter also has a soldered back cover.

  • 4 Way F Splitter - 1 GHz
  • Insertion Loss 7.0-8.2dB max
  • Port-Port Isolation 20-25dB min
  • Input Return Loss 15-18dB min
  • 130dB minimum RFI Shielding
  • High Performance Printed-Board Circuitry
  • Anti-Corrosion Tin-Plated Zinc-Alloy Die Cast Housing
  • Mounting Screws Included
  • Digital Ready
Products specifications
Connector A F-Type Female
Connector B F-Type Female
Frequency Range 5-1000 MHz
Color Silver
Output 4 Port
Input 1 Port
SKU 9-F4W1GHZ
Weight (Lbs) 0.20
